prysmian underground optical fibre cable price per meter
prysmian underground optical fibre cable price per meter
prysmian underground optical fibre cable price per meter
prysmian underground optical fibre cable price per meter
prysmian underground optical fibre cable price per meter
prysmian underground optical fibre cable price per meter
prysmian underground optical fibre cable price per meter
prysmian underground optical fibre cable price per meter
prysmian underground optical fibre cable price per meter

prysmian underground optical fibre cable price per meter

Payment Type:L/C,T/T,Paypal
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery
Min. Order:1 Kilometer
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.GYTY53

BrandOEM

Place Of OriginChina

Number Of Cores≥ 10

Armored Typeconrrugage steel armored

SheathHDPE/MDPE/LDPE/PE

Filling Gelwater resistant compound

Material Of JacketPE, double jacket

Fiber Count2~288 cores

Outer Diameter13.0~18.8mm

Fiber TypeG652D G657A

StandardIEC 60794-1 YD/T901-2009

ApplicationDirect burial duct fiber optic cable

CertificationISO9001, TLC, CE, Anatel

Packaging & Delivery
Selling Units: Kilometer
Package Type: Iron-wooden drum or fumigated wooden drum,normal wooden drum
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Product description/ PRODUCT

prysmian underground optical fibre optic cable price per meter

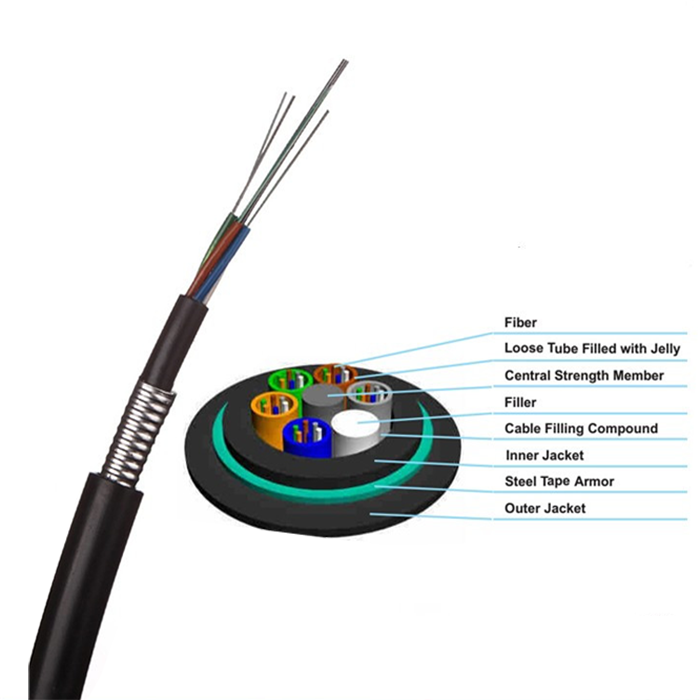

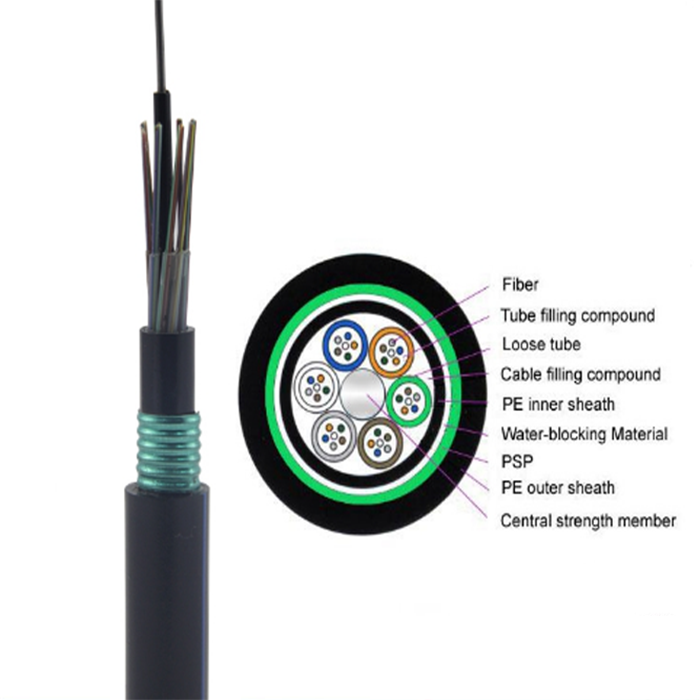

The fibers,200/ 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.



Product Name:cost of optic fibre cable,fiber optic underground,prysmian fiber optic cable,optical fibre cable price per meter,supplier fiber optic cable,optic fibre,fiber optic 6 core outdoor,fiber optic cable multimode price,fiber 48 core,optical cable company,om3 fiber optic cable,underground fiber optic cable installation,12 core multimode fiber optic cable,fibre cable suppliers,single mode fiber price,multimode fiber cable price,outdoor armored fiber optic cable

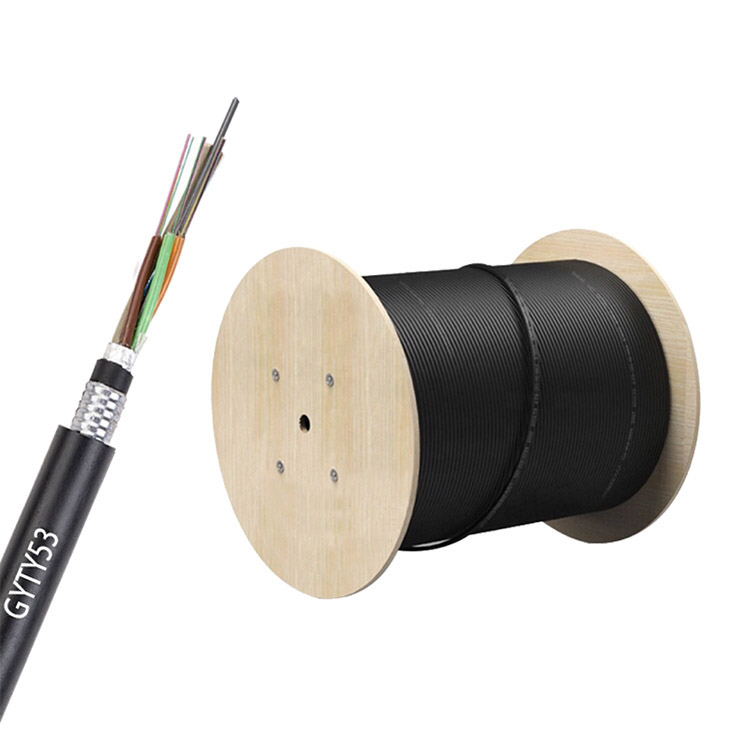

Product Picture/ PRODUCT

fibre cable suppliersstranded fiber optic cable


Product Description/ PRODUCT

·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Specially designed compact structure is good at preventing loose tubes from shrinking ·PE sheath protects cable from ultraviolet radiation ·Good crush tolerance,applies for duct and directly buried distribution ·To assure the water-proof function by:
 ·Single steel wire as central strength member
 ·Special tube filling compound ensure a critical protection of fiber
 ·PSP enhances the ability to avoid moisture
 ·Fully filled in the cable
   ·Good water-blocking tape prevent the sinking vertically

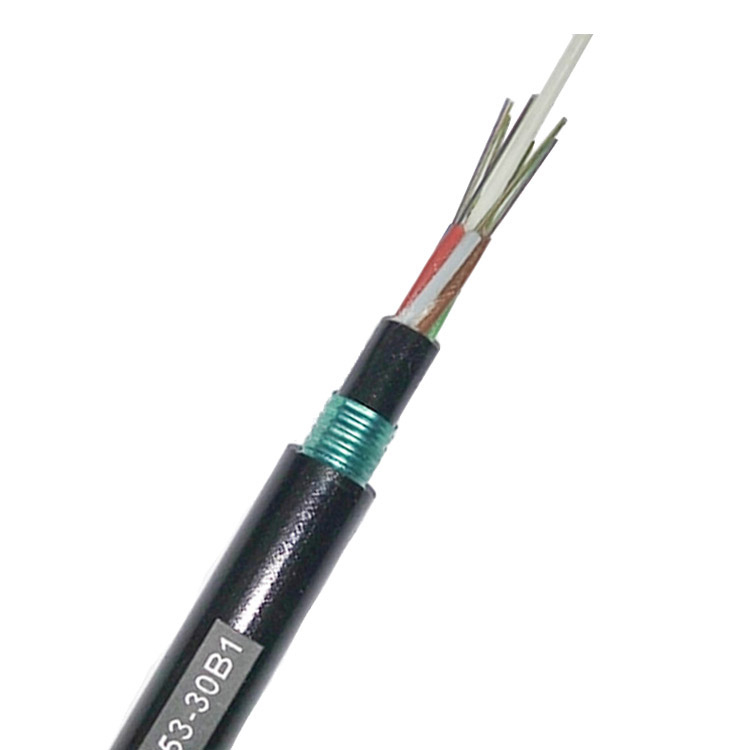

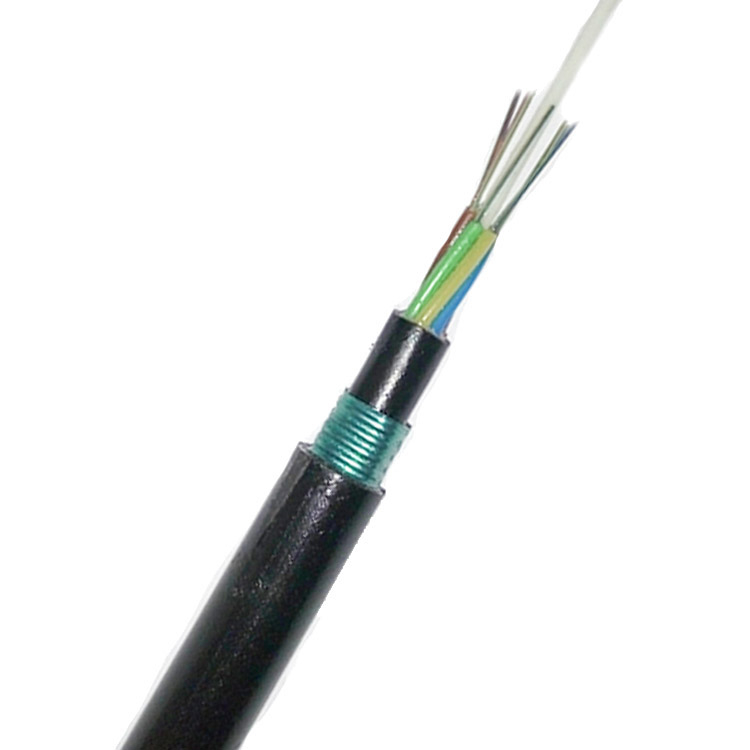

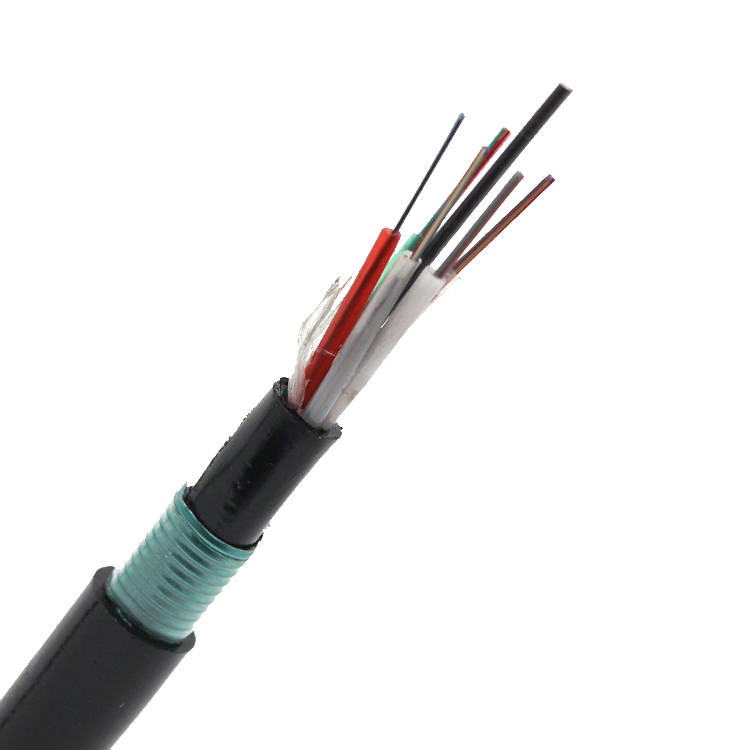

optical cable g652doutdoor armored fiber optic cablecost of optic fibre cable

Product Standard / PRODUCT

GYTY53 cable complies with Standard YD/T 901-2009 as well as IEC 60794-1.

Optical Characteristics / PRODUCT



G.652

G.655

50/125μm

62.5/125μm

Attenuation
     (+20℃)

@850nm





≤3.0dB/km

≤3.0dB/km

@1300nm





≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

≤0.40dB/km





@1550nm

≤0.22dB/km

≤0.23dB/km







  Bandwidth     (Class A)

@850





≥500MHZ·km

≥500MHZ·km

@1300





≥1000MHZ·km

≥600MHZ·km



  Numerical     Aperture







0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc



≤1260nm

≤1480nm





Technical Parameters / PRODUCT



Cable Type



 Fiber  Count

Loose tube count

Filler count
 s

Cable Diameter
     mm

Cable Weight   Kg/km

Tensile Strength
Long/short term
     N

Crush Resistance
Long/short term
     N/100m

Bending Radius
Static/dynamic
  mm

GYTY53-2~6

2~6

1

4

12.5

160

1000/3000

1000/3000

15D/30D

GYTY53-8~12

8~12

2

3

12.5

160

1000/3000

1000/3000

15D/30D

GYTY53-14~18

14~18

3

2

12.5

160

1000/3000

1000/3000

15D/30D

GYTY53-20~24

20~24

4

1

12.5

160

1000/3000

1000/3000

15D/30D

GYTY53-26~30

26~30

5

0

12.5

160

1000/3000

1000/3000

15D/30D

GYTY53-32~36

32~36

5

0

12.5

160

1000/3000

1000/3000

15D/30D

GYTY53-38~48

38~48

5

0

12.5

160

1000/3000

1000/3000

15D/30D

GYTY53-50~60

50~60

5

0

12.5

160

1000/3000

1000/3000

15D/30D

GYTY53-62~72

62~72

6

0

13.2

200

1000/3000

1000/3000

15D/30D

GYTY53-74~84

74~84

7

1

15.0

240

1000/3000

1000/3000

15D/30D

GYTY53-86~96

86~96

8

0

15.0

240

1000/3000

1000/3000

15D/30D

GYTY53-98~108

98~108

9

1

16.0

280

1000/3000

1000/3000

15D/30D

GYTY53-110~120

110~120

10

0

16.0

280

1000/3000

1000/3000

15D/30D

GYTY53-122~132

122~132

11

1

18.0

290

1000/3000

1000/3000

15D/30D

GYTY53-130~144

134~144

12

0

18.0

290

1000/3000

1000/3000

15D/30D

GYTY53-146~216

134~144

18

0

18.0

290

1000/3000

1000/3000

15D/30D


storage/Operating Temperature : -40℃ to + 70℃

Packing and Marking:

  • Each single length of cable shall be reeled on Fumigated Wooden Drum
  • Covered by plastic buffer sheet
  • Sealed by strong wooden battens
  • At least 1 m of inside end of cable will be reserved for testing.
  • Drum length: Standard drum length is 3,000m±2%; as required
  • 5.2 Drum Marking(can according to the requirement in the technical specification) Manufacturer name;
  • Manufacturing year and month Roll—direction arrow;
  • Drum length; Gross/net weight;
  • direct bury fiber optic cable
