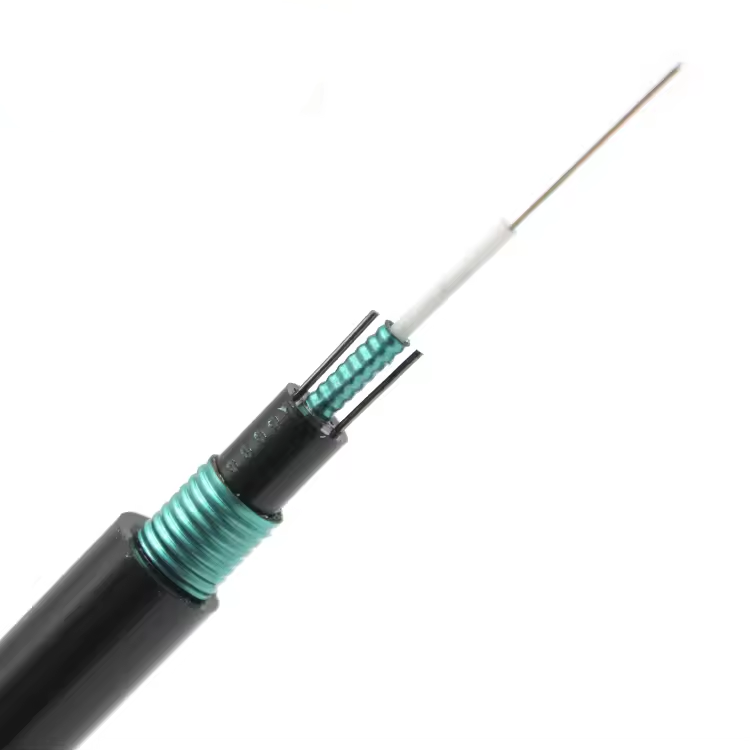

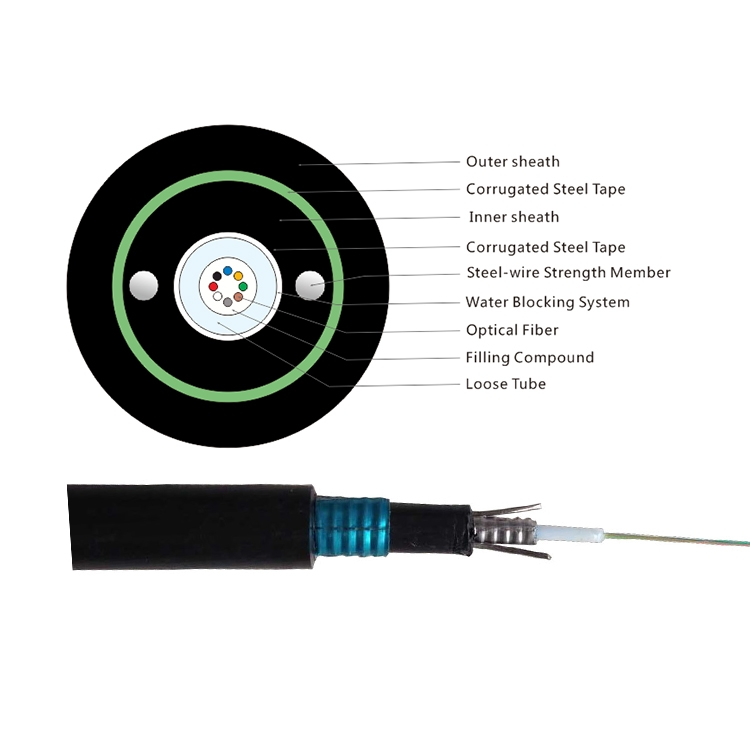

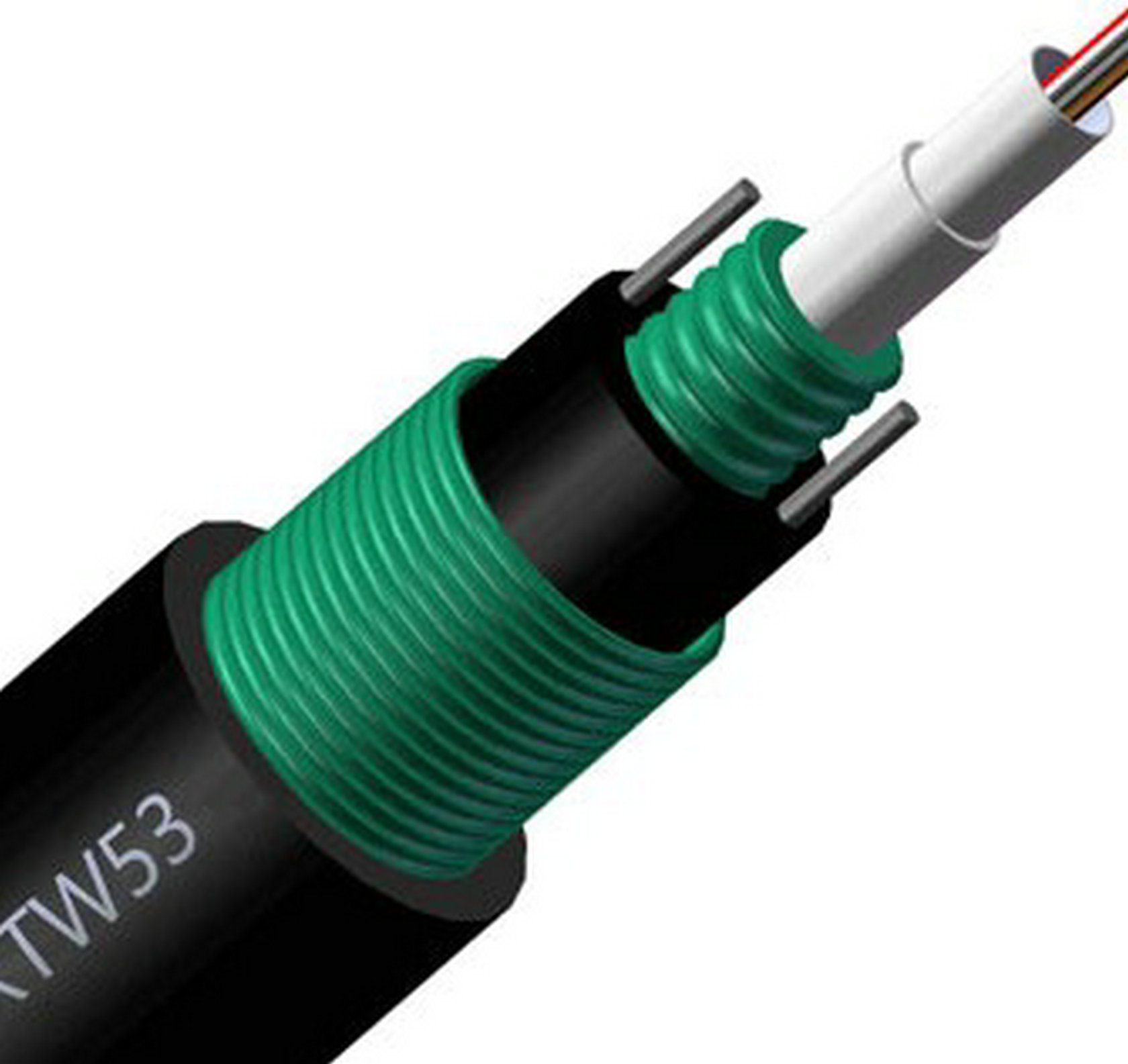

GYXTW53 Multimode Direct Buried Fiber Optic Cable Price

Features:

1. Full section water blocking structure ensures good water and moisture resistance
2. Loose sleeve filled with special ointment for critical fiber protection
3. Two parallel round wires resist tension and side pressure
4. optical fiber cable with small outside diameter, light weight, excellent bending performance
5. The loose tube is located in the physical center of the cable, convenient for construction and operation.
6. Polyethylene sheath makes the cable have good UV resistance
7. Double armored jacket makes cable better side pressure resistant
8. Product life more than 30 years

Application:

Core Network, Metropolitan Area Network, and Access Network Outdoor Optical Cable

Laying method: Buried directly, pipeline

Working temperature: -40℃~+60℃

Bend radius: Static 10 times the cable diameter

Dynamic 20 times optical cable diameter

Packing and Marking:

• Each single length of cable shall be reeled on Fumigated Wooden Drum
• Covered by plastic buffer sheet
• Sealed by strong wooden battens
• At least 1 m of inside end of cable will be reserved for testing.
• Drum length: Standard drum length is 3，000m±2%; as required
• 5.2 Drum Marking(can according to the requirement in the technical specification) Manufacturer name;
• Manufacturing year and month Roll—direction arrow;
• Drum length; Gross/net weight;
•
