Double Sheath Direct Burial 72Core optical fiber cable

Double Sheath Direct Burial 72Core optical fiber cable

Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery
Min. Order:	1 Kilometer
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: GYTY53

Brand: OEM

Place Of Origin: China

Number Of Cores: ≥ 10

Armored Type: conrrugage steel armored

Sheath: HDPE/MDPE/LDPE/PE

Filling Gel: water resistant compound

Material Of Jacket: PE, double jacket

Fiber Count: 2~288 cores

Outer Diameter: 13.0~18.8mm

Fiber Type: G652D G657A

Standard: IEC 60794-1 YD/T901-2009

Application: Direct burial duct fiber optic cable

Certification: ISO9001, TLC, CE, Anatel

Packaging & Delivery

Selling Units:	Kilometer
Package Type:	Iron-wooden drum or fumigated wooden drum,normal wooden drum
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

optical fiber cable" data-spm-anchor-id="a2700.details.0.i68.6e60293djpiF5Z">GYTY53 Double PE Sheath Direct Burial 72 Core optical fiber cable

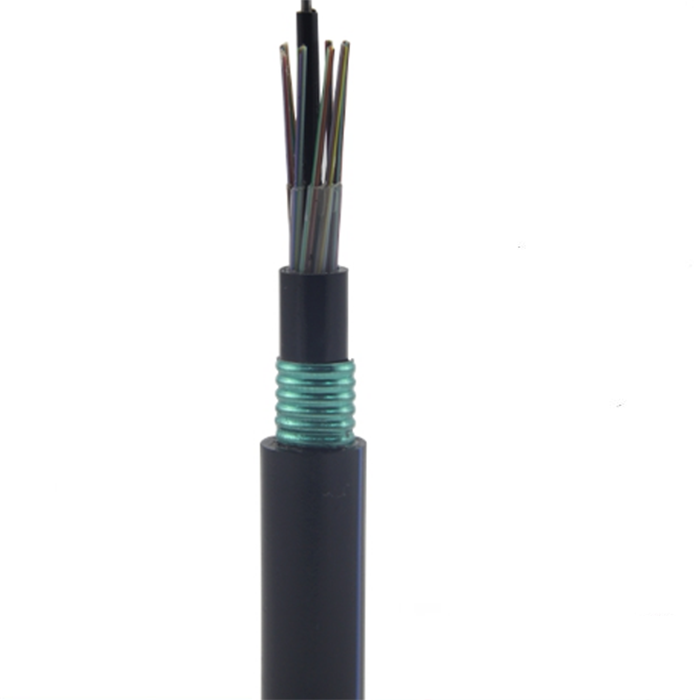

GYTY53 underground fiber optic cable is an outdoor communication optical cable of metal strength member of the loose tube jelly-filled structure, with polyethylene laminated sheath longitudinally covered with corrugated steel-tape armored polyethylene outer sheath.

The loose tubes are made of high modulus plastics (PBT) and filled with water resistant filling gel. Loose tubes are stranded around the metallic central strength member, cable core is filled with cable filling compound. Polyethylene (PE) is extruded as inner sheath, then water swollen yarns and corrugated steel tape are longitudinally applied over the inner sheath, and combined with a durable PE sheath.

Product Name:direct bury fiber optic cable,fibre cable installation,outdoor armored fiber optic cable,fiber optic price per meter,fiber optic cable information,g652d fiber cable,optical cable g652d,stranded fiber optic cable,single mode fiber price

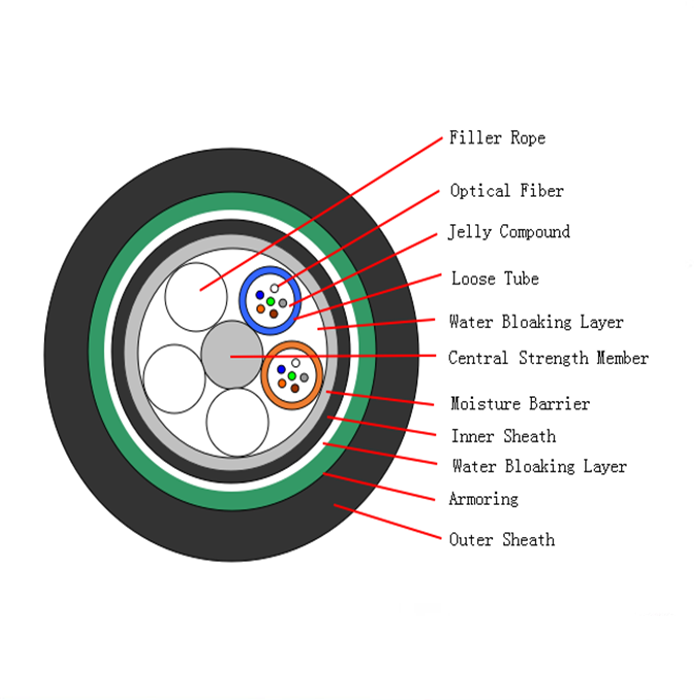

Cable Cross -Section: g652d fiber cable stranded fiber optic cable

Technical Parameters:

Cable Type (increased by 2fibers)	Fiber Count	Tubes+Fillers	Cable Diameter (mm)	Cable Weight (kg/km)	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static/Dynamic mm
GYTY53 2 ~36	2 ~36	6	6	12.6	184	1000/3000	1000/3000
GYTY53 38 ~ 72	38 ~ 72	6	12	14.0	216	1000/3000	1000/3000
GYTY53 74 ~ 96	74 ~ 96	8	12	15.7	260	1000/3000	1000/3000
GYTY53 98 ~ 120	98 ~ 120	10	12	17.4	301	1000/3000	1000/3000
GYTY53 122 ~ 144	122 ~ 144	12	12	19.0	354	1000/3000	1000/3000

Note:
1.Cables can be supplied with a range of single mode or multimode fibers.
2. The dimensions and raw materials can be designed according to the demand of the customers.
3. Standard Reel Length: 3000m/reel: other lengths available on request.

Application: Direct buried

Temperature Range:

Storing temperature:-40℃ to +70℃

Operating temperature:-40℃ to +70℃

Characteristics:

1. Excellent mechanical and temperature performance
2. The following measures are taken to ensure the
3. water blocking performance of the cable:
4. Single steel wire used as the central strength Member
5. Special water-blocking filling compound in the loose tube
6. 100% cable core filling,APL and PSP moisture barrier

Standards :

Comply with stand YD/T 901-2009 as well as IEC 60794-1

Performance:

Suitable for long-distance communication and indoor communication

Way of laying: Direct burial

Operating temperature: -40 ~ + 70 °C

Bend radius: Static 12.5x cable diameter Dynamic 25x cable diameter

Packing:

Each single length of cable shall be reeled on Fumigated Wooden Drum

Covered by plastic buffer sheet

Sealed by strong wooden battens

At least 1 m of inside end of cable will be reserved for testing.

Drum length: Standard drum length is 3，000m±2%; as required

5.2 Drum Marking(can according to the requirement in the technical specification) Manufacturer name; Manufacturing year and month Roll—direction arrow; Drum length; Gross/net weight;
