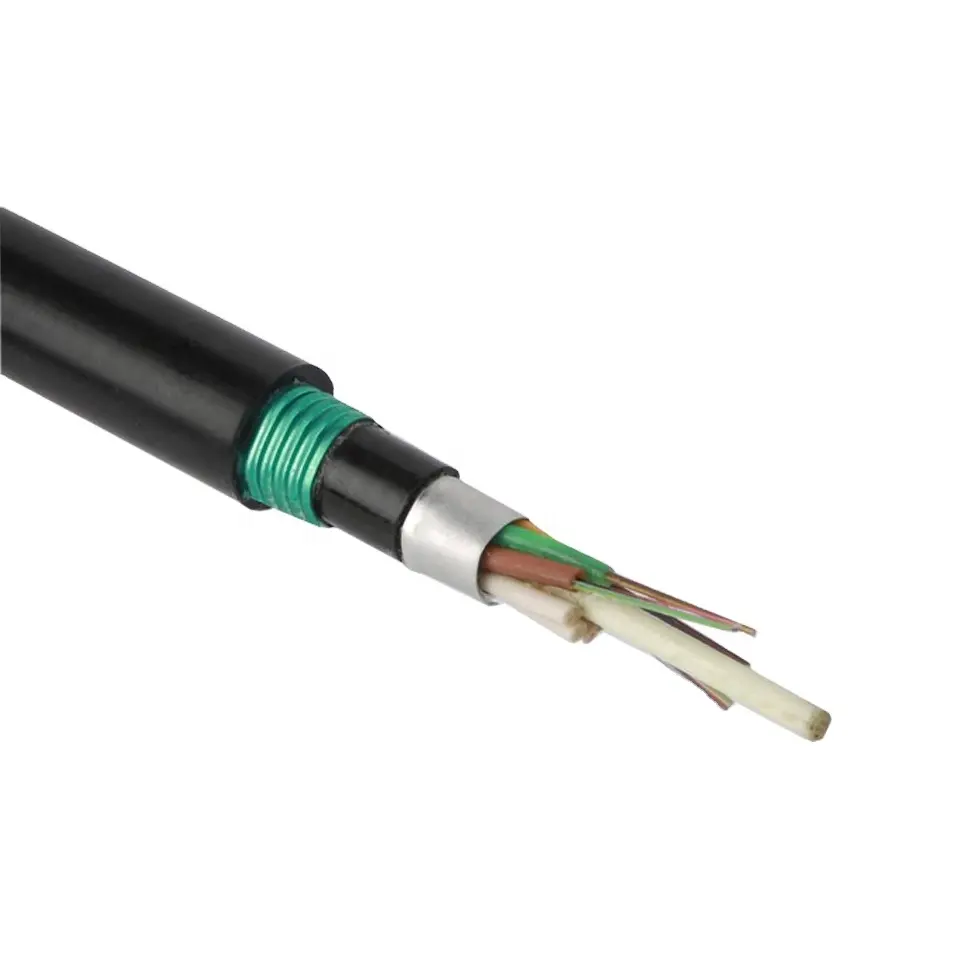

GYFTA53 buried single mode 96core fiber optic cable

GYFTA53 buried single mode 96core fiber optic cable

Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery
Min. Order:	1 Kilometer
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: GYFTA53

Brand: OEM

Place Of Origin: China

Number Of Cores: ≥ 10

Armored Type: conrrugage steel armored

Sheath: HDPE/MDPE/LDPE/PE

Filling Gel: water resistant compound

Material Of Jacket: PE, double jacket

Fiber Count: 2~288 cores

Outer Diameter: 13.0~18.8mm

Fiber Type: G652D G657A

Standard: IEC 60794-1 YD/T901-2009

Application: Direct burial duct fiber optic cable

Certification: ISO9001, TLC, CE, Anatel

Packaging & Delivery

Selling Units:	Kilometer
Package Type:	Iron-wooden drum or fumigated wooden drum,normal wooden drum
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

GYFTA53 Outdoor direct buried single mode 96 core fiber optic cable

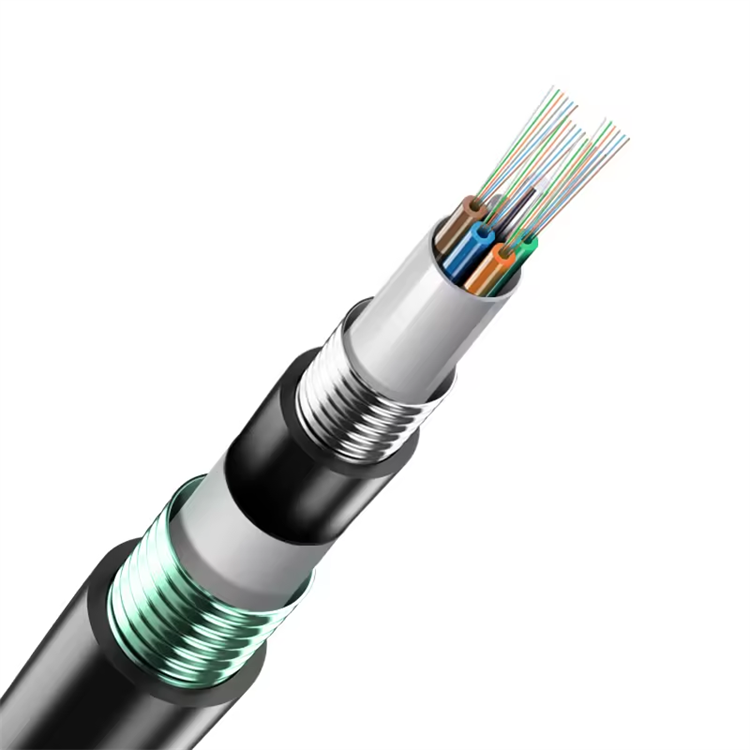

The loose tubes are made of high modulus plastics (PBT) and filled with water resistant filling gel. Loose tubes are stranded around the FRP central strength member, cable core is filled with cable filling compound. The corrugated aluminum tape folding and polyethylene (PE) is extruded as inner sheath, then water swollen yarns and corrugated steel tape is longitudinally applied over the inner sheath, and combined with a durable PE sheath.

Product Name:12 core single mode fiber optic cable,armoured optical fiber cable,fiber optic cable 6 core price,fibre cable installation,fiber optic price per meter,fiber optic cable information

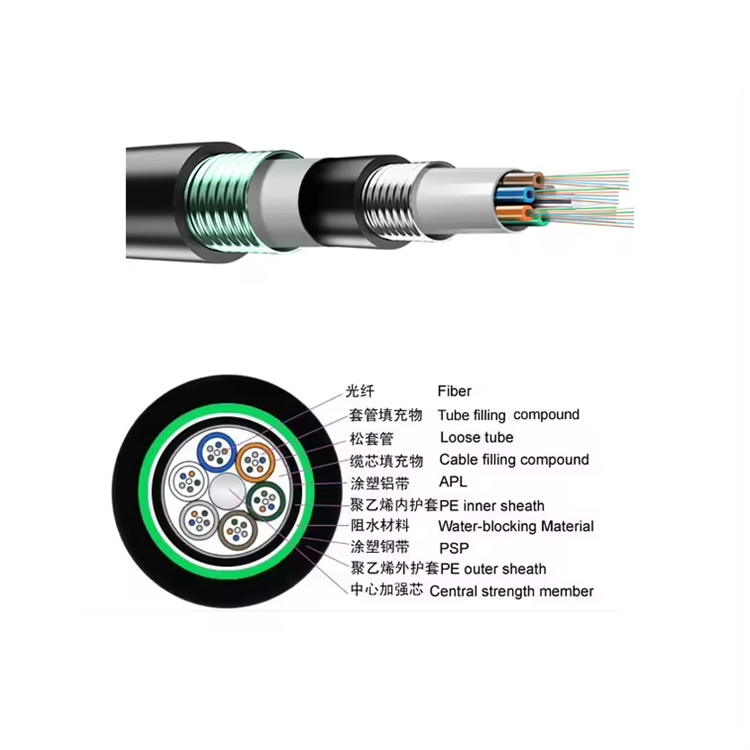

Cable Cross -Section:

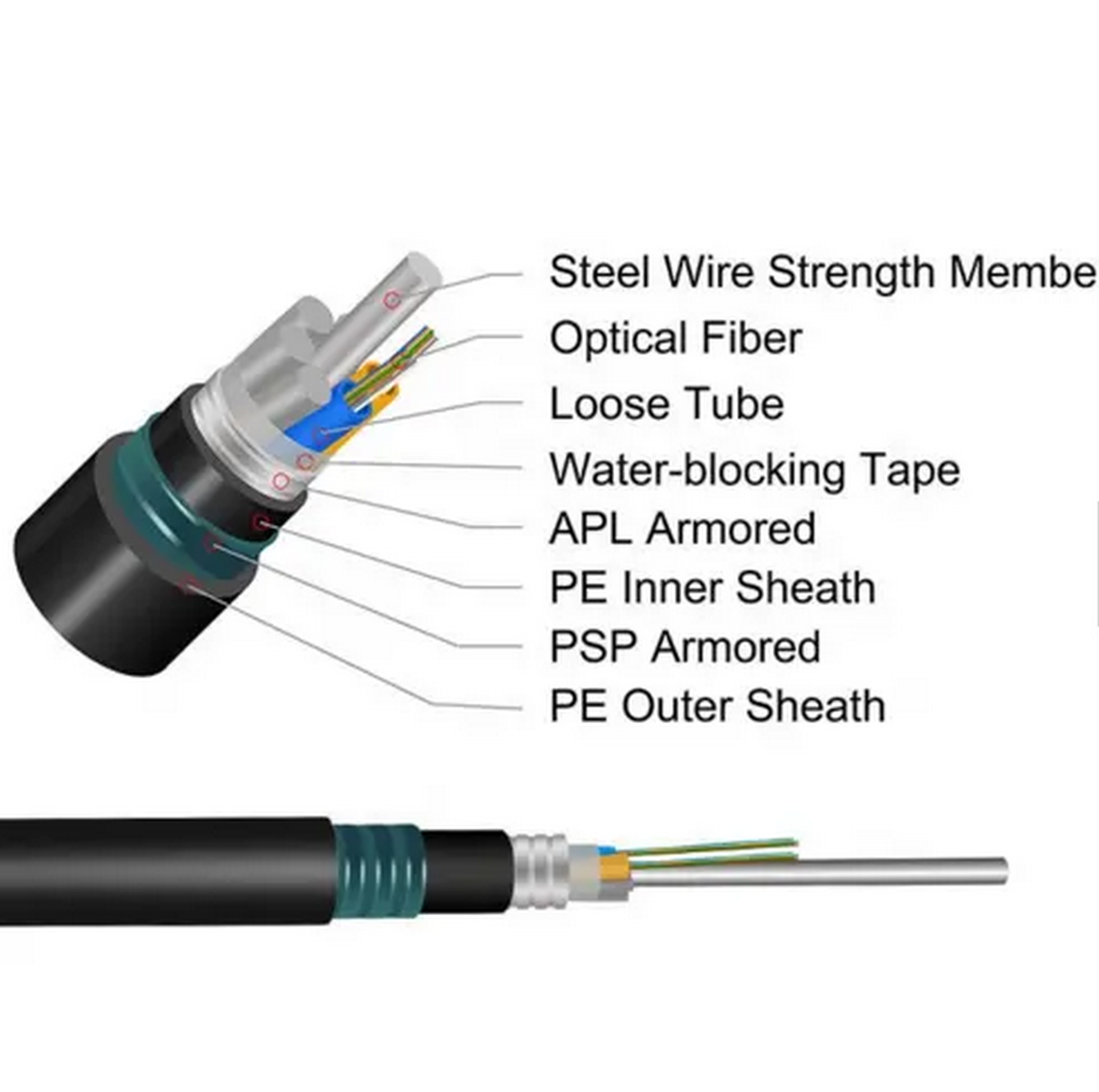

Structure:

Central strength member: metal materials available
Loose tube: PP or other materials available
Water blocking materials for loose tube: water blocking yarn available
Water blocking materials for cable core: water blocking tape available
Outer sheath: PE, aluminium tape armor, anti-termite or flame retardant materials available

Specification:

Item Name	GYFTA53 Fiber Optic Cable
Model Number	GYFTA53
Fiber No.	2-144 cores
Fiber Type	Single mode ITU-T G652D and multimode 62.5/125 50/125
Strength Member	FRP
Material of Jacket	Black Polyethylene (PE)
Cable Structure	Stranded Loose Tube
Certificate	ISO9001/CE/RoHS/CE
Storing Temperature	-40℃ to +70℃
Application	Duct/Aerial

Note:

1.Cables can be supplied with a range of single mode or multimode fibers.

2. The dimensions and raw materials can be designed according to the demand of the customers.

3. Standard Reel Length: 3000m/reel: other lengths available on request.

Application:

1. Direct-buried installation
2. Duct installation
3. Backbone network and metro network

Feature:

1. All section water blocking
2.Superior crush resistance
3. Excellent transmission, mechanical and environmental performance
4. Easy installation, easy maintenance
5. Lifespan over 30 years
6. Installation performance
7. Min. bend radius: installation 25D, operation 12.5D 8.

Temperature range:

storage -40～+70℃, installation -30～+70℃,
operation -40～+70℃

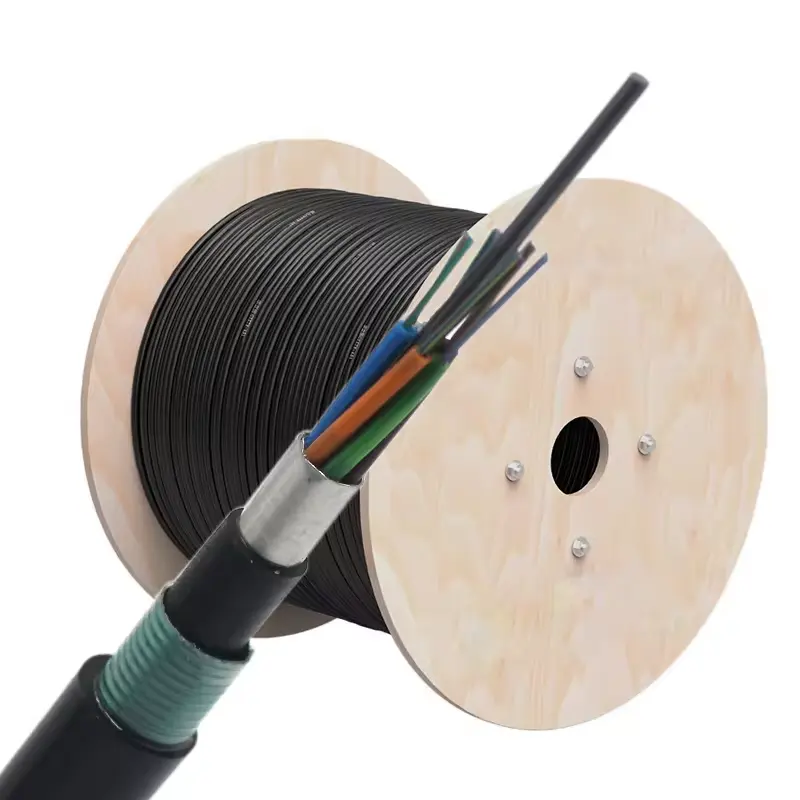

Packing and Marking:

Each single length of cable shall be reeled on Fumigated Wooden Drum
Covered by plastic buffer sheet
Sealed by strong wooden battens
At least 1 m of inside end of cable will be reserved for testing.
Drum length: Standard drum length is 3，000m±2%; as required
5.2 Drum Marking(can according to the requirement in the technical specification) Manufacturer name;
Manufacturing year and month Roll—direction arrow;
Drum length; Gross/net weight;
