GYTA53 outdoor direct burial 24cores fiber optic cable

GYTA53 outdoor direct burial 24cores fiber optic cable

Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery
Min. Order:	1 Kilometer
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: GYTA53

Brand: OEM

Place Of Origin: China

Number Of Cores: ≥ 10

Armored Type: conrrugage steel armored

Sheath: HDPE/MDPE/LDPE/PE

Filling Gel: water resistant compound

Material Of Jacket: PE, double jacket

Fiber Count: 2~288 cores

Outer Diameter: 13.0~18.8mm

Fiber Type: G652D G657A

Standard: IEC 60794-1 YD/T901-2009

Application: Direct burial duct fiber optic cable

Certification: ISO9001, TLC, CE, Anatel

Packaging & Delivery

Selling Units:	Kilometer
Package Type:	Iron-wooden drum or fumigated wooden drum,normal wooden drum
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

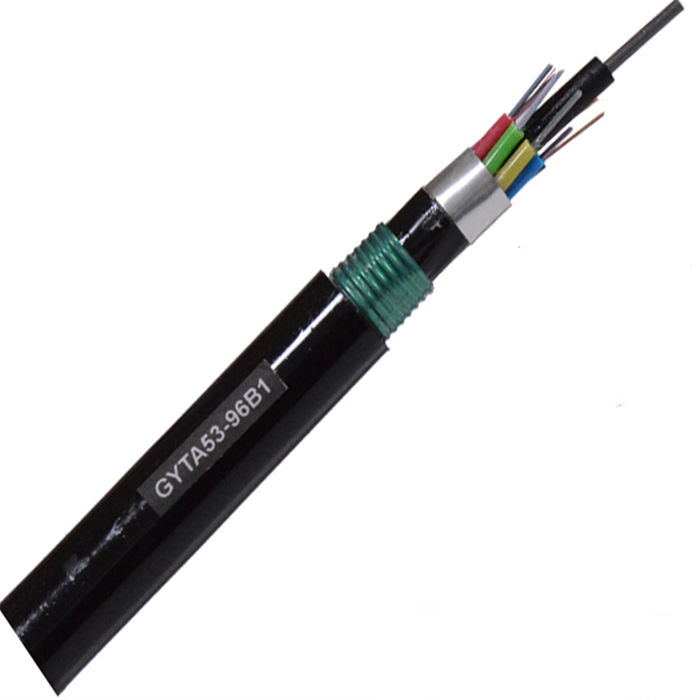

GYTA53 outdoor direct burial 4 core fiber optic cable

Description for Outdoor Fiber Optic Cable:

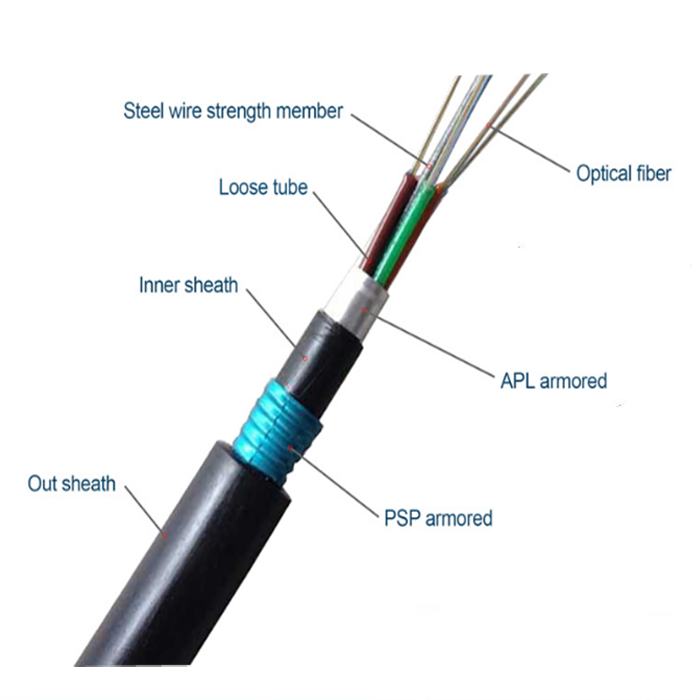

In the GYTA53 cable, an Aluminum Polyethylene Laminate(APL) is applied around the cable core,which is filled with filling compound to protect it fromwater ingress. Thn the cable core is covered with a thin PE inner sheath.After the PSP is longitudinally applied over the inner sheath,the cable is completed with a PE outer sheath.

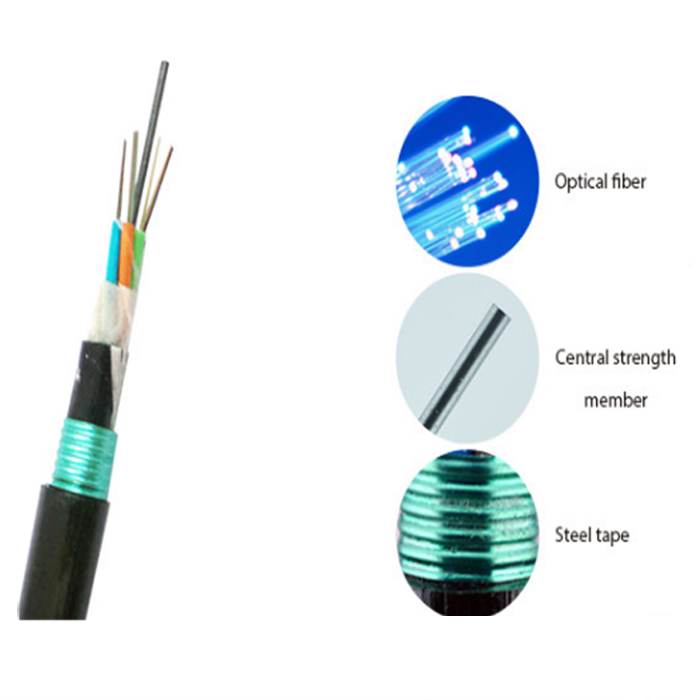

The fibers,250μmm,are position in a loose tube made of a high modulus plastic.The tube are filled with a water resistant filling compound.A steel wire,sometimes sheathed with ployethylene(PE) for cable with high fiber count,locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.Please inquiry us for purchase fiber optic cable.

Product Name:fiber optic cable direct burial,fiber optic line installation,optical cable price,fiber optic cable structure,fiber optic 48 core，gyta53,optical cable price,fiber optic cable buried,multimode fiber optic cable,om2 fiber optic cable

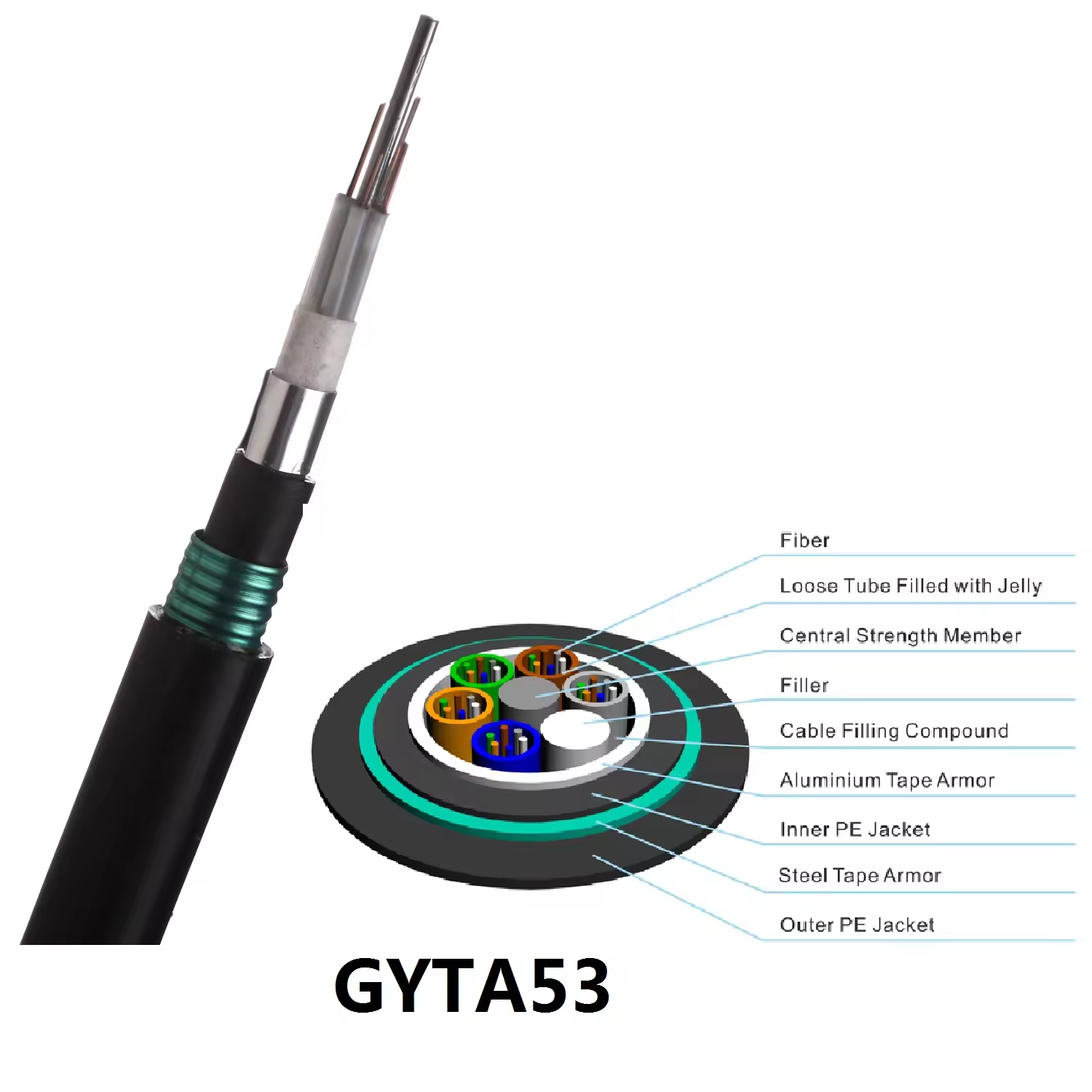

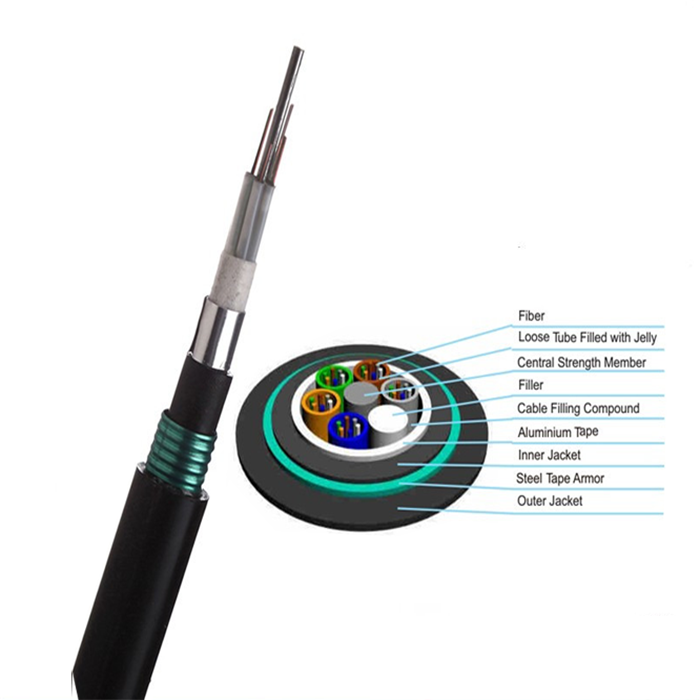

Cross-Section for Direct Buried Fiber Optic Cable:

Technical Parameters：

Cable Type (increased by 2fibers)	Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)	Tensile Strength Long/Short Term( N)	Crush ResistanceLong/Short Term (N/100mm)	Bending RadiusStatic/ Dynamic (mm)
GYTA53 2 ~ 36	2 ~ 36	13.7	190	1000/3000	1000/3000	10D/20D
GYTA53 38 ~ 72	38 ~ 72	15.3	229	1000/3000	1000/3000	10D/20D
GYTA53 74~96	74~96	15.9	244	1000/3000	1000/3000	10D/20D
GYTA53 98 ~120	98 ~120	18.0	288	1000/3000	1000/3000	10D/20D
GYTA53 122 ~144	122 ~144	19.2	325	1000/3000	1000/3000	10D/20D

Application for optical fiber cable multimode:

Aerial/Duct/Outdoor

Characteristic of direct bury fiber optic cable:

1. The following measures are taken to ensure the water blocking performance of the cable.
2. Single steel wire used as the central strength Member.
3. Special water-blocking filling compound in the loose tube.
4. 100% cable core filling,APL and PSP moisture barrier.

Temperature Rage：

Operating :-40℃ to +70℃ Storage :-40℃ to +70℃

Standards of fiber optic underground：

Comply with stand YD/T 901-2009 as well as IEC 60794-1

Packing and Marking:

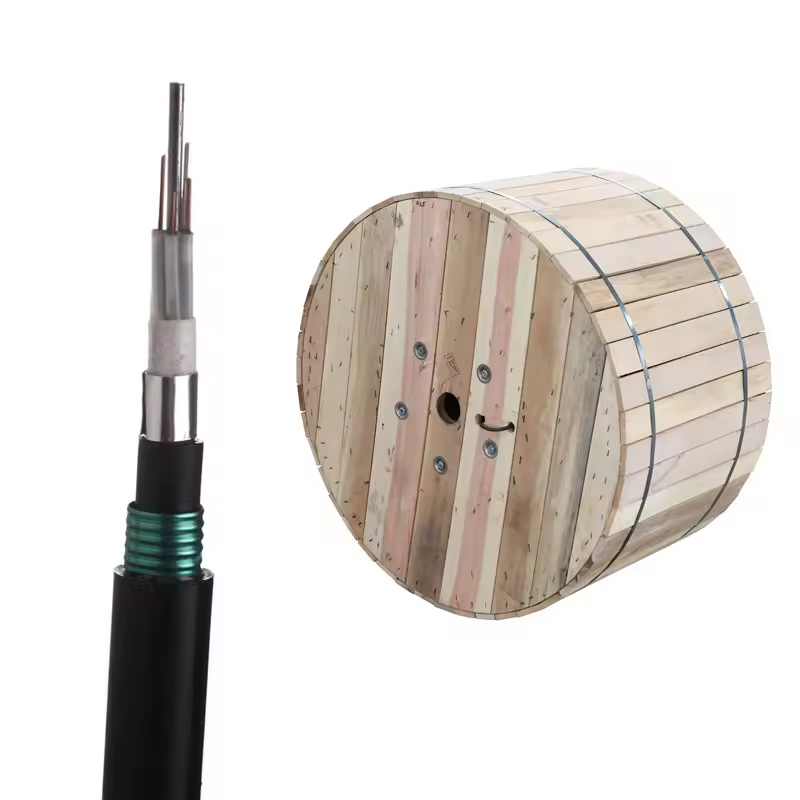

Each single length of cable shall be reeled on Fumigated Wooden Drum
Covered by plastic buffer sheet
Sealed by strong wooden battens
At least 1 m of inside end of cable will be reserved for testing.
Drum length: Standard drum length is 3，000m±2%; as required
5.2 Drum Marking(can according to the requirement in the technical specification) Manufacturer name;
Manufacturing year and month Roll—direction arrow;
Drum length; Gross/net weight;
