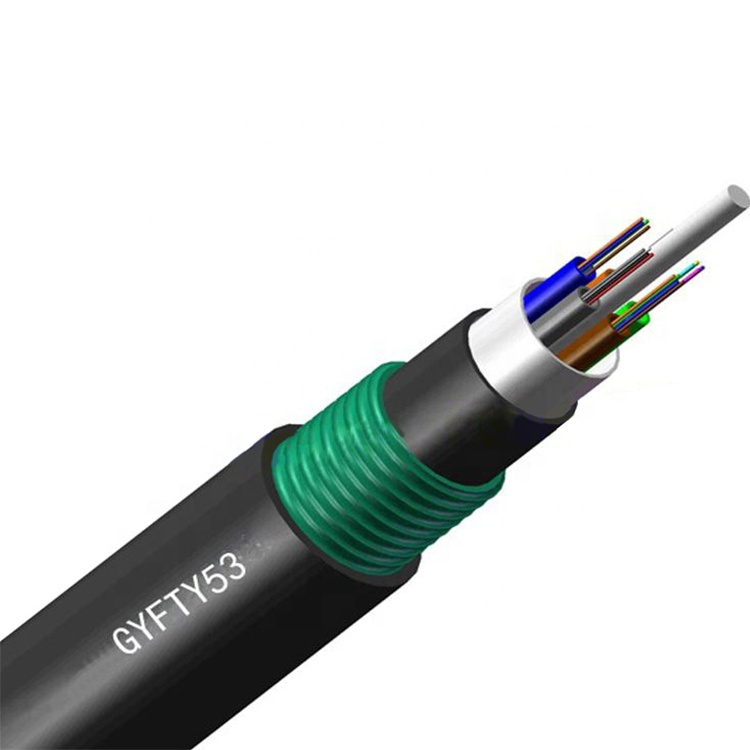

Model No.: GYFTY53
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Armored Type: conrrugage steel armored
Sheath: HDPE/MDPE/LDPE/PE
Filling Gel: water resistant compound
Material Of Jacket: PE, double jacket
Fiber Count: 2~288 cores
Outer Diameter: 13.0~18.8mm
Fiber Type: G652D G657A
Standard: IEC 60794-1 YD/T901-2009
Application: Direct burial duct fiber optic cable
Certification: ISO9001, TLC, CE, Anatel
| Selling Units: | Kilometer |
| Package Type: | Iron-wooden drum or fumigated wooden drum,normal wooden drum |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Cable Count | Out sheath Diameter(MM) | Weight (KG/Km) | Minimum allowable Tensile Strength(N) | minimum allowable Crush Load（N/100mm) | Minimum Bending Radius(MM) | Storage temperature （℃） | |||
| short term | long term | short term | long term | short term | long term | ||||
| 24 | 12.0 | 155 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 36 | 12.0 | 155 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 42 | 12.0 | 155 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 48 | 13.0 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 60 | 13.0 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 72 | 13.0 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
Note:
1.Cables can be supplied with a range of single mode or multimode fibers.
2. The dimensions and raw materials can be designed according to the demand of the customers.
3. Standard Reel Length: 3000m/reel: other lengths available on request.
Adopted to Outdoor distribution.
Suitable for aerial duct and buried method.
Long distance and local area network communication.

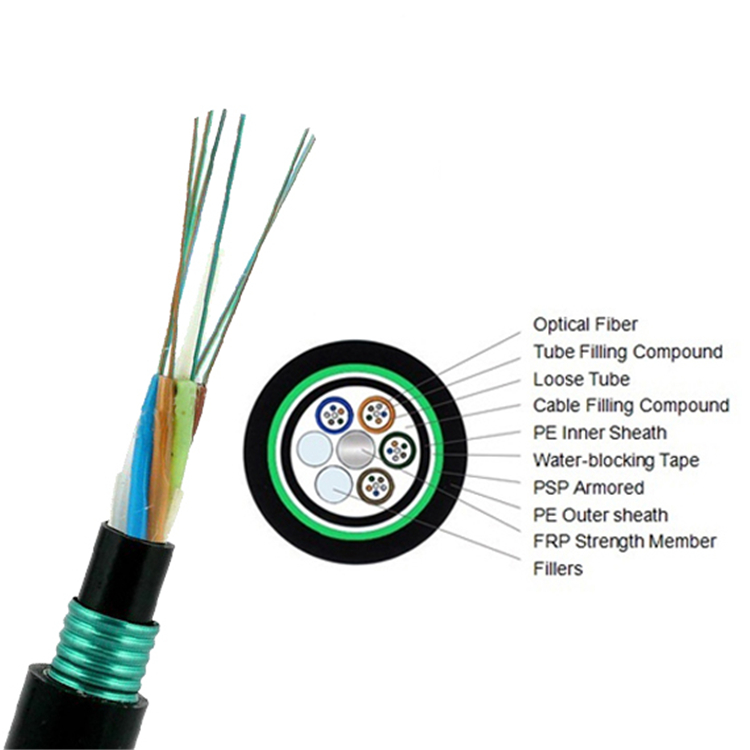

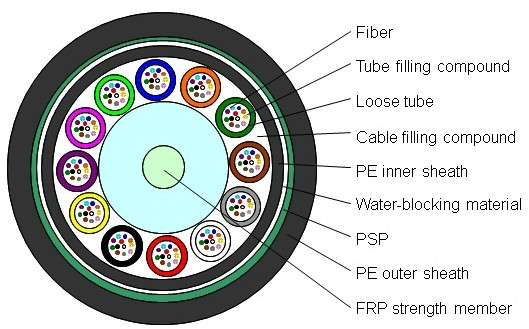

FRP strength.filler protect tube fiber.steel tape armord.
Good ultra violet radiation resistant property.
Double sheath .Good moisture-resistance.
Packing:
1-5KM per roll. Packed by steel drum . Other packing available according to client`s Request.
The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required; b. Standard Code(Product Type, Fiber Type,Fiber Count); c. Year of manufacture: 7 years; d. Length marking in meters.
Shanghai/Guangzhou/Shenzhen
| Quantity(KM) | 1-300 | ≥300 |
| Est.Time(Days) | 15 | To be begotiated! |
The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.
Packaging: Iron-wooden drum or fumigated wooden drum,normal wooden drum
Productivity: 1000 Kilometer/Kilometers per
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 1000 Kilometer/Kilometers per Month
Certificate: ISO9001, TLC, CE, Anatel
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery
