GJPFJV Indoor 48cores 96cores Fiber Breakout Optical Cable

GJPFJV Indoor 48cores 96cores Fiber Breakout Optical Cable

Payment Type:	L/C,T/T,D/P,Paypal
Incoterm:	FOB,CFR,CIF,EXW,FAS,DDP,DDU,Express Delivery
Min. Order:	1 Kilometer
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou,Shanghai

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: GJPFJV

Brand: OEM

Place Of Origin: China

Number Of Cores: ≥ 10

Fiber Cores: 2~288 cores

Strength Member: aramid yarns

Tight Buffer Fibers: Yes

Subunit Sheath: PVC,LSZH

Central Member: Plastic Coated FRP

Water Blocking Tape: Yes

Outer Sheath: PVC,LSZH

Fiber Type: G652D,G657,G655,OM1,OM2,OM3,OM4

Certification: ISO,SGS

OEM: Yes

Packaging & Delivery

Selling Units:	Kilometer
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Product description/ PRODUCT

GJPFJV Indoor 48cores 96cores Fiber Breakout Optical Cable

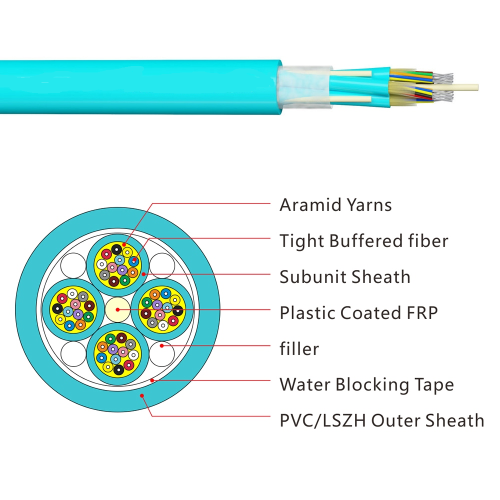

GJPFJV cable is made by the tight buffer fiber wrapped with a layer of aramid yarn as strength member units,multi fibers as the sub unit twist with FRP into the circle ,and finally into fiber optic cable with PVC or LSZH sheath,with dry-type water-blocking materials between fiber and sheath.

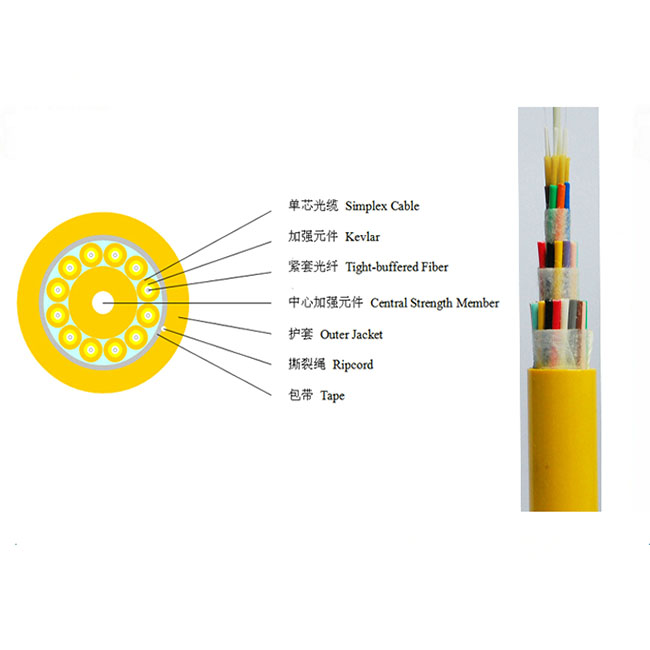

MPC Multi-Purpose Distribution cable use multi-fiber subunits (Φ900µm tight buffer fiber, aramid yarn as strength member).A fiber reinforced plastic (FRP) locates in the center of core as a non-metallic strength member.The subunits are stranded around the cable core. The cable is completed with a PVC or LSZH (Low smoke, Zero halogen, Flame-retardant) jacket.

Product Name:indoor fiber cable，indoor optical fiber cable，optical distribution，breakout fiber cable，fiber cable specification，indoor outdoor cable，fiber optic breakout cable，indoor cables，fiber optic indoor，breakout cable，fiber optic input cable

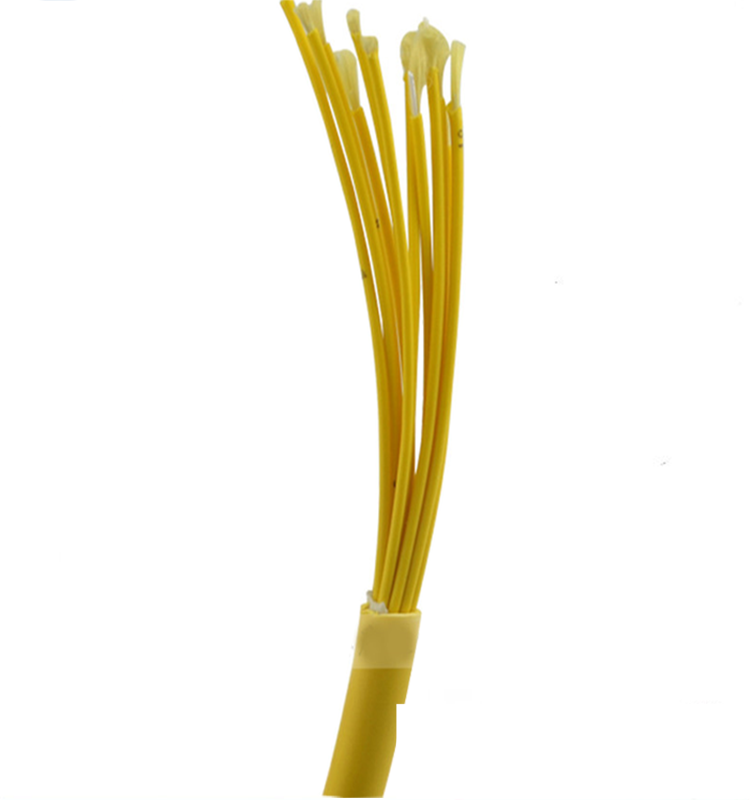

Product Picture/ PRODUCT

Products Features/ PRODUCT

·Each sub cable contains aramid yarn,good bend performance,without loose tube,cleaning friendly,easy construction and connection.
·Tight buffer fiber with single strength member and sheath to overcome the effect from bad environment and Mechanical stress.
·The low smoke and low halogen flame retardant sheath has the characteristics of fire prevention and self extinguishing, and is suitable for indoor environment such as computer room, cable shaft and indoor wiring.
·LSZH sheath,UV,Waterproof mildew,ESCR,No acid gas release,non-corrosive room equipment, suitable for indoor and outdoor use or need a high flame-retardant grades of the indoor environment (such as wiring in the ceiling, open wire cabling etc.)

Products Application/ PRODUCT

·Indoor horizontal wiring, vertical wiring in buildings, LAN network.
·Standard core can be directly apply to connectors,to use for device connecting.
·Used as a backbone cable tail can access directly from the indoor and outdoor to save the junction box, isolated lightning, improve system reliability.

Products Standard/ PRODUCT

·GJPFJV cable complies with Standard YD/T1258.4-2009、ICEA-596、GR-409、IEC794 etc; and meets with the requirements of UL approval for OFNR.

Optical Characteristics/ PRODUCT

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.5dB/km	≤3.5dB/km
	@1300nm			≤1.5dB/km	≤1.5dB/km
	@1310nm	≤0.45dB/km	≤0.45dB/km
	@1550nm	≤0.30dB/km	≤0.30dB/km
Bandwidth （Class A）	@850			≥500MHZ·km	≥200MHZ·km
Bandwidth （Class A）	@1300			≥1000MHZ·km	≥600MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

Technical Parameters/ PRODUCT

Fiber Count	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm
24cores	13.8±0.5	70	500/1300	300/1000	30D/15D
48cores	18.0±0.5	150	500/1300	300/1000	30D/15D
96cores	25.0±0.5	340	500/1300	300/1000	30D/15D
120cores	31.0±1mm	530	500/1300	300/1000	30D/15D

Environmental Characteristics/ PRODUCT

Transport Temperature	－20℃～＋60℃
Storage Temperature	－20℃～＋60℃
Installation Temperature	－5℃～＋50℃
Operating Temperature	－20℃～＋60℃

Packing and Marking:

Each single length of cable shall be reeled on Fumigated Wooden Drum
Covered by plastic buffer sheet
Sealed by strong wooden battens
At least 1 m of inside end of cable will be reserved for testing.
Drum length: Standard drum length is 3，000m±2%; as required
5.2 Drum Marking(can according to the requirement in the technical specification) Manufacturer name;
Manufacturing year and month Roll—direction arrow;
Drum length; Gross/net weight;
