Model No.: GJFJHV
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Fiber Cores: 2~288 cores
Strength Member: aramid yarns
Tight Buffer Fibers: Yes
Subunit Sheath: PVC,LSZH
Central Member: Plastic Coated FRP
Water Blocking Tape: Yes
Outer Sheath: PVC,LSZH
Fiber Type: G652D,G657,G655,OM1,OM2,OM3,OM4
Certification: ISO,SGS
OEM: Yes
| Selling Units: | Kilometer |

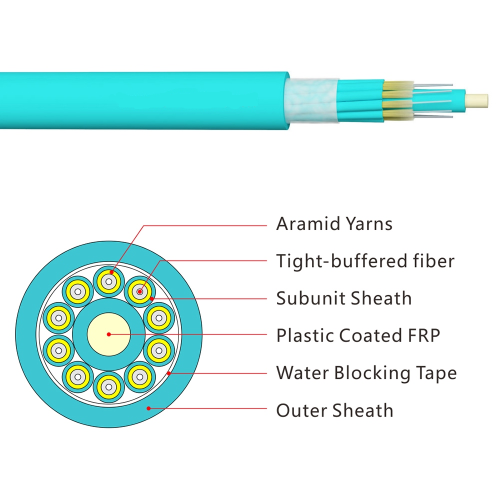

| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
GJPFJV 12~24 cores indoor distribution optical fiber cable
GJPFJV cable,the tight buffer fiber is placed on the surface with a layer of aramid yarn as strength member units,multi fibers as the subunit twist with FRP(and some cushions) into the circle ,and finally into fiber optic cable with PVC or LSZH sheath,with dry-type water-blocking materials between fiber and sheath.
MPC Multi-Purpose Distribution cable use multi-fiber subunits (Φ900µm tight buffer fiber, aramid yarn as strength member).A fiber reinforced plastic (FRP) locates in the center of core as a non-metallic strength member.The subunits are stranded around the cable core. The cable is completed with a PVC or LSZH (Low smoke, Zero halogen, Flame-retardant) jacket.
Product Name:indoor fiber cable，indoor optical fiber cable，optical distribution，breakout fiber cable，fiber cable specification，indoor outdoor cable，fiber optic breakout cable，indoor cables，fiber optic indoor，breakout cable
·Each sub cable contains aramid yarn,good bend performance,without gel,cleaning friendly,easy construction and connection.
·Tight buffer fiber with single strength member and sheath to overcome the effect from bad environment and Mechanical stress.
·LSZH sheath,anti-retardant,Self-extinguishing,Suitable for machine room, cable shaft and used in indoor environment such as wiring inside the wall.
·LSZH sheath,UV,Waterproof mildew,ESCR,No acid gas release,non-corrosive room equipment, suitable for indoor and outdoor use or need a high flame-retardant grades of the indoor environment (such as wiring in the ceiling, open wire cabling etc.)
·Indoor horizontal wiring, vertical wiring in buildings, LAN network.
·Standard core can be directly apply to connectors,to use for device connecting
·Used as a backbone cable tail can access directly from the indoor and outdoor to save the junction box, isolated lightning, improve system reliability.
·GJFJHV cable complies with Standard YD/T1258.4-2009、ICEA-596、GR-409、IEC794 etc; and meets with the requirements of UL approval for OFNR.
|
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
| Attenuation | @850nm |
|
| ≤3.5dB/km | ≤3.5dB/km |
| @1300nm |
|
| ≤1.5dB/km | ≤1.5dB/km | |
| @1310nm | ≤0.45dB/km | ≤0.45dB/km |
|
| |
| @1550nm | ≤0.30dB/km | ≤0.30dB/km |
|
| |
| Bandwidth （Class A） | @850 |
|
| ≥500MHZ·km | ≥200MHZ·km |
| @1300 |
|
| ≥1000MHZ·km | ≥600MHZ·km | |
| Numerical Aperture |
|
|
| 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength |
| ≤1260nm | ≤1480nm |
|
|
| | | |
| |
| |
| 2芯 | 2.0 | 7.0±0.5 | 45 | 500/1000 | 400/800 | 30D/15D |
| 4芯 | 2.0 | 7.0±0.5 | 45 | 500/1000 | 400/800 | 30D/15D |
| 6芯 | 2.0 | 8.3±0.5 | 62 | 500/1000 | 400/800 | 30D/15D |
| 8芯 | 2.0 | 9.4±0.5 | 85 | 500/1000 | 400/800 | 30D/15D |
| 10芯 | 2.0 | 10.7±0.5 | 109 | 500/1000 | 400/800 | 30D/15D |
| 12芯 | 2.0 | 12.2±0.5 | 140 | 500/1000 | 400/800 | 30D/15D |
| Transport Temperature | －20℃～＋60℃ |
| Storage Temperature | －20℃～＋60℃ |
| Installation Temperature | －5℃～＋50℃ |
| Operating Temperature | －20℃～＋60℃ |
Productivity: 1500 kilometer per month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Certificate: ISO,SGS
HS Code: 8544700000
Port: Shenzhen,Guangzhou,Shanghai
Payment Type: L/C,T/T,D/P,Paypal
Incoterm: FOB,CFR,CIF,EXW,FAS,DDP,DDU,Express Delivery
