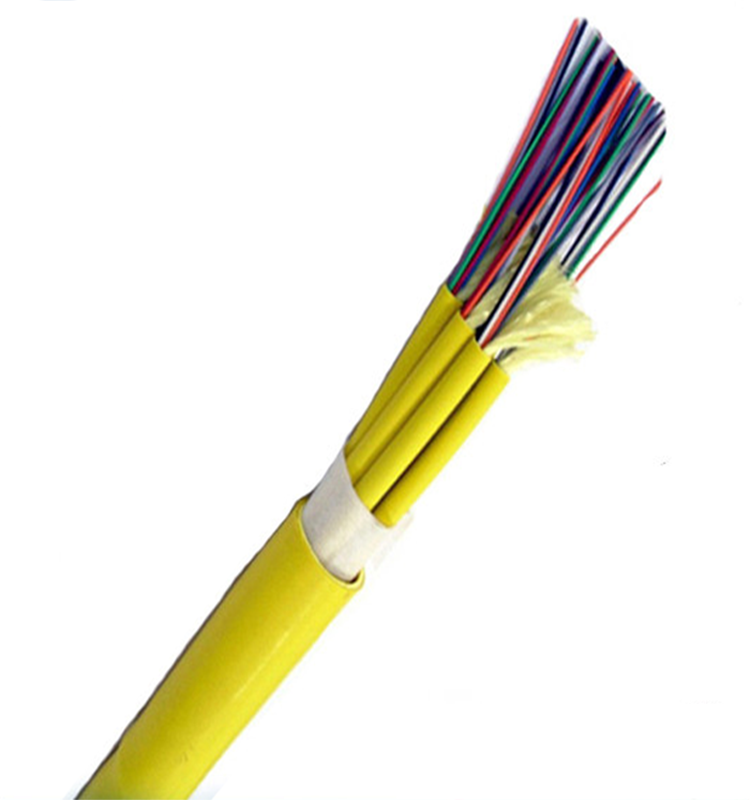

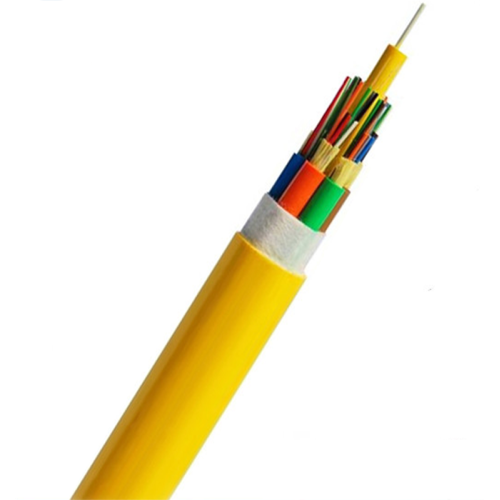

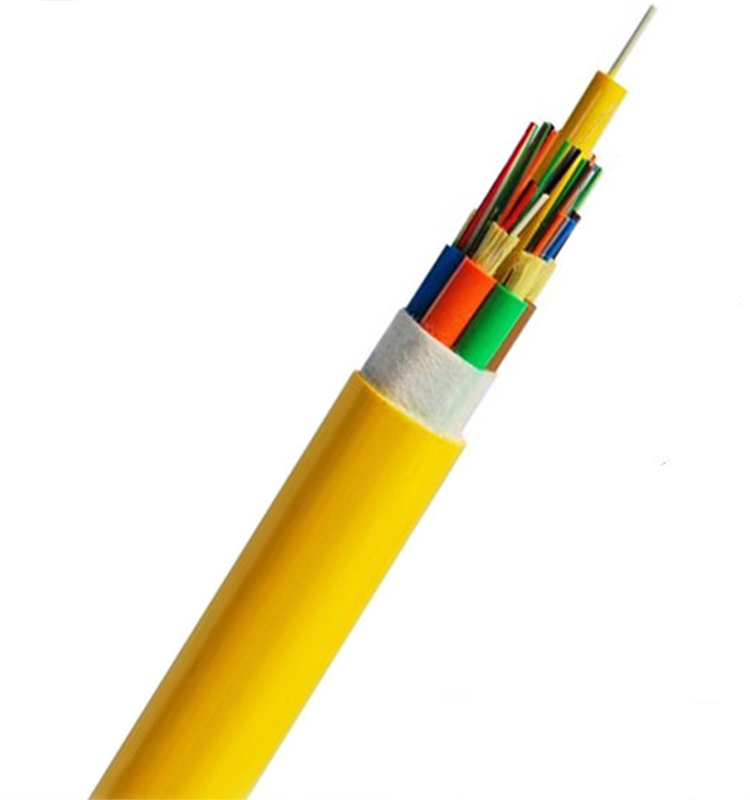

Gjpfjv Indoor Distribution Breakout Optical Fiber Cable

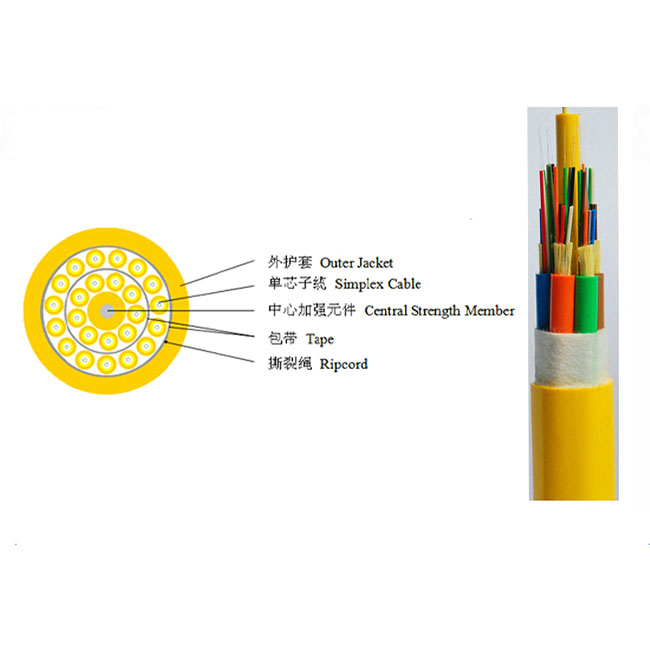

Cable Cross -Section:

Technical Parameters:

Environmental Characteristics:

·Each sub cable contains aramid yarn,good bend performance,without loose tube,cleaning friendly,easy construction and connection.

·Tight buffer fiber with single strength member and sheath to overcome the effect from bad environment and Mechanical stress.

·The low smoke and low halogen flame retardant sheath has the characteristics of fire prevention and self extinguishing, and is suitable for indoor environment such as computer room, cable shaft and indoor wiring.

·LSZH sheath,UV,Waterproof mildew,ESCR,No acid gas release,non-corrosive room equipment, suitable for indoor and outdoor use or need a high flame-retardant grades of the   indoor environment (such as wiring in the ceiling, open wire cabling etc.)

Application:

·Indoor horizontal wiring, vertical wiring in buildings, LAN network.

·Standard core can be directly apply to connectors,to use for device connecting.

·Used as a backbone cable tail can access directly from the indoor and outdoor to save the junction box, isolated lightning, improve system reliability.

Standards:

·GJPFJV cable complies with Standard YD/T1258.4-2009、ICEA-596、GR-409、IEC794 etc; and meets with the requirements of UL approval for OFNR.

Packing and Marking:

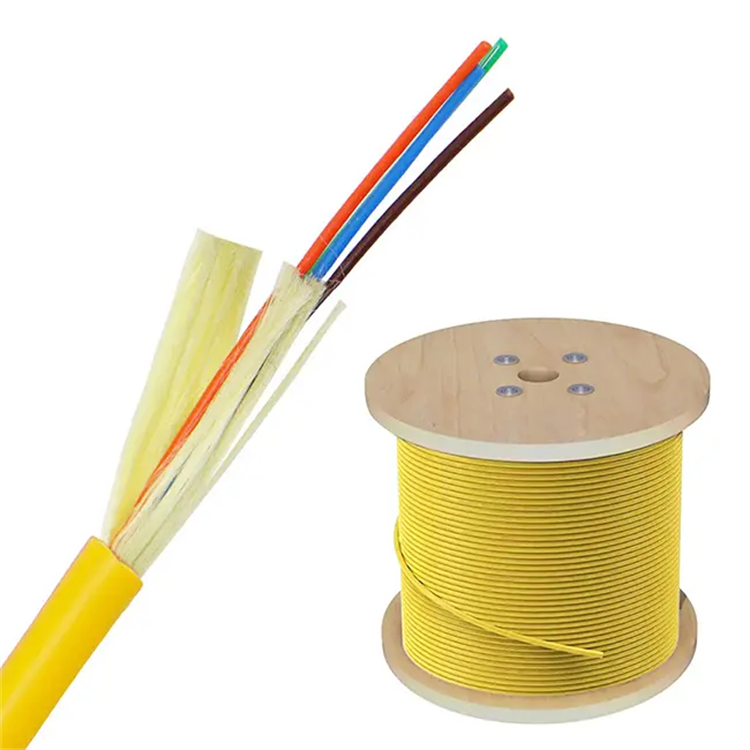

• Each single length of cable shall be reeled on Fumigated Wooden Drum
• Covered by plastic buffer sheet
• Sealed by strong wooden battens
• At least 1 m of inside end of cable will be reserved for testing.
• Drum length: Standard drum length is 3，000m±2%; as required
• 5.2 Drum Marking(can according to the requirement in the technical specification) Manufacturer name;
• Manufacturing year and month Roll—direction arrow;
• Drum length; Gross/net weight;
•
