Model No.: ASU
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Application: Outdoor Aerial
Fiber Type: G652D/G657A1/G657A2
No. Of Fiber: 2~24 cores
Outer Sheath: HDPE
Keyword: MINI ADSS CABL
Strength Member: FRP
Span: 50~100M
Certification: CE/ROHS/ISO9001/ANATEL
Product Name: ASU fiber optic cable
Cable Diameter: 6.6-7MM
| Selling Units: | Kilometer |
| Package Type: | wooden spool |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it

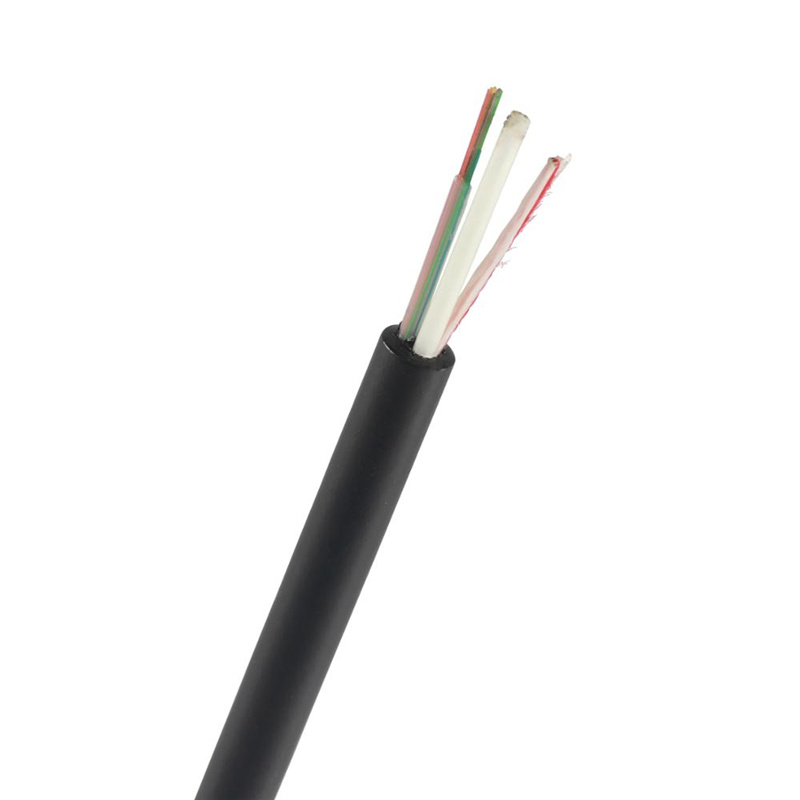

ASU FRP 80-100m mini adss Optical Fibre Wire Price

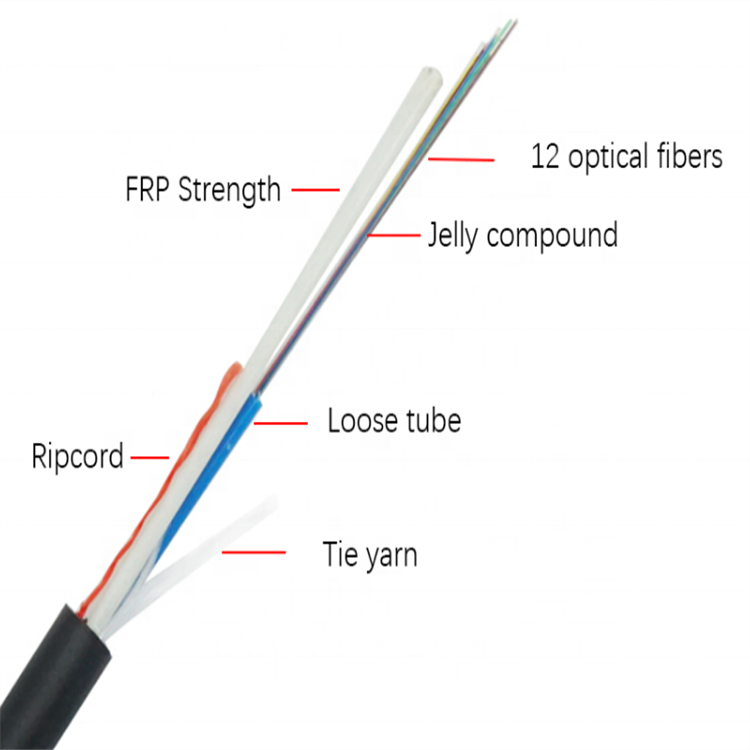

G.652D Aerial Self-Supported ASU fiber optic cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel fiber reinforced plastic (FRP) elements are placed on the two sides. The cable is covered with a single PE outer sheath. It is especially suitable for installation in aerial for long-distance communication
ASU Cable&Mini ADSS cable is Non-Armored Uni-Tube optical cable with fibers placed in loose buffer tube.The cable core is protected with jelly to prevent water intrusion and migration, and coverwith a black polyethylene out jacket. Two embedded FRP or metallic wire provide desire tension.

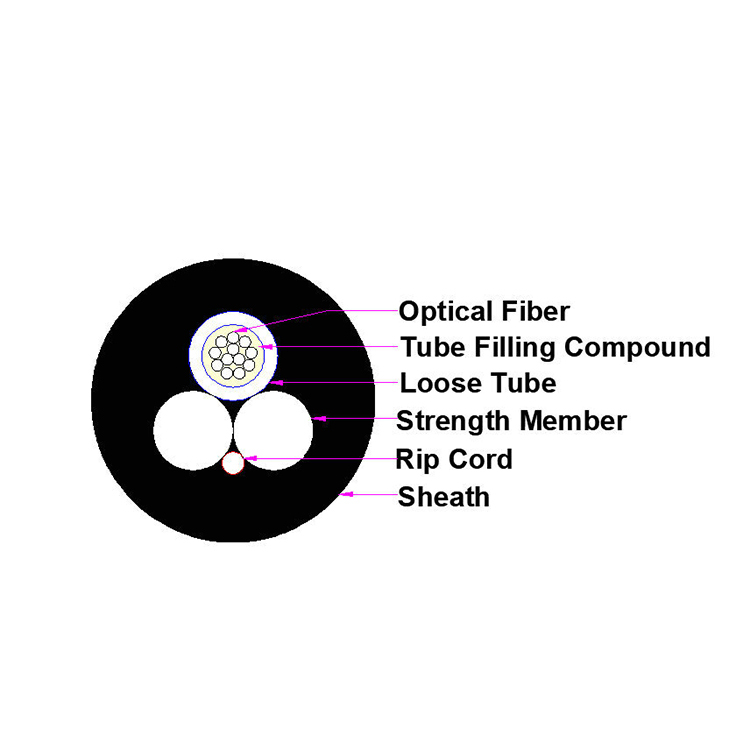

Structure: Single loose tube construction, jelly compound filled, then PE outer sheath with two non-metallic strength members combined.
Product Name:optical fibre wire price，mini adss，kinds of fiber optic cable，optic fibre，fiber optic wire price，fibre optic internet cable
·Small Size and Ligth Weight
·Two FRP as strength member to provide good tensile performance
·Gel Filled or gel free , good waterproof performance
·Low price ,high fiber capacity
·applicable for short span aerial and duct installation
GYFFY fiber Optic cable according to YD/T1258.4-2003、GB/T13993 、IECA-596、GR-409、IEC794 and so on standard
|
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
| Atenuation | @850nm |
|
| ≤3.0dB/km | ≤3.0dB/km |
| @1300nm |
|
| ≤1.0dB/km | ≤1.0dB/km | |
| @1310nm | ≤0.36dB/km |
|
|
| |
| @1550nm | ≤0.22dB/km | ≤0.23dB/km |
|
| |
| Bandwidth | @850 |
|
| ≥200MHZ·km | ≥200MHZ·km |
| @1300 |
|
| ≥500MHZ·km | ≥500MHZ·km | |
| Numerical Aperture |
|
|
| 0.200±0.015NA | 0.275±0.015NA |
| Cable cut-off wavelength λcc |
| ≤1260nm | ≤1480nm |
|
|
| Cable Core | Unit | 2F | 4F | 6F | 8F | 10F | 12F |
| No. Of Tubes |
| 1 | 1 | 1 | 1 | 1 | 1 |
| No. Of fibers | core | 2 | 4 | 6 | 9 | 10 | 12 |
| Fiber Counts in tube | core | 2 | 4 | 6 | 9 | 10 | 12 |
| Cable Diameter | mm | 6.6±0.5 | 6.8±0.5 | ||||
| Cable Weight | Kg/km | 40±10 | 45±10 | ||||
| Allowable tensile Strength | N | Span=80，1.5*P | |||||
| Allowable crush resistance | N | 1000N | |||||
| Operation temperature | ℃ | -20℃ to +65℃ | |||||
Aerial installation
Duct installation
Indoor access
Packaging: wooden spool
Productivity: 15000 Kilometer per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 15000 Kilometer per Month
Certificate: CE/ROHS/ISO9001 /ANATEL
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW,DDU
