Model No.: ASU
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Application: Outdoor Aerial
Fiber Type: G652D/G657A1/G657A2
No. Of Fiber: 2~24 cores
Outer Sheath: HDPE
Keyword: MINI ADSS CABL
Strength Member: FRP
Span: 50~100M
Certification: CE/ROHS/ISO9001/ANATEL
Product Name: ASU fiber optic cable
Cable Diameter: 6.6-7MM
| Selling Units: | Kilometer |
| Package Type: | wooden spool |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it

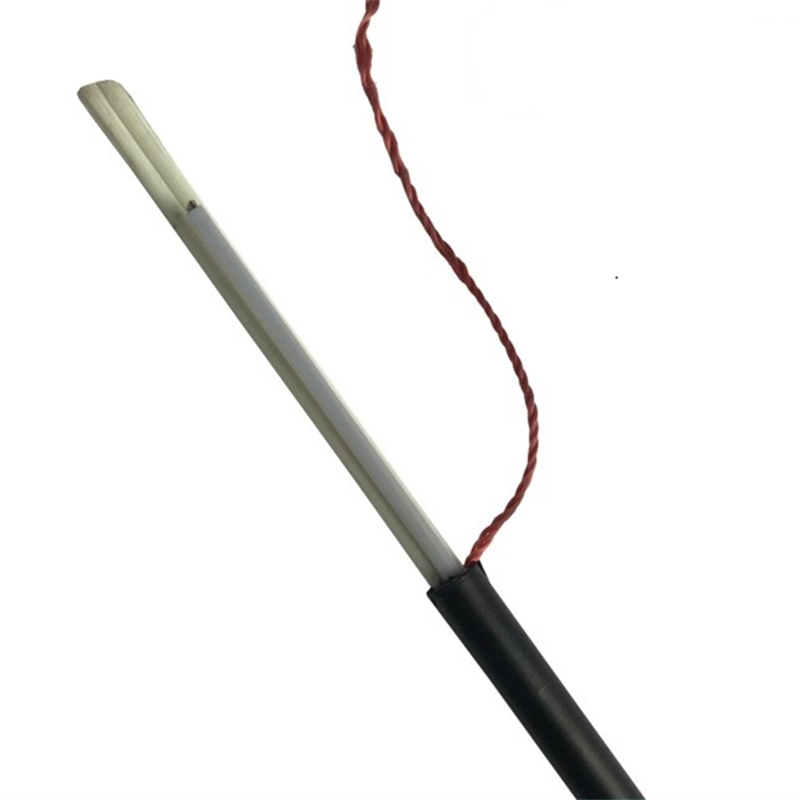

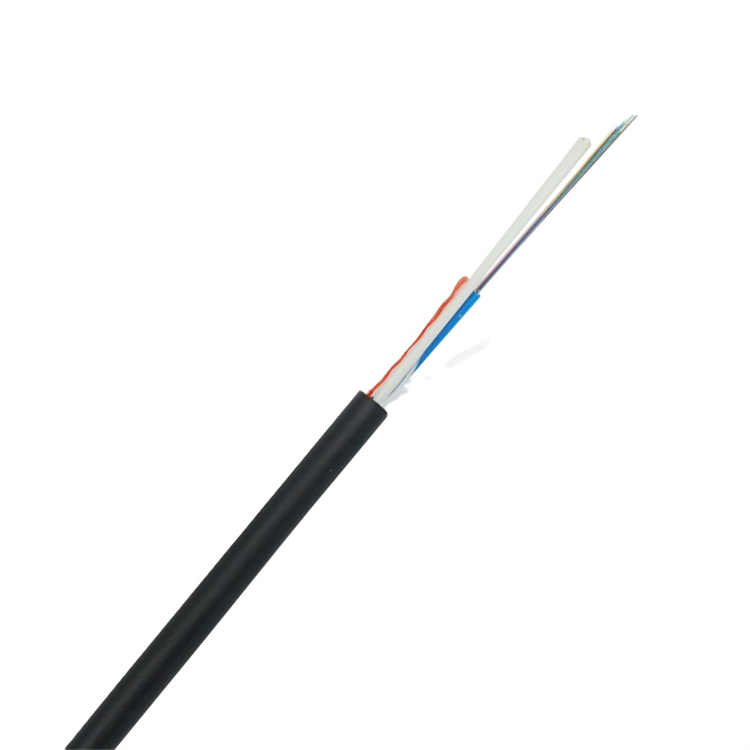

mini adss Aerial Self-Supported ASU fiber optic cable
G.652D Aerial Self-Supported ASU Fiber Optic Cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel fiber reinforced plastic (FRP) elements are placed on the two sides. The cable is covered with a single PE outer sheath. It is especially suitable for installation in aerial for long-distance communication

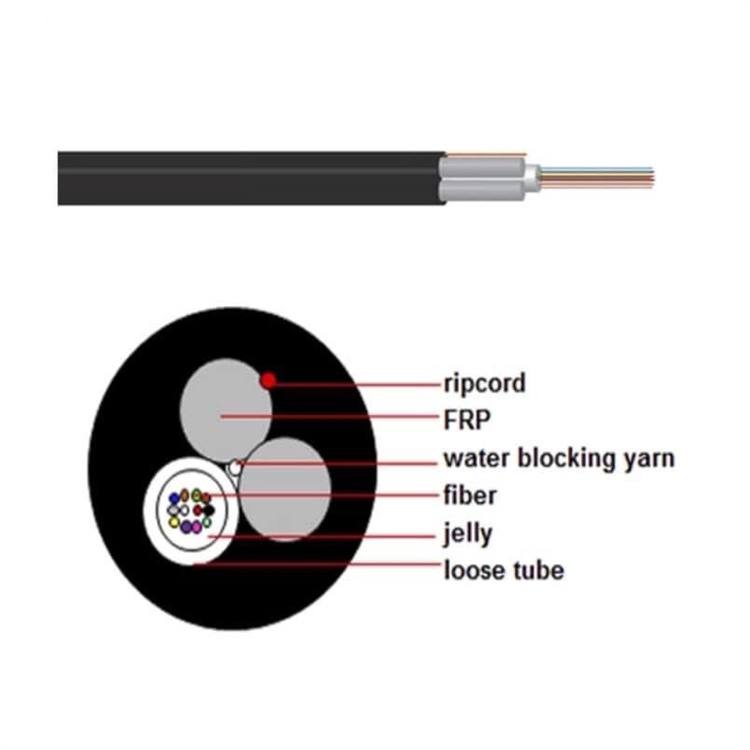

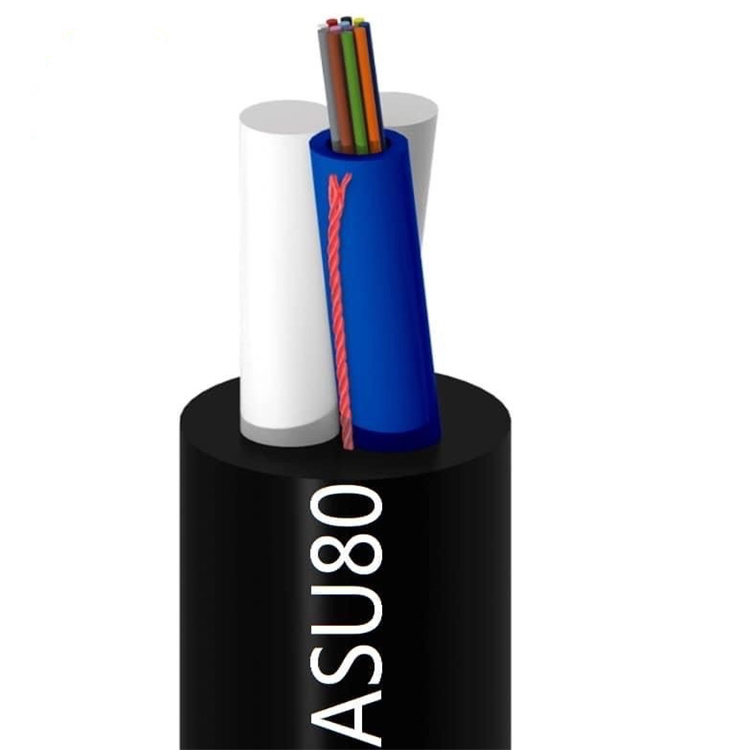

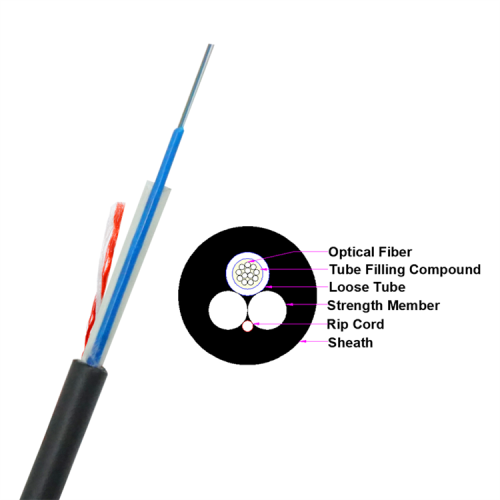

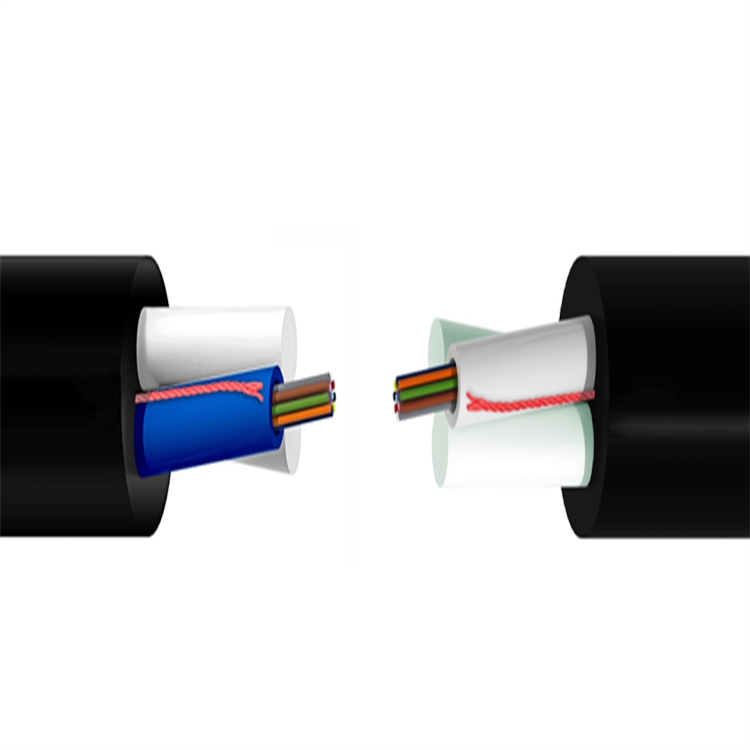

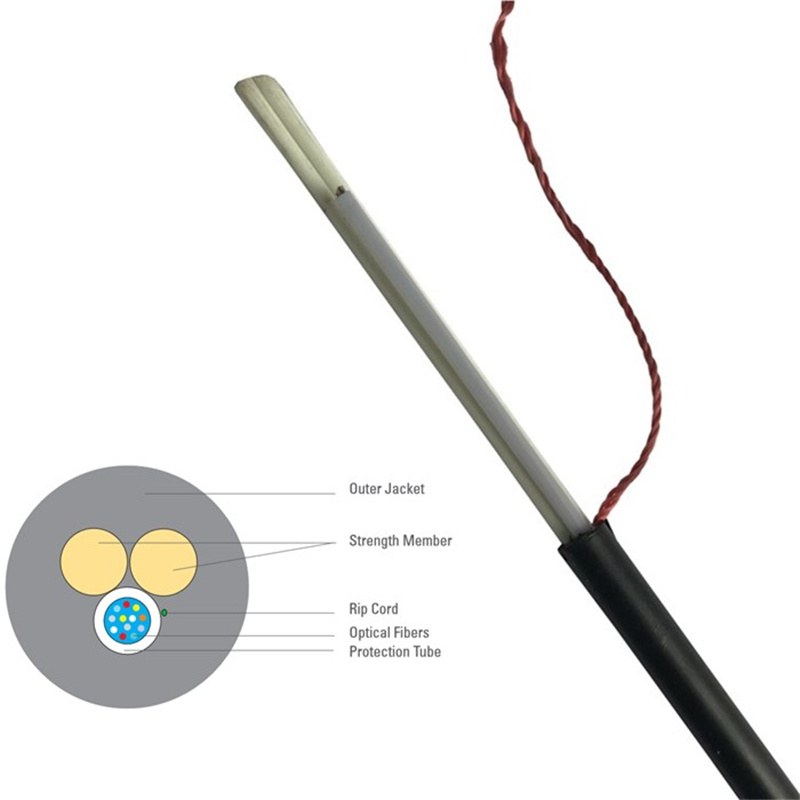

Structure: Single loose tube construction, jelly compound filled, then PE outer sheath with two non-metallic strength members combined.
Product Name:fiber optic wire cable,kinds of fiber optic cable,fo cable,mini adss fiber optic cable,ofc cable types,ASU fiber optic cable
Fiber color code:
Fiber color in each tube starts from No. 1 Blue.
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Blue | Orange | Green | Brown | Gray | White | Red | Black | Yellow | Violet | Pink | Aqua |
Cable structure and parameter
| SN | Item | Unit | Value |
| 1 | No. of fibers | count | 2/4/6/8/12 |
| 2 | FRP diameter(nominal) | mm | 2 |
| 3 | Cable diameter(±5%) | mm | 6.6 |
| 4 | Cable weight(±10%) | kg/km | 42 |
| 5 | Tension | N | 1600/800 |
| 6 | Crush | N/100mm | 1000/300 |
Installation Performance:
| Item | Material |
| Fiber Type: | ITU-T G.652 |
| Tube Loose: | PBT (polybutylene terephthalate) |
| Supporting member: | FRP (Fiber Reinforced Plastic) |
| Outer cover: | PE (polyethylene) |
| Item | Description |
| Cable diameter: | 6.8 +- 0.3mm |
| Support member diameter: | 2.0 +- 0.1mm |
| Tube loose diameter: | 2.1 +- 0.2mm |
| Cable weight: | 44 kg/km |
| Mitigation: | ≤ 0.40 dB/km 1310 nm ≤ 0.30 dB/km 1550 nm |
| Tensile strength: | 850N |
| Crush resistance: | 1000N |
| Operating Temperature: | -20°C +65°C |
Characteristic of Optical Cable:
Features:
1. Max. core: 12
2. Small volume, light weight, stable structure
3. All dielectric, anti-thunder, anti-electromagnetic interference
4. Superior mechanical and environment performance
Application:
Aerial installation
Duct installation
Indoor access
Temperature range:
Operation: – 20℃ ~ +65℃
Installation: -10℃ ~ +60℃
Storage/transportation: – 20℃ ~ +65℃
Main Mechanical & Environmental Performance Test:
| Item | Test Method | Acceptance Condition |
| Tensile Strength | - Load: Short term tension | - Fiber strain £ 0.33% |
| IEC 60794-1-2-E1 | - Length of cable: about 50m | - No fiber break and no sheath damage. |
| - Load time: 1min | ||
| Crush Test | - Load: Short term crush | - Loss change £ 0.1dB@1550nm |
| IEC 60794-1-2-E3 | - Load time: 1min | - No fiber break and no sheath damage. |
| Temperature Cycling | - Temperature: -20oC~+60oC | - Loss change £ 0.1dB/km@1550nm |
| IEC 60794-1-2-F1 | - Time of each step: 12h | - No fiber break and no sheath damage. |
| - Number of cycles: 2 | |

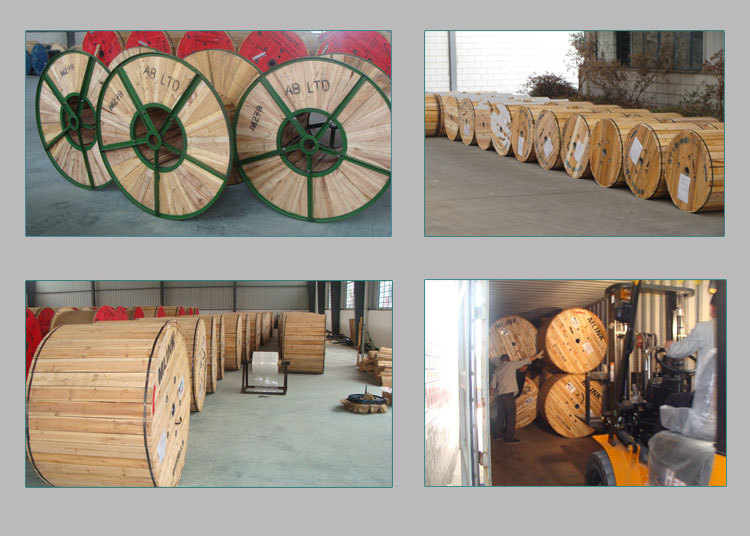

Packaging: wooden spool
Productivity: 15000 Kilometer per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 15000 Kilometer per Month
Certificate: CE/ROHS/ISO9001 /ANATEL
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW,DDU
