Model No.: ASU
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Application: Outdoor Aerial
Fiber Type: G652D/G657A1/G657A2
No. Of Fiber: 2~24 cores
Outer Sheath: HDPE
Keyword: MINI ADSS CABL
Strength Member: FRP
Span: 50~100M
Certification: CE/ROHS/ISO9001/ANATEL
Product Name: ASU fiber optic cable
Cable Diameter: 6.6-7MM
| Selling Units: | Kilometer |
| Package Type: | wooden spool |

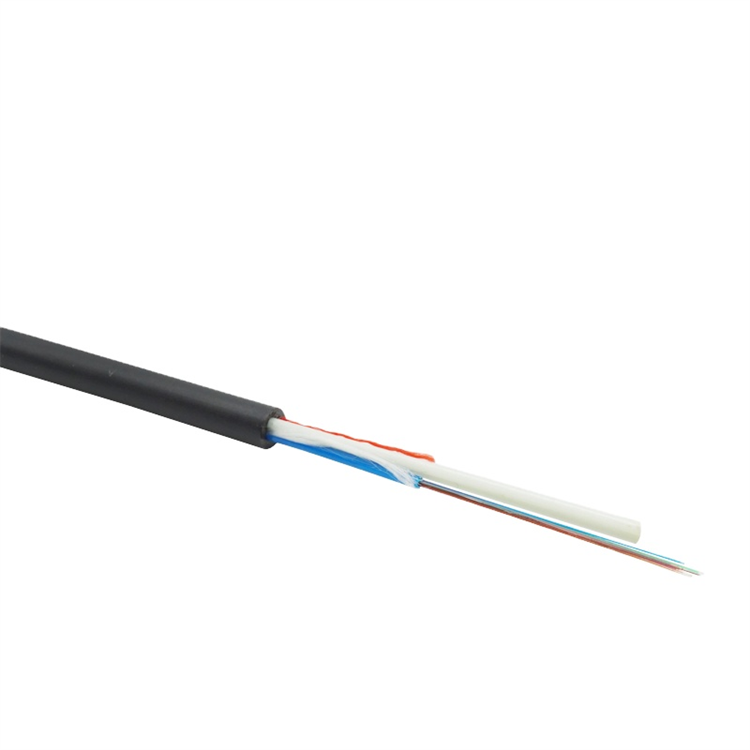

| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
80m 120m span mini adss fiber optical communication cable
G.652D Aerial Self-Supported ASU fiber optic cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel fiber reinforced plastic (FRP) elements are placed on the two sides. The cable is covered with a single PE outer sheath. It is especially suitable for installation in aerial for long-distance communication
Structure: Single loose tube construction, jelly compound filled, then PE outer sheath with two non-metallic strength members combined.
Product Name:single mode optical fiber,fiber optic wire price,fo cable,kinds of fiber optic cable, mini adss,fibre optic internet cable,fiber optic wire cable,ofc cable types,fiber optic wire price,fiber optic wire cable,mini adss

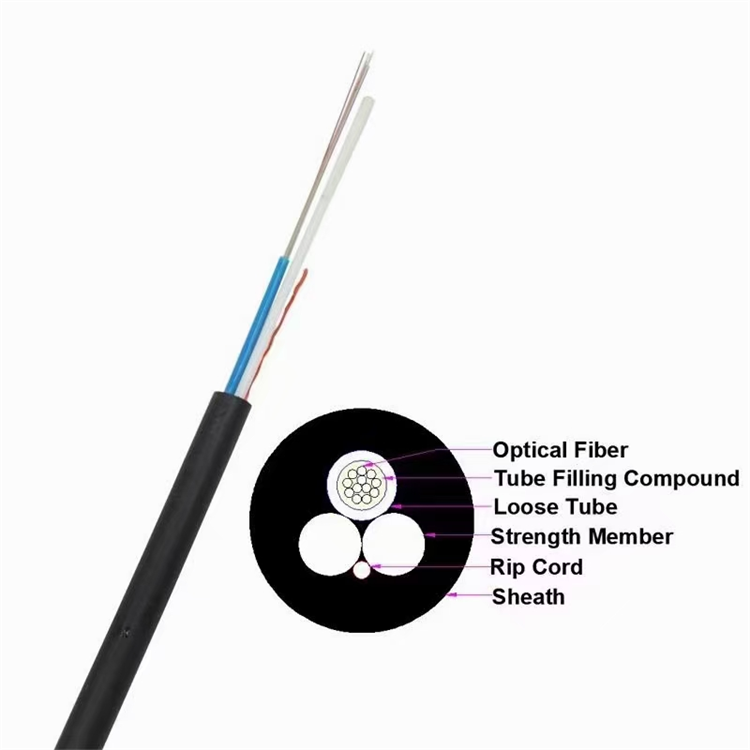

Cable Cross -Section:
Fiber color code:
Fiber color in each tube starts from No. 1 Blue.
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Blue | Orange | Green | Brown | Gray | White | Red | Black | Yellow | Violet | Pink | Aqua |
Color codes for loose tube:
| 1 |
| Nature |
Cable structure and parameter:
| SN | Item | Unit | Value |
| 1 | No. of fibers | count | 2/4/6/8/12 |
| 2 | FRP diameter(nominal) | mm | 2 |
| 3 | Cable diameter(±5%) | mm | 6.6 |
| 4 | Cable weight(±10%) | kg/km | 42 |
| 5 | Tension | N | 1600/800 |
| 6 | Crush | N/100mm | 1000/300 |
Characteristic of Optical Cable:
Min. bending radius for installation
Static: 15 x cable diameter
Dynamic: 30 x cable diameter
ASU Cable&Mini ADSS cable is Non-Armored Uni-Tube optical cable with fibers placed in loose buffer tube.The cable core is protected with jelly to prevent water intrusion and migration, and coverwith a black polyethylene out jacket. Two embedded FRP or metallic wire provide desire tension.
Application temperature range:
Operation: – 20℃ ~ +65℃
Installation: -10℃ ~ +60℃
Storage/transportation: – 20℃ ~ +65℃
Main Mechanical & Environmental Performance Test:
| Item | Test Method | Acceptance Condition |
| Tensile Strength | - Load: Short term tension | - Fiber strain £ 0.33% |
| IEC 60794-1-2-E1 | - Length of cable: about 50m | - No fiber break and no sheath damage. |
| - Load time: 1min | ||
| Crush Test | - Load: Short term crush | - Loss change £ 0.1dB@1550nm |
| IEC 60794-1-2-E3 | - Load time: 1min | - No fiber break and no sheath damage. |
| Temperature Cycling | - Temperature: -20oC~+60oC | - Loss change £ 0.1dB/km@1550nm |
| IEC 60794-1-2-F1 | - Time of each step: 12h | - No fiber break and no sheath damage. |
| - Number of cycles: 2 |
Packaging: wooden spool
Productivity: 15000 Kilometer per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 15000 Kilometer per Month
Certificate: CE/ROHS/ISO9001 /ANATEL
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW,DDU
