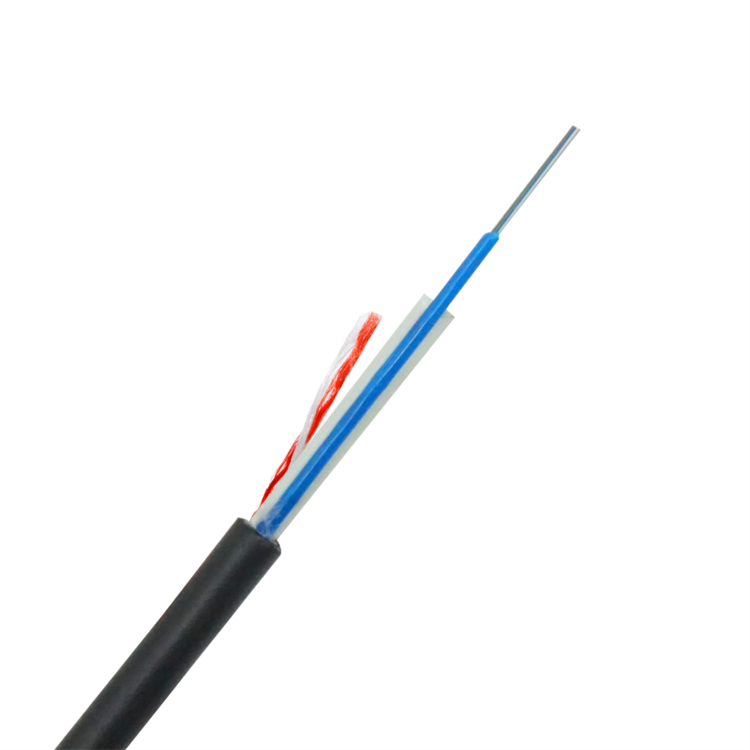

Mini Span 50-150m ADSS ASU Fiber Optic Cable
Mini Span 50-150m ADSS ASU Fiber Optic Cable
Mini Span 50-150m ADSS ASU Fiber Optic Cable
Mini Span 50-150m ADSS ASU Fiber Optic Cable
Mini Span 50-150m ADSS ASU Fiber Optic Cable
Mini Span 50-150m ADSS ASU Fiber Optic Cable
Mini Span 50-150m ADSS ASU Fiber Optic Cable
Mini Span 50-150m ADSS ASU Fiber Optic Cable
Mini Span 50-150m ADSS ASU Fiber Optic Cable

Mini Span 50-150m ADSS ASU Fiber Optic Cable

Payment Type:L/C,T/T,Paypal
Incoterm:FOB,CFR,CIF,EXW,DDU
Min. Order:1 Kilometer
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.ASU

BrandOEM

Place Of OriginChina

Number Of Cores≥ 10

ApplicationOutdoor Aerial

Fiber TypeG652D/G657A1/G657A2

No. Of Fiber2~24 cores

Outer SheathHDPE

KeywordMINI ADSS CABL

Strength MemberFRP

Span50~100M

CertificationCE/ROHS/ISO9001/ANATEL

Product NameASU fiber optic cable

Cable Diameter6.6-7MM

Packaging & Delivery
Selling Units: Kilometer
Package Type: wooden spool
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description
Aerial Mini Span 50-150m ADSS ASU fiber optic cable

ASU-120-S-12FO cable is recommended for structured cabling systems for voice, data and image traffic, with distribution on campus, between buildings that require external optical interconnections. Indicated for external aerial installations, with direct launch between poles for maximum spans of up to 120 meters.

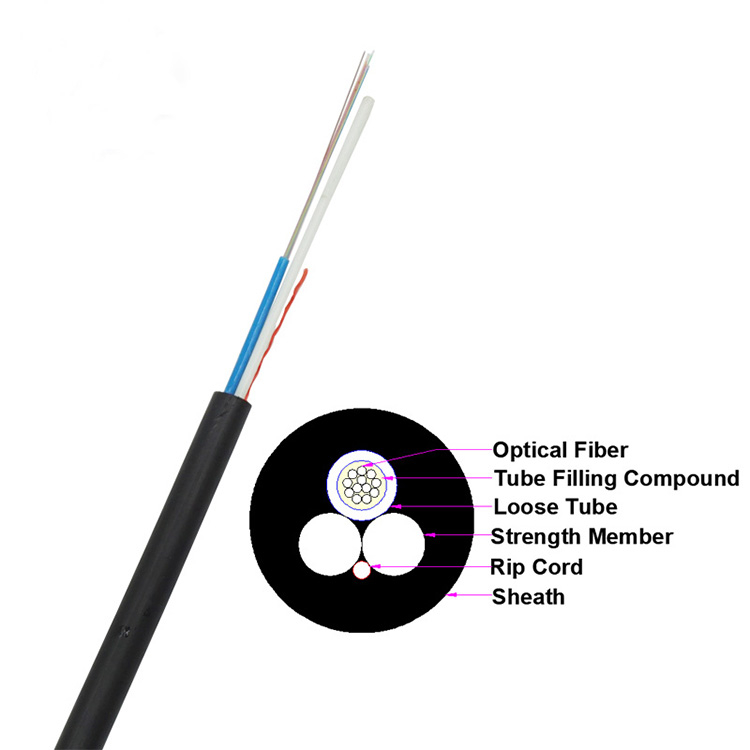

The fibers,250um, are positioned in a central tube made of a high modules plastic. The tubes are filled with a water-resistant filling compound. Two paralled FRP and outer sheath as a non-metallic strength member.

ASU Cable&Mini ADSS cable is Non-Armored Uni-Tube optical cable with fibers placed in loose buffer tube.The cable core is protected with jelly to prevent water intrusion and migration, and coverwith a black polyethylene out jacket. Two embedded FRP or metallic wire provide desire tension.

Product Name:fiber optic fiber,fiber optic wire cable,mini adss cable,ASU Fiber Optic Cable,single mode optical fiber,fiber optic wire price,fiber optic fiber,fo cable,kinds of fiber optic cable,mini adss,fibre optic internet cable
optic fibrefo cable

Features:

1. Max. core: 12
2. Small volume, light weight, stable structure
3. All dielectric, anti-thunder, anti-electromagnetic interference
4. Superior mechanical and environment performance

Installation Performance:

Item  Material  Description
 outer sheath  FOOT  FOOT
 support member  FRP  FRP
 tube loose  PBT  Tube color: natural
 Tube filling compound  Thyrotrophic gel  Water lock and moisture proof
 Fiber  Silicone based fiber  UV color fiber with: green, yellow,
  white, blue, red, violet, brown, pink,
  black, gray, orange, aqua
    Unit
 Cable diameter  mm  8.0±0.5
 Cable weight  kg/km  65±10
 Allowable tensile strength  (N)  2xP*(Weight of cable per KM)
 Permissible crush resistance  (N)  1000
 Operating Temperature  °C  -20 º C +65 º C

Main Mechanical & Environmental Performance Test:

Item Test Method Acceptance Condition
Tensile Strength - Load: Short term tension - Fiber strain  £ 0.33%
IEC 60794-1-2-E1 - Length of cable: about 50m - No fiber break and no sheath damage.
  - Load time: 1min
Crush Test - Load: Short term crush - Loss change  £ 0.1dB@1550nm
IEC 60794-1-2-E3 - Load time: 1min - No fiber break and no sheath damage.
Temperature Cycling - Temperature: -20oC~+60oC - Loss change  £ 0.1dB/km@1550nm
IEC 60794-1-2-F1 - Time of each step: 12h - No fiber break and no sheath damage.
  - Number of cycles: 2

Characteristic of Optical Cable:

  1.  Min. bending radius for installation
  2.  Static: 15 x cable diameter
  3.  Dynamic: 30 x cable diameter
  4. fiber optic wire pricefiber optic wire cable
Applications:
Aerial installation
Duct installation
Indoor access
- Installation on medium and long distance LAN backbones, where a compact and robust cable is required.

mini adssfo cable


Supply Ability & Additional Information

Packagingwooden spool

Productivity15000 Kilometer per Month

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability15000 Kilometer per Month

CertificateCE/ROHS/ISO9001 /ANATEL

HS Code8544700000

PortShenzhen,Guangzhou

Payment TypeL/C,T/T,Paypal

IncotermFOB,CFR,CIF,EXW,DDU
