OFC outdoor rated 24core fiber optic cable price
OFC outdoor rated 24core fiber optic cable price
OFC outdoor rated 24core fiber optic cable price
OFC outdoor rated 24core fiber optic cable price
OFC outdoor rated 24core fiber optic cable price
OFC outdoor rated 24core fiber optic cable price
OFC outdoor rated 24core fiber optic cable price
OFC outdoor rated 24core fiber optic cable price
OFC outdoor rated 24core fiber optic cable price

OFC outdoor rated 24core fiber optic cable price

Payment Type:L/C,T/T,Paypal
Incoterm:FOB,CFR,CIF,EXW,DDU,Express Delivery
Min. Order:1 Kilometer
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.GCYFY

BrandOEM

Place Of OriginChina

Number Of Cores≥ 10

Applicationair blowing

Fiber TypeG652D/G657A1/G657A2

Outer SheathPE PVC LSZH HDPE

Keywordmicro duct fiber cable

Allowable Tensile Load550N

StandardIEC 60794-1

Product Nameair blown fiber optic cable

TypeFTTx Solutions

Cable Overall Diameter5.6-7.8mm

No. Of Fiber2-288 Cores

Packaging & Delivery
Selling Units: Kilometer
Package Type: wooden spool
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Product description/ PRODUCT

OFC outdoor rated 24 core fiber optic cable price per meter



Large core number air blowing cable GCYFTY cable structure is the phi 250 mu m optical fibers are jacketed high modulus material made of loose tube, the loose casing pipe is filled with waterproof compound, loose tube around the center of the strengthen core twist synthetic compact round cable core, the cable core gap mid to moisture-proof waterproof yarn, then extruding PE sheathed cable.



Product Name:checking fiber optic cable,fiber cable blowing,optical wires,ofc cable price per meter,24 core fiber optic cable price,microcable,microducting,types of optical fiber,outdoor rated fiber optic cable,ofc cable price per meter,micro fiber cable,fibre communications,micro fiber optic cable air blowing

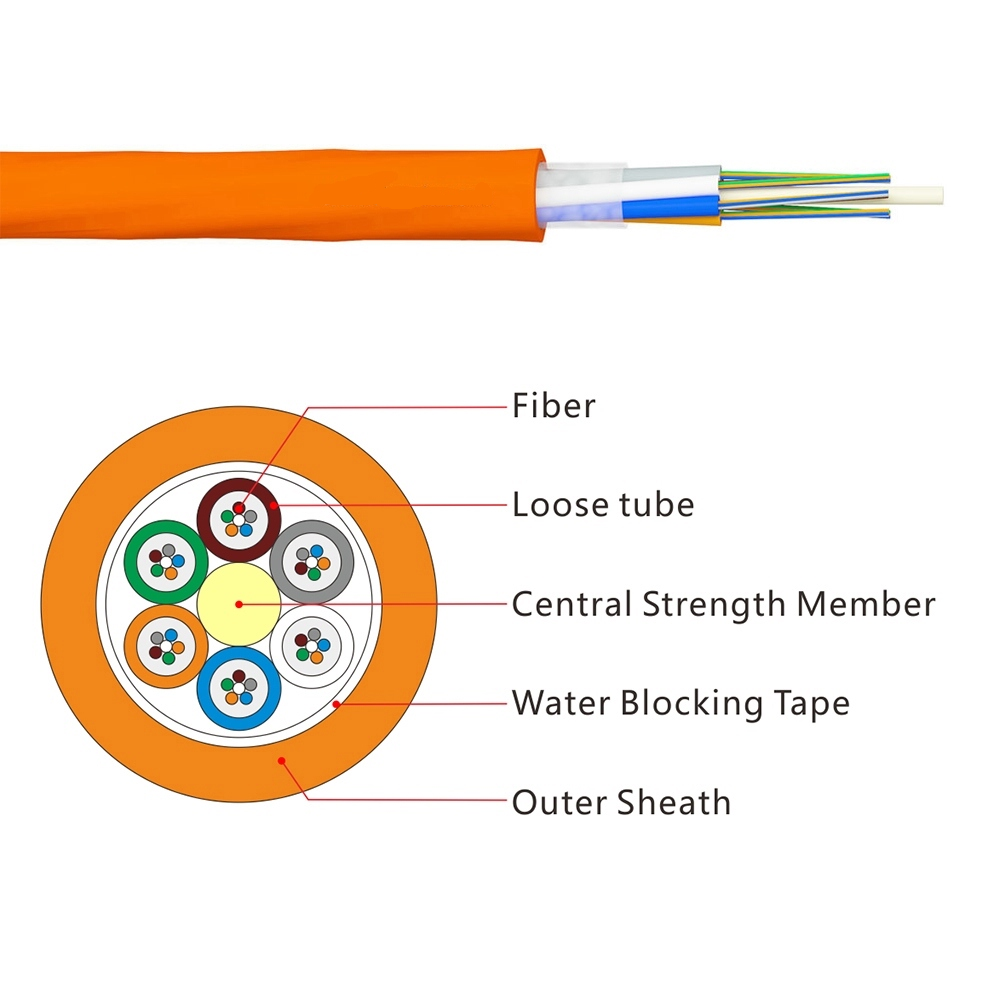

Cable Cross Section:

types of optical fiber

Product Features/ PRODUCT

·Small outside diameter, light weight, easy to lay.
·Adopt semi dry structure, construction is clean and tidy.
·Loose tube material itself has a good water resistance and high strength.
·special tube filling compound ensure a critical protection of fiber.
·Adopt the following measures to ensure the waterproof performance of the optical cable.
·Loose tube filled with special waterproof compound.
·Using dry type of water blocking material, the whole section of water resistance, to prevent the optical cable vertical seepage.

Product Application / PRODUCT

· Using microtubule resources, especially for the backbone network, access network and fiber to the home.
· Cabling costs are low and suitable for upgrading the old city and building network.

outdoor fiber optic cablefiber optic wirefiber cable price per meterfiber optic ethernet

Optical Characteristics / PRODUCT



G.652

G.655

50/125μm

62.5/125μm

attenuation      (+20℃)

@850nm





≤3.0dB/km

≤3.0dB/km

@1300nm





≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

≤0.36dB/km





@1550nm

≤0.22dB/km

≤0.23dB/km





bandwith      (Class A)

@850





≥500MHZ·km

≥500MHZ·km

@1300





≥1000MHZ·km

≥600MHZ·km

numerical aperture







0.200±0.015NA

0.275±0.015NA

Optical fiber cut off wavelength



≤1260nm

≤1480nm





Structure Parameter / PRODUCT


     Cable Type


     Fiber Count


     Cable Diameter
     mm


     Cable Weight
     Kg/km


     Tensile Strength
  Long/Short Term
     N


     Crush Resistance        Long/Short Term
     N/100m


     Bending Radius         Static/Dynamic
     mm

GCYFTY

2-60

5.0

20

1100/550

150/500

30D/15D

GCYFTY

62-72

5.5

25

1100/550

150/500

30D/15D

GCYFTY

74-96

6.7

32

1700/850

150/500

30D/15D


Storage and use temperature:-20℃+70℃

Cable Packing/ PRODUCT


  • Each single length of cable shall be reeled on Fumigated Wooden Drum
  • Covered by plastic buffer sheet
  • Sealed by strong wooden battens
  • At least 1 m of inside end of cable will be reserved for testing.
  • Drum length: Standard drum length is 3,000m±2%; as required
  • 5.2 Drum Marking(can according to the requirement in the technical specification) Manufacturer name;
  • Manufacturing year and month Roll
  • fiber cable packing
Supply Ability & Additional Information

Packagingwooden spool

Productivity15000 Kilometer per Month

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability15000 Kilometer per Month

CertificateCE/ROHS/ISO9001 /ANATEL

HS Code8544700000

PortShenzhen,Guangzhou

Payment TypeL/C,T/T,Paypal

IncotermFOB,CFR,CIF,EXW,DDU,Express Delivery
