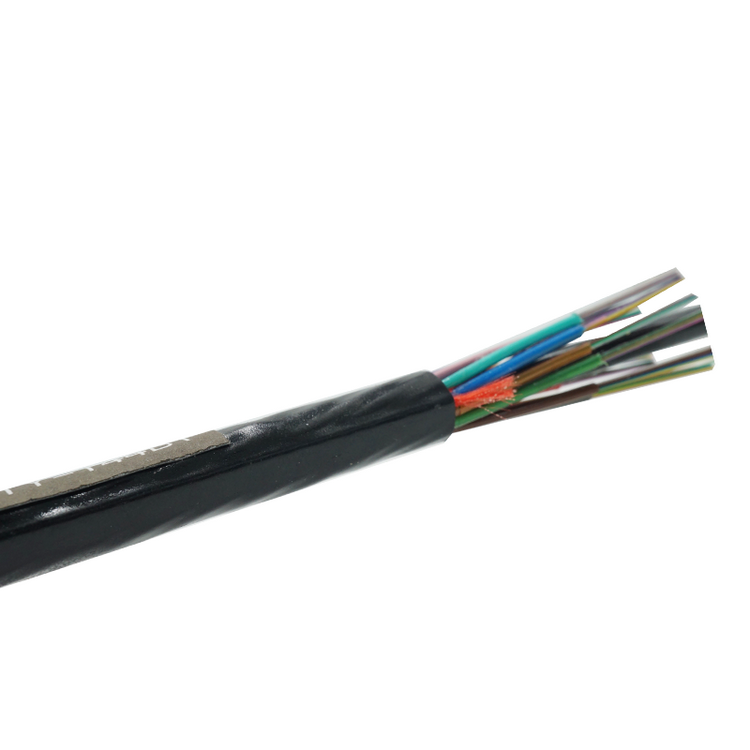

GCYFY Micro Duct Microducting Air Blown optical fiber cable

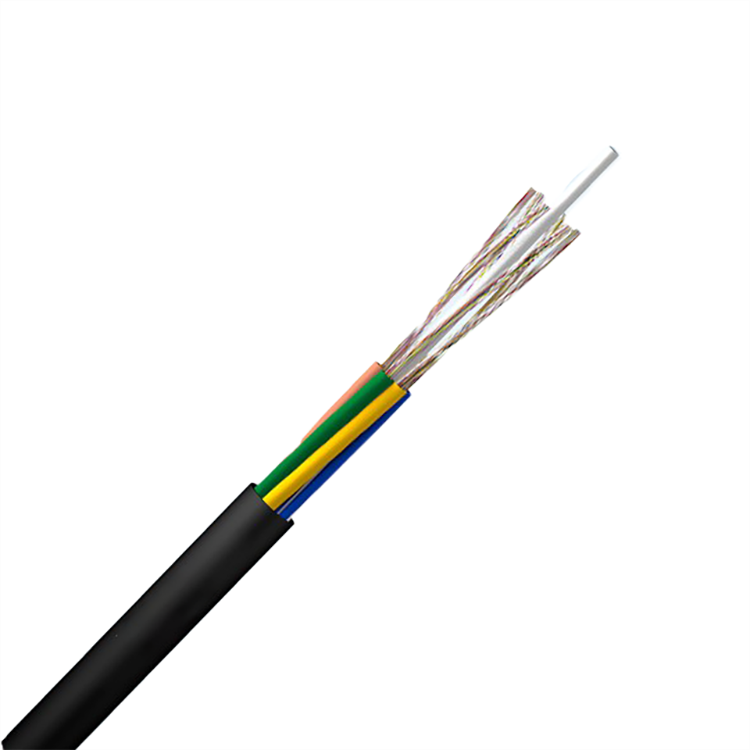

GYCFTY cable structure is a loose sleeve made of high modulus material with 250 micron optical fiber. The loose sleeve is filled with waterproof compound. The loose sleeve is reinforced around the non-metallic center to form a compact circular core. The waterproof yarn with moisture-proof effect is placed in the gap of the cable core, and then the polyethylene sheath is extruded into the cable.

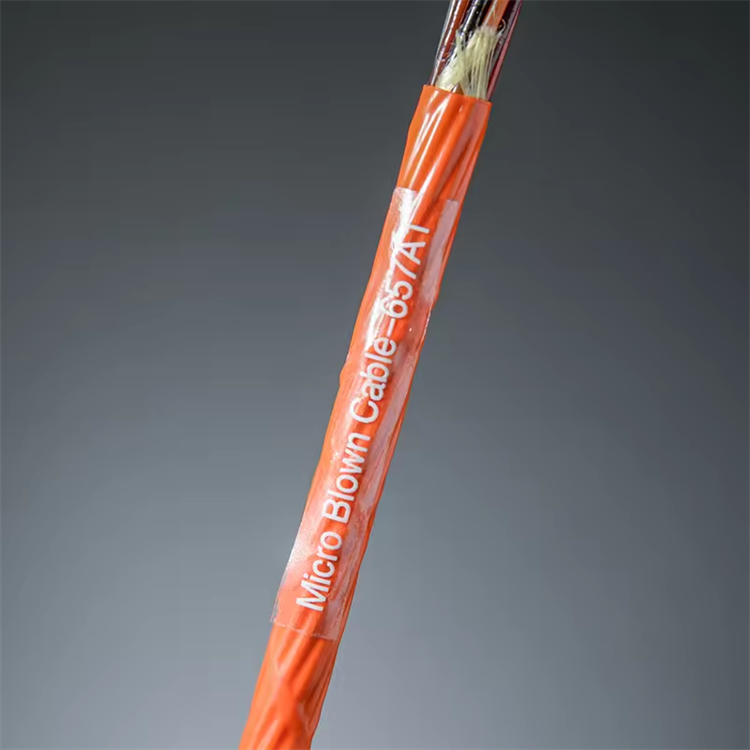

Air Blown Mini Cable (MINI) is small size, light weight, enhanced surface outer sheath fiber unit designed for blowing into micro tube bundles by air flow. The outer thermoplastic layer provides a high level of protection and excellent installation properties.It is usually applied in FTTX.Manufactures a wide range of cables from 2–144fibers with a variety of designs to meet the demands of most installation conditions. Only the highest quality materials are used in our fiber optic cables to ensure that the cable strength and optical integrity are not compromised. Rugged jacket materials and the addition of armor provide the right level of protection.

Product Name:microducting,optical fiber cable,air blown fiber,air blown fiber manufacturers,fiber optic cable,fiber optic microduct,single mode fiber patch cable,fiber optics telecommunications,fiber cable price per meter,fiber kabel,blown fiber,air blowning cable,air blown fiber optic cable,1000 meter fiber optic cable price

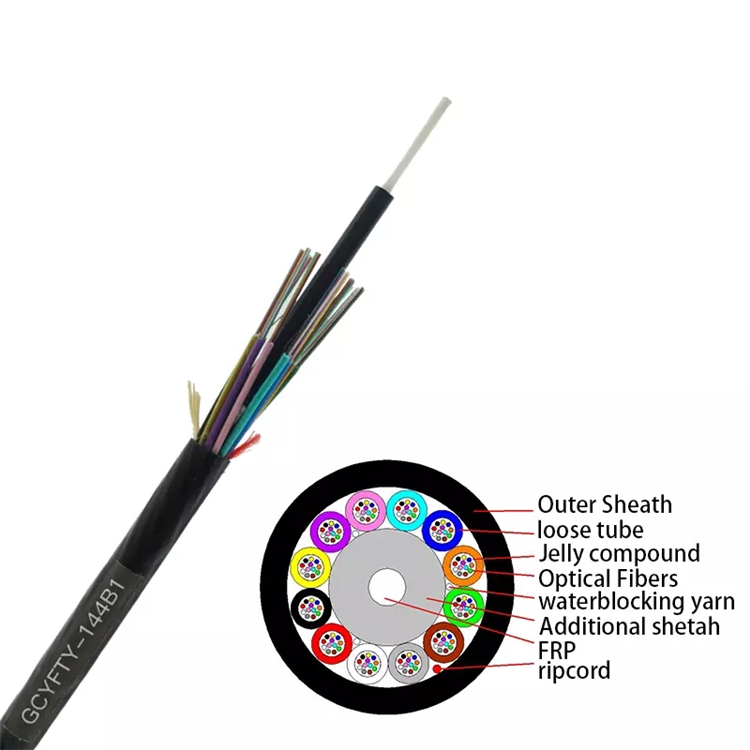

Cable Cross -Section:

Specification:

Fiber count (F)	Nominal diameter (mm)	Nominal weight (kg/km)	Max tensile strength (N)	Temperature (℃)
12	5.2±0.1	25	500	-40 to +70
24	5.2±0.1	25	500
36	5.2±0.1	25	500
48	5.2±0.1	25	500
60	5.2±0.1	25	500
72	5.2±0.1	25	500
96	6.1±0.1	35	1000
144	7.9±0.1	57	1200
192	7.9±0.1	55	500	-20 to +70
216	7.9±0.1	55	500
288	9.4±0.1	78	1000

Blowing Test:

Fiber count (F)	Blowing machine	Suitable microduct (mm)	Blowing distance in 10/8 duct (m)	Blowing distance in 12/10 duct (m)	Blowing distance in 14/12 duct (m)
12 to 72	PLUMETTAZ PR-140 MiniJet-400 15bar	10/8 or 12/10	1800	2300	/
96		10/8 or 12/10	1800	2300	/
144		12/10	/	1200	/
192 to 216		12/10	/	1500	/
288		14/12	/	/	1500

Mechanical Performance:

Item	Testing Method	Testing Results		Specified Value
Tension performance	IEC 60794-1-2-E1	Optical fiber strain	Additional attenuation	Max. Tensile Strength = Short term Allowable tension ≈3×(Long term Allowable Tension)
		Short term：≤0.3％ Long term：≤0.1％	Short term：<0.1 dB, reversible； Long term：≤0.03 dB
Crush	IEC 60794-1-2-E3	Short term：<0.10 dB, reversible； Long term：≤0.03 dB； The outer sheath has no visible crack.		Short term crushing force =800 N Long term crushing force =400 N
Repeated bending	IEC 60794-1-2-E6	After test, ≤0.03 dB； The outer sheath has no visible crack.		R=20 outer Φ
				24～72:Bending load =50N
				96～144:Bending load =100N
				Bending times =30
Torsion	IEC 60794-1-2-E7	After test, ≤0.03 dB； The outer sheath has no visible crack.		Torsion angle=±180º
				24～72:Torsion load =50N
				96～144: Torsion load =100N
				Torsion times =10
Cable bend	IEC 60794-1-2-E11A	After test, The optical fiber can’t be broken； The outer sheath has no visible crack.		R=20 outer Φ 10Turns Cycles times =5
All optical testing proceeded at 1550 nm

Environment Performance:

Item	Testing Method	Testing Results
Temperature cycling	IEC 60794-1-2-F1	Allowable additional attenuation (1550nm)
		G.652B	G.652D	G.655
		≤0.10 dB/km, reversible；
Water penetration	Water column: 1m, 1m cable, Period:24 hours	No water leak through the open end of cable
Filling compound flow	70℃，Period:24 hours	No compound flow from the cable

Features:

♦ Small diameter, light weight, moderate hardness and softness, easy to bend when air blowing laying, easy to operate;
♦ All non-metallic structure, no need of grounding, long air blowing distance;
♦ Make full use of pipe hole resources, use air-blown laying facility to speed up construction, and lay a long distance at a time;
♦ With the growth of communication business, it can be blown into optical cables in batches, and the investment can be carried out step by step, so as to reduce the early investment;
♦ Micro-cables can be blown out to facilitate the replacement of new types of fiber optic cables in the future and keep ahead in technology;
♦ Suitable for construction in crowded metropolitan area network pipelines, avoiding destructive excavation in the past;
♦ Suitable for backbone network, metropolitan area network and access network;

Standards:

Unless otherwise specified in this specification, all requirements shall be mainly in accordance with the following standard specifications.
Optical fiber:ITU-T G.652D、IEC 60794-2-50
Optical cable :IEC 60794-5、IEC60794-1-2

Packing and Marking:

Each single length of cable shall be reeled on Fumigated Wooden Drum
Covered by plastic buffer sheet
Sealed by strong wooden battens
At least 1 m of inside end of cable will be reserved for testing.
Drum length: Standard drum length is 3，000m±2%; as required
5.2 Drum Marking(can according to the requirement in the technical specification) Manufacturer name;
Manufacturing year and month Roll—direction arrow;
