96cores 144cores Microcable Blown Fiber Optic Cable GCYFY

96cores 144cores Microcable Blown Fiber Optic Cable GCYFY

Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW,DDU,Express Delivery
Min. Order:	1 Kilometer
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: GCYFY

Brand: OEM

Place Of Origin: China

Number Of Cores: ≥ 10

Application: air blowing

Fiber Type: G652D/G657A1/G657A2

Outer Sheath: PE PVC LSZH HDPE

Keyword: micro duct fiber cable

Allowable Tensile Load: 550N

Standard: IEC 60794-1

Product Name: air blown fiber optic cable

Type: FTTx Solutions

Cable Overall Diameter: 5.6-7.8mm

No. Of Fiber: 2-288 Cores

Packaging & Delivery

Selling Units:	Kilometer
Package Type:	wooden spool
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

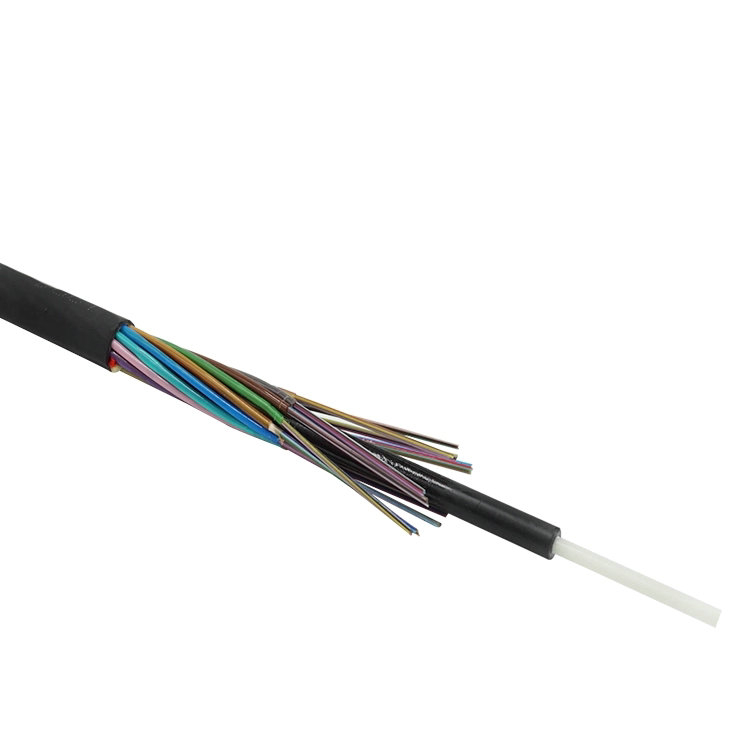

96cores 144cores microcable blown fiber optic cable GCYFY

The Air Blown Micro Cable is constructed with FRP Central Strength Member, Aramid yarn strength member for better tensile strength, high density polyethylene outer Jacket. Non-metallic structure and good electro-magnetic resistance makes it a good choice for use in High voltage and thunder prone areas. In addition, the cable features a broad operating temperature range and water-blocking, making it suitable for indoor/outdoor duct installations.

Air Blown Mini Cable (MINI) is small size, light weight, enhanced surface outer sheath fiber unit designed for blowing into micro tube bundles by air flow. The outer thermoplastic layer provides a high level of protection and excellent installation properties.It is usually applied in FTTX.Manufactures a wide range of cables from 2–144fibers with a variety of designs to meet the demands of most installation conditions. Only the highest quality materials are used in our fiber optic cables to ensure that the cable strength and optical integrity are not compromised. Rugged jacket materials and the addition of armor provide the right level of protection.

Product Name:optical fiber in networking，blown fiber optic cable，microcable，microducting，optical fiber cable，air blown fiber，air blown fiber manufacturers，fiber optic cable，fiber optic microduct，single mode fiber patch cable

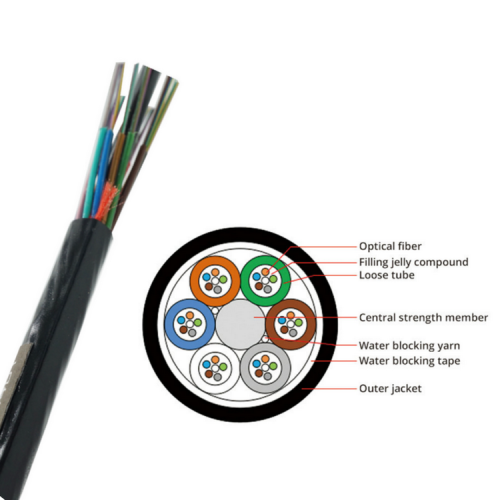

Cable Cross -Section:

Technique Parameters:

ITEM	Value
Fiber count	6~72 Cores
Tube count	Up to 6
Cable OD	6.0±0.3mm
Loose tube OD	1.65±0.05mm
Max. Tensile(Short term)	600N
Max. Tensile(Long term)	300N
Max. Crushing Resistance(Short term)	1000N/100 mm
Max. Crushing Resistance(Long term)	300N/100 mm
Sheath Material	Standard: HDPE. Optional: PE
Min. Bending Radius(Dynamic)	20D
Min. Bending Radius(Static)	10D
Strength Member	1.6mm FRP
Standard Jacket Color	Black
Environmental Protection	RoHS COMPLIANT
Storage Temperature	-40~70ºC
Operation Temperature	-40~70ºC
Installation Temperature	0 ~ 50ºC

Feature:

1.Using centre tube design less than 24f to get more compact structure
2.Small outer diameter, light weight , low friction sheath material
3.Accurate excess fibre length control to get stable cable performance
4.Stable temperature cycling performance by special process control
5.High speed, long distance air-blowing , efficient installation
6.Optional LSZH outer sheathing, applicable for access to indoor
7.Optional 200μm mini optical fibre to get smaller outer diameter

Standards:

Unless otherwise specified in this specification, all requirements shall be mainly in accordance with the following standard specifications.
Optical fiber:ITU-T G.652D、IEC 60794-2-50
Optical cable :IEC 60794-5、IEC60794-1-2

Packing and Marking:

Each single length of cable shall be reeled on Fumigated Wooden Drum
Covered by plastic buffer sheet
Sealed by strong wooden battens
At least 1 m of inside end of cable will be reserved for testing.
Drum length: Standard drum length is 3，000m±2%; as required
5.2 Drum Marking(can according to the requirement in the technical specification) Manufacturer name;
Manufacturing year and month Roll—direction arrow;
Drum length; Gross/net weight;
