Outdoor GCYFY Air Blown Micro Duct Fiber Optic Cable

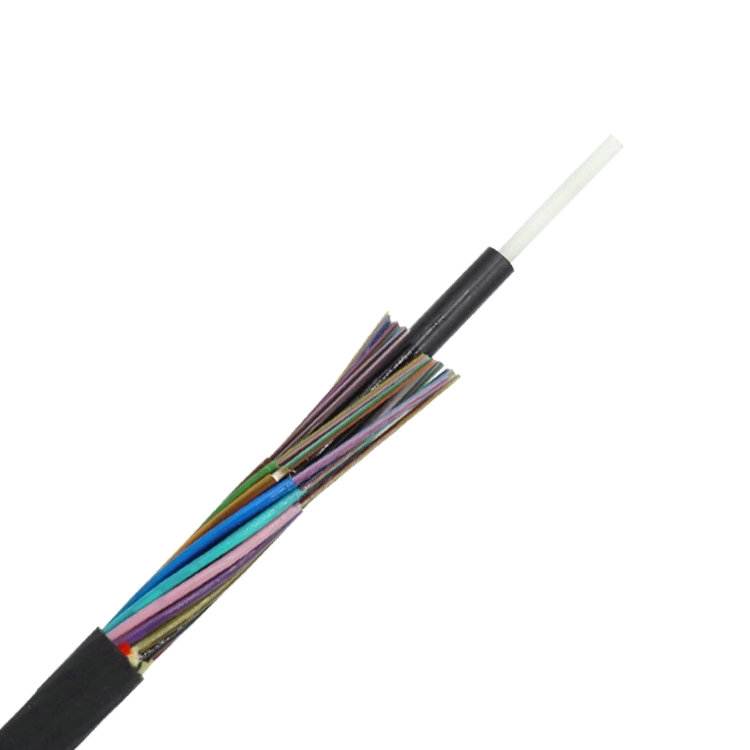

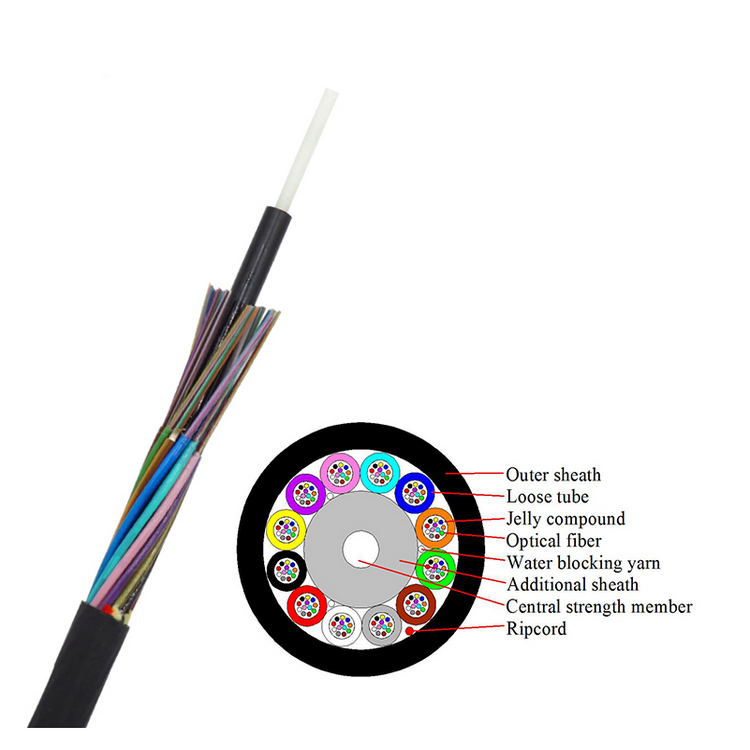

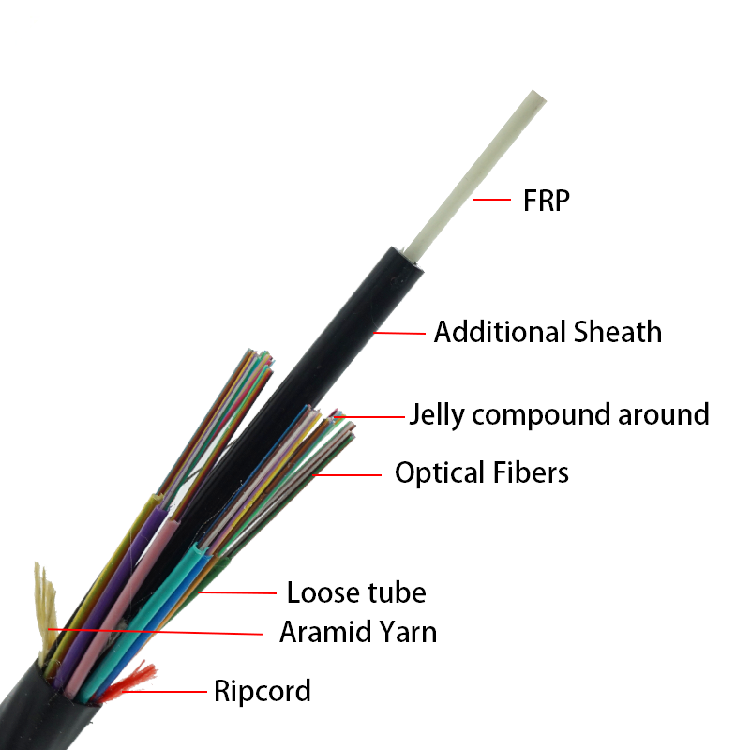

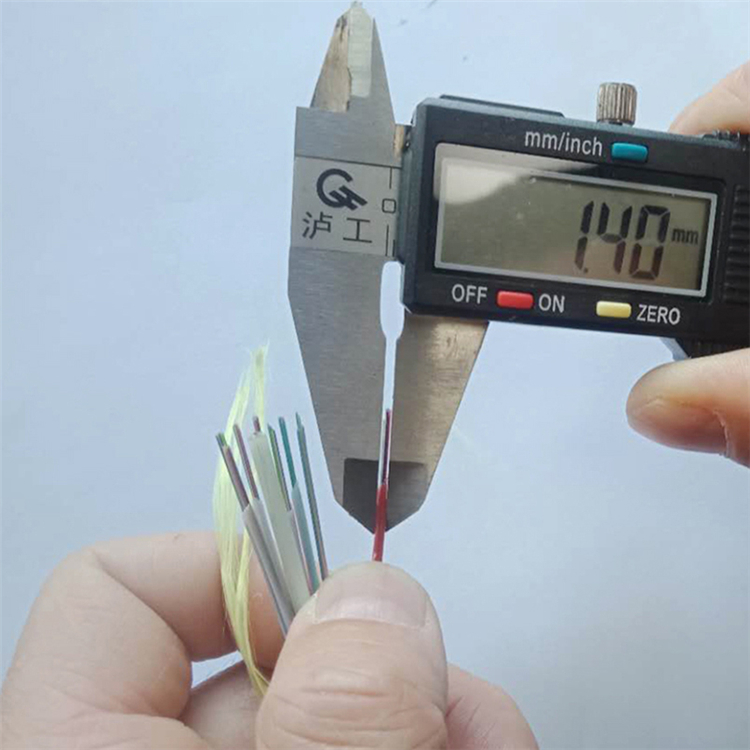

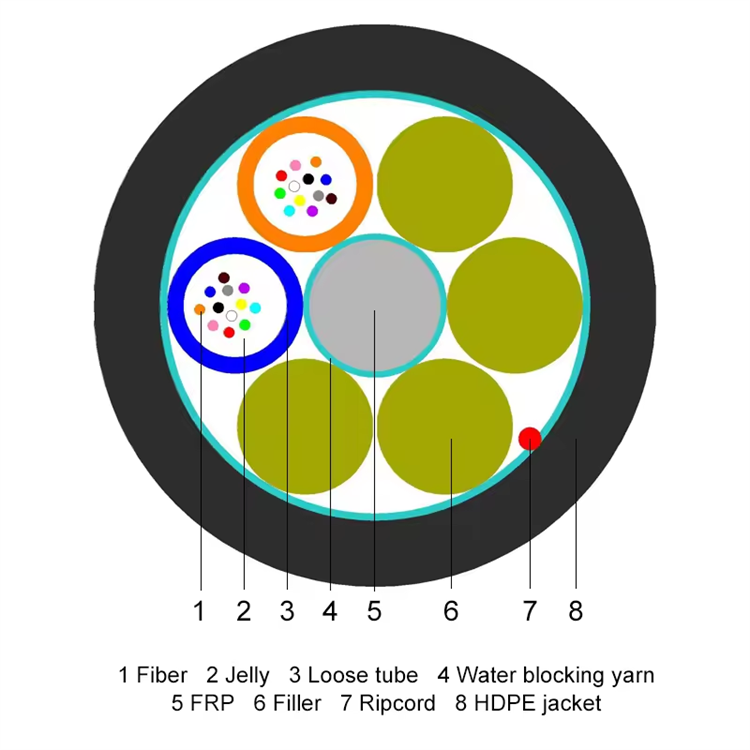

GCYFY Stranded Loose Tube Air-blown Micro Cable Optical fibres are housed in loose tubes that are made of high-modulus plastic and filled with tube filling compound. The tubes (and fillers) are stranded around a non-metallic central strength member andsurrounded with dry water-blocking material to form a cable core. An extremely thin outer PE sheath is extruded outside the core.

Air Blown Mini Cable (MINI) is small size, light weight, enhanced surface outer sheath fiber unit designed for blowing into micro tube bundles by air flow. The outer thermoplastic layer provides a high level of protection and excellent installation properties.It is usually applied in FTTX.Manufactures a wide range of cables from 2–144fibers with a variety of designs to meet the demands of most installation conditions. Only the highest quality materials are used in our fiber optic cables to ensure that the cable strength and optical integrity are not compromised. Rugged jacket materials and the addition of armor provide the right level of protection.

Product Name:Outdoor Fiber Optic Cable，fiber optic cable installation，fiber cable price per meter，air blown fiber manufacturers，optical fiber in networking，blown fiber optic cable

Specification:

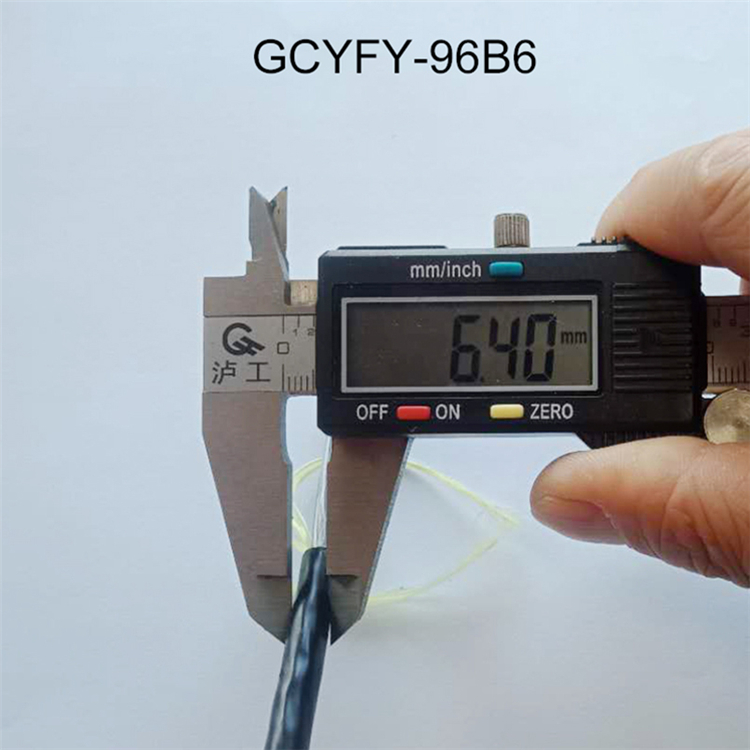

Fiber count (F)	Nominal diameter (mm)	Nominal weight (kg/km)	Max tensile strength (N)	Temperature (℃)
12	5.2±0.1	25	500	-40 to +70
24	5.2±0.1	25	500
36	5.2±0.1	25	500
48	5.2±0.1	25	500
60	5.2±0.1	25	500
72	5.2±0.1	25	500
96	6.1±0.1	35	1000
144	7.9±0.1	57	1200
192	7.9±0.1	55	500	-20 to +70
216	7.9±0.1	55	500
288	9.4±0.1	78	1000

Blowing Test:

Fiber count (F)	Blowing machine	Suitable microduct (mm)	Blowing distance in 10/8 duct (m)	Blowing distance in 12/10 duct (m)	Blowing distance in 14/12 duct (m)
12 to 72	PLUMETTAZ PR-140 MiniJet-400 15bar	10/8 or 12/10	1800	2300	/
96		10/8 or 12/10	1800	2300	/
144		12/10	/	1200	/
192 to 216		12/10	/	1500	/
288		14/12	/	/	1500

Mechanical Performance:

Item	Testing Method	Testing Results		Specified Value
Tension performance	IEC 60794-1-2-E1	Optical fiber strain	Additional attenuation	Max. Tensile Strength = Short term Allowable tension ≈3×(Long term Allowable Tension)
		Short term：≤0.3％ Long term：≤0.1％	Short term：<0.1 dB, reversible； Long term：≤0.03 dB
Crush	IEC 60794-1-2-E3	Short term：<0.10 dB, reversible； Long term：≤0.03 dB； The outer sheath has no visible crack.		Short term crushing force =800 N Long term crushing force =400 N
Repeated bending	IEC 60794-1-2-E6	After test, ≤0.03 dB； The outer sheath has no visible crack.		R=20 outer Φ
				24～72:Bending load =50N
				96～144:Bending load =100N
				Bending times =30
Torsion	IEC 60794-1-2-E7	After test, ≤0.03 dB； The outer sheath has no visible crack.		Torsion angle=±180º
				24～72:Torsion load =50N
				96～144: Torsion load =100N
				Torsion times =10
Cable bend	IEC 60794-1-2-E11A	After test, The optical fiber can’t be broken； The outer sheath has no visible crack.		R=20 outer Φ 10Turns Cycles times =5
All optical testing proceeded at 1550 nm

Environment Performance:

Item	Testing Method	Testing Results
Temperature cycling	IEC 60794-1-2-F1	Allowable additional attenuation (1550nm)
		G.652B	G.652D	G.655
		≤0.10 dB/km, reversible；
Water penetration	Water column: 1m, 1m cable, Period:24 hours	No water leak through the open end of cable
Filling compound flow	70℃，Period:24 hours	No compound flow from the cable

Feature:

• Perfect cable structure with high fiber density
• Accurate fiber length balance to ensure stable performance
• No gel in cable core for water blocking
• Sheath structure innovation to enhance blowing performance
• Greater blowing distance
• Fiber: G.G652D, G.657A1, G.657A2

Standards:

• Unless otherwise specified in this specification, all requirements shall be mainly in accordance with the following standard specifications.
• Optical fiber:ITU-T G.652D、IEC 60794-2-50
• Optical cable :IEC 60794-5、IEC60794-1-2

Packing and Marking:

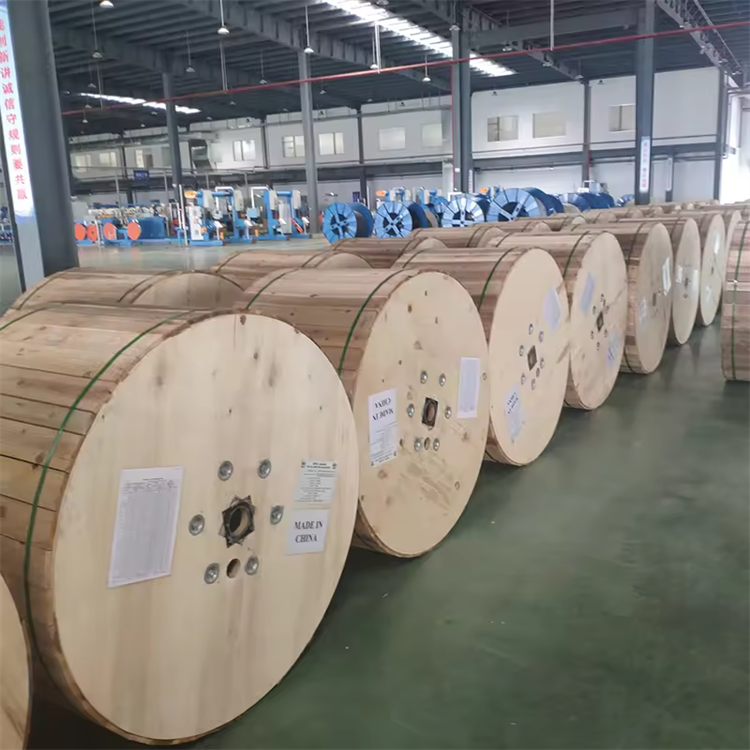

• Each single length of cable shall be reeled on Fumigated Wooden Drum
• Covered by plastic buffer sheet
• Sealed by strong wooden battens
• At least 1 m of inside end of cable will be reserved for testing.
• Drum length: Standard drum length is 3，000m±2%; as required
• 5.2 Drum Marking(can according to the requirement in the technical specification) Manufacturer name;
• Manufacturing year and month Roll—direction arrow;
• Drum length; Gross/net weight;
•
•
