Model No.: GYFXTBY
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Application: Communication
Fiber Type: G652D/G657A1/G657A2,OM3,OM4
No. Of Fiber: 1-24
Out Sheath: HDPE/LSZH Sheath/flame Retardant Sheath/anti-roden
Loose Tube Material: PBT
Keyword: fiber optic cable
Laying Method: Aerial
Drop Cable Structure: central tube
Certification: CE/ROHS/ISO9001 /ANATEL
Strength Member: FRP
| Selling Units: | Kilometer |
| Package Type: | wooden spool |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it

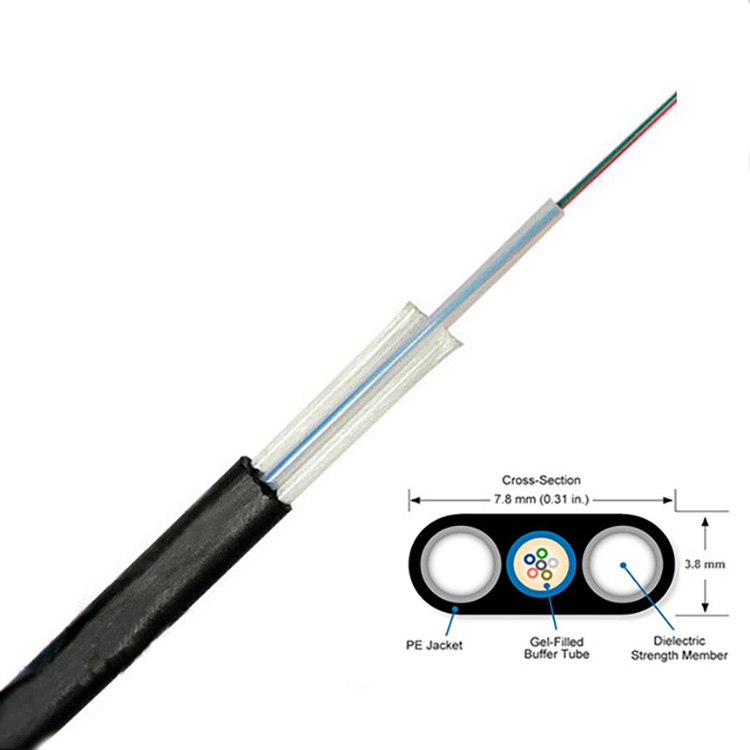

A. Colored fiber 1-24 cores with jelly filled in center loose tube
B. PBT loose tube for protection
C. Water blocking tape applied (Optional)
D. 1.0-2.3mm FRP at the two sides for tension purpose and bring solution for aerial application
E. The cable is finished with black PE jacket
| ||||||||||||||||||||||||||||||||||||||||||||
| Items | Descriptions | |
|
Fiber | Fiber type | G.652D |
| Fiber count | 1~24 | |
| Color | Blue/Orange/Green/Brown/Grey/White/Red/Black/Yellow/Violet/Pink/Aqua | |
|
Loose tube | Material | PBT |
| Diameter | 1-12 cores:1.8 ±0.1mm 24 cores: 2.4 ±0.1mm | |
| Water-blocking material | Gel-filled | |
| Strength member | Material | FRP |
| Diameter | 1-12 cores:1.0 ±0.1mm 24 cores: 1.5 ±0.1mm | |
|
Outer jacket | Material | MDPE |
| Color | Black | |
| Thickness | 1-12 cores: 3.5 ±0.1mm 24 cores: 4.2 ±0.1mm | |
| Diameter | 1-12 cores: 6.5 ±0.2 mm 24 cores: 8.5 ±0.2 mm | |
| Items | Descriptions | |
| Tensile Strength (IEC 60794-1-2 E1) | short-term | 1000N |
| long-term | 600N | |
| Crush (IEC 60794-1-2 E3) | short-term | 1000N/100mm |
| long-term | 300N/100mm | |
| Temperature Range (IEC 60794-1-2 F1) | Storage/Operation | -40℃-+70℃ |
| Installation | -10℃-+50℃ | |
| Bending Radius | Static | 10D |
| Dynamic | 20D | |
| RoHS (2011/65/EU) | Compliant | |
Packaging: wooden spool
Productivity: 15000 Kilometer per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 15000 Kilometer per Month
Certificate: CE/ROHS/ISO9001 /ANATEL
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DDP,DDU,Express Delivery
