aerial 6core flat sm drop fiber optic cable

aerial 6core flat sm drop fiber optic cable

Payment Type:	L/C,T/T,Paypal,Cash
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DDP,DDU,Express Delivery
Min. Order:	1 Kilometer
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: GYFXTBY

Brand: OEM

Place Of Origin: China

Number Of Cores: ≥ 10

Application: Communication

Fiber Type: G652D/G657A1/G657A2,OM3,OM4

No. Of Fiber: 1-24

Out Sheath: HDPE/LSZH Sheath/flame Retardant Sheath/anti-roden

Loose Tube Material: PBT

Keyword: fiber optic cable

Laying Method: Aerial

Drop Cable Structure: central tube

Certification: CE/ROHS/ISO9001 /ANATEL

Strength Member: FRP

Packaging & Delivery

Selling Units:	Kilometer
Package Type:	wooden spool
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

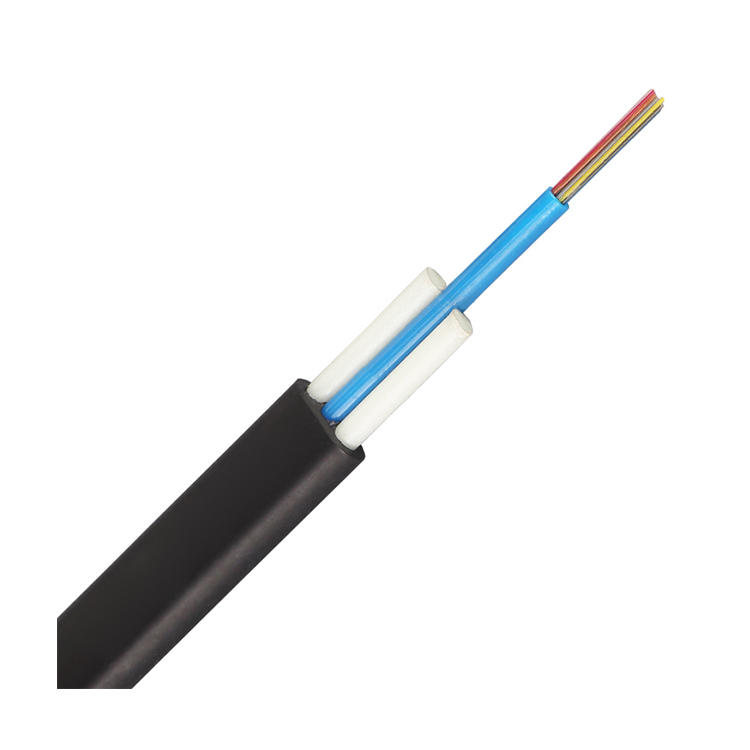

burying aerial 6 core flat sm drop fiber optic cable

The cable consists of a central loose tube, filled with a synthetic oil based jelly, non-nutritive to fungus, electrically non-conductive, homogeneous and free from dirt and foreign matter, containing up to 24 optical fibers.

Two Fiber Reinforced Plastics (FRP) elements are longitudinally applied parallel with the tube, and an outer black PE sheath, UV resistant.

Product Name:flat drop cable,6 core sm fiber cable,burying fiber optic cable,good quality ethernet cable,fiber manufacturers,fiber optic material,24f fiber optic cable

Cable Cross Section:

Features:

* Compact design for self-supporting use

* 2 FRP supports long span

* Light weight and small diameter, easy for installation

* Loose tube with gel filled give good protection for the fiber

A. Colored fiber 1-24 cores with jelly filled in center loose tube
B. PBT loose tube for protection
C. Water blocking tape applied (Optional)
D. 1.0-2.3mm FRP at the two sides for tension purpose and bring solution for aerial application
E. The cable is finished with black PE jacket

2.The properties of single mode fiber（ITU-TG .652D）

Items	Description
	Before cable	After cable
atten.1310	≤0.35dB/km	≤0.36dB/km
atten.1383	≤0.35dB/km	≤0.36dB/km
atten.1550	≤0.21dB/km	≤0.22dB/km
atten.1625	≤0.23dB/km	≤0.24dB/km
Cable cut-off wavelength	≤1260 nm
Zero-dispersion wavelength	1300 ~ 1324 nm
Zero-dispersion slope	≤0.091 ps/(nm2.km)
Mode field diameter	@ 1310 nm 8.8~9.6μm
Core/Clad concentricity error	≤0.6μm
Cladding diameter	125±1.0μm
Cladding non-circularity	≤1.0%
Primary Coating diameter	245±7μm
Macro-bend induced attenuation 16 mm radius, 1 turn 25mm radius, 100 turns 30mm radius , 100 turns	Δ≤0.05dB @1550nm Δ≤0.05dB @1550nm Δ≤0.05 dB @1625nm

3.Cable Dimensions and Constructions

Items		Descriptions
Fiber	Fiber type	G.652D
	Fiber count	1~24
	Color	Blue/Orange/Green/Brown/Grey/White/Red/Black/Yellow/Violet/Pink/Aqua
Loose tube	Material	PBT
	Diameter	1-12 cores:1.8 ±0.1mm 24 cores: 2.4 ±0.1mm
	Water-blocking material	Gel-filled
Strength member	Material	FRP
Strength member	Diameter	1-12 cores:1.0 ±0.1mm 24 cores: 1.5 ±0.1mm
Outer jacket	Material	MDPE
	Color	Black
	Thickness	1-12 cores: 3.5 ±0.1mm 24 cores: 4.2 ±0.1mm
	Diameter	1-12 cores: 6.5 ±0.2 mm 24 cores: 　 8.5 ±0.2 mm

4.Mechanical and Environmental Characteristics

Items	Descriptions
Tensile Strength (IEC 60794-1-2 E1)	short-term	1000N
Tensile Strength (IEC 60794-1-2 E1)	long-term	600N
Crush (IEC 60794-1-2 E3)	short-term	1000N/100mm
Crush (IEC 60794-1-2 E3)	long-term	300N/100mm
Temperature Range (IEC 60794-1-2 F1)	Storage/Operation	-40℃-+70℃
Temperature Range (IEC 60794-1-2 F1)	Installation	-10℃-+50℃
Bending Radius	Static	10D
Bending Radius	Dynamic	20D
RoHS (2011/65/EU)	Compliant
