different types of ethernet flat fiber optic cable
different types of ethernet flat fiber optic cable
different types of ethernet flat fiber optic cable
different types of ethernet flat fiber optic cable
different types of ethernet flat fiber optic cable
different types of ethernet flat fiber optic cable
different types of ethernet flat fiber optic cable
different types of ethernet flat fiber optic cable
different types of ethernet flat fiber optic cable

different types of ethernet flat fiber optic cable

Payment Type:L/C,T/T,Paypal,Cash
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DDP,DDU,Express Delivery
Min. Order:1 Kilometer
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.GYFXTBY

BrandOEM

Place Of OriginChina

Number Of Cores≥ 10

ApplicationCommunication

Fiber TypeG652D/G657A1/G657A2,OM3,OM4

No. Of Fiber1-24

Out SheathHDPE/LSZH Sheath/flame Retardant Sheath/anti-roden

Loose Tube MaterialPBT

Keywordfiber optic cable

Laying MethodAerial

Drop Cable Structurecentral tube

CertificationCE/ROHS/ISO9001 /ANATEL

Strength MemberFRP

Packaging & Delivery
Selling Units: Kilometer
Package Type: wooden spool
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Description for optical wires:

different types of good quality ethernet flat fiber optic cable

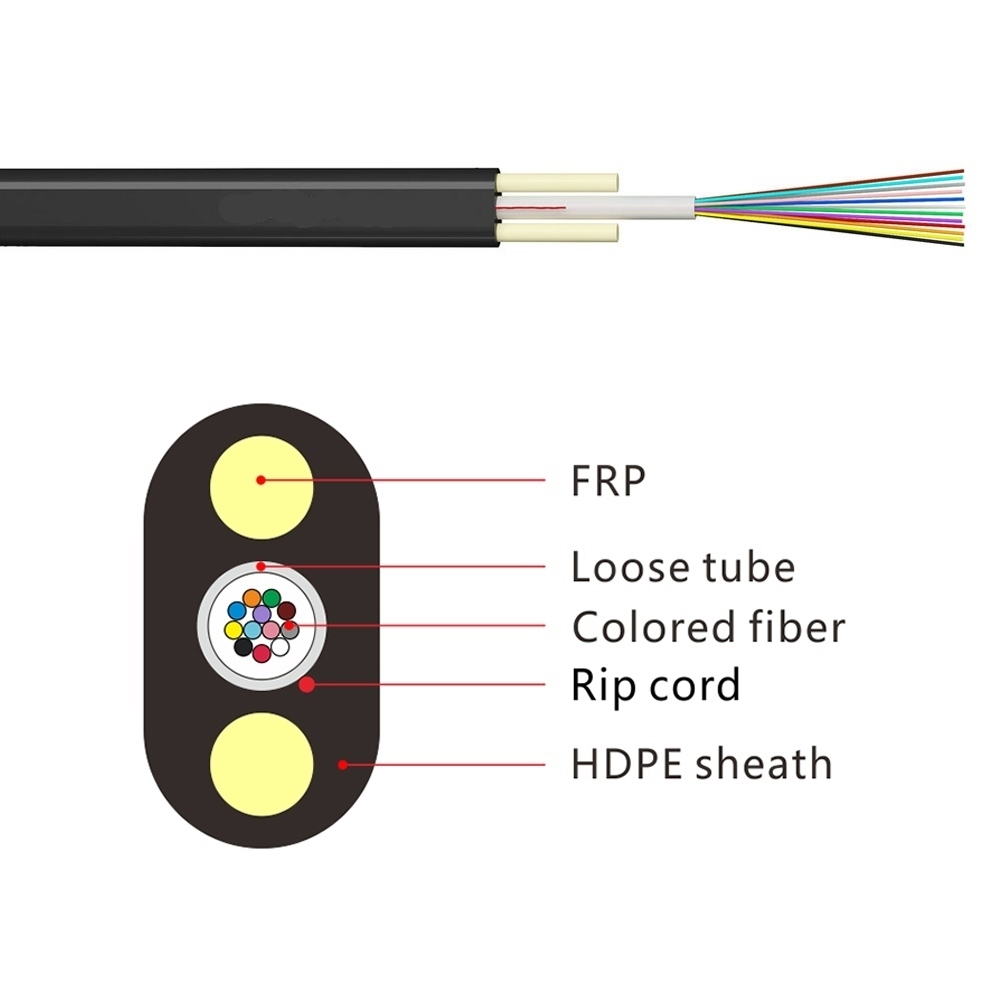

GYFXTBY fiber cable is an arc runway fiber cable, which is made of multiple ( 1 – 12 cores ) 250μm colored fibers embedded in the internally filled waterproof compound loose tube made of high-modulus plastic, a non-metallic tensile element ( FRP ) is placed on both sides of the loose tube, and a rip cord is placed on its outer layer, and then the high-density polyethylene is extruded to form an HDPE sheath.

Product Name:good quality ethernet cable,flat fiber optic cable,different types of fiber cable,fiber optics,fiber optic cable,fiber optic material,optical wire cable

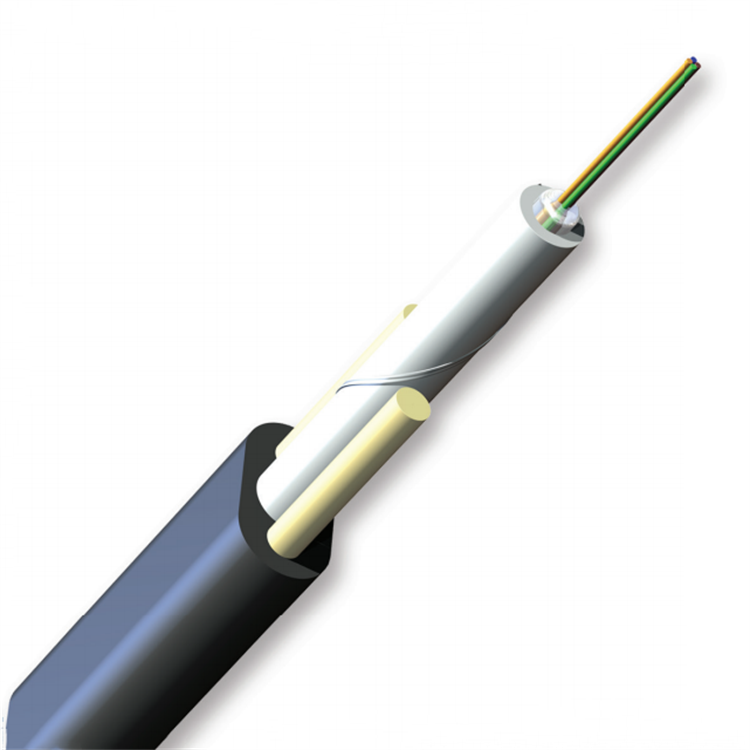

outdoor rated fiber optic cable picture:

good quality ethernet cable

optical fiber cable features:

1.Accurately controlling the residual length of optical fiber ensures good tensile properties and temperature characteristics of optical cable ;PBT loose tube material has good resistance to hydrolysis, filled with special ointment to protect the optical fiber ;
2.Fiber optic cable is non-metallic structure, light weight, easy laying, anti-electromagnetic, lightning protection effect is better ;
3.Larger number of core than ordinary butterfly-shaped optical cable products, suitable for access to more densely populated villages ;
4.Compared with butterfly-shaped optical cable, runway structure products have stable optical transmission performance with no risk of water accumulation, icing and egg cocoon ;
5.Easy to peel, reduce the time of pulling out the outer sheath, improve the construction efficiency ;
6.It has the advantages of corrosion resistance, UV protection and environmental protection

Outdoor Fiber Optic Cable standrad:

•YD / T769-2010, GB / T 9771-2008, IEC794 and other standards ;
fiber optic materialfiber optic cabledifferent types of fiber cable

fiber single mode cable characteristics:






G.652

G.655

50/125μm

62.5/125μm



Attenuation
        (+20℃)

@850nm

 -

  -

≤3.5dB/km

≤3.5dB/km

@1300nm

  -

  -

≤1.5dB/km

≤1.5dB/km

@1310nm

≤0.45dB/km

≤0.45dB/km

  -

  -

@1550nm

≤0.30dB/km

≤0.30dB/km

 -

  -



@850

 -

 -

≥500MHZ·km

≥200MHZ·km

Bandwidth
      (Class A)

@1300

  -

  -

≥1000MHZ·km

≥600MHZ·km

Numerical aperture

 -

  -

  -

0.200±0.015NA

0.275±0.015NA



Cable Cutoff Wavelength

 -

≤1260nm

≤1480nm

  -

 -



Technical Parameters:

ber Count

Cable Diameter
      mm

Cable Weight
      Kg/km

Tensile Strength
      Long/Short Term
      N

Crush Resistance
      Long/Short Term
      N/100m

Bending Radius
      Static/Dynamic
      mm

1-12 core

4.5*8.5

46

400/1200

300/1000

30D/15D

Storage/Operating Temperature : -20℃ to + 60℃

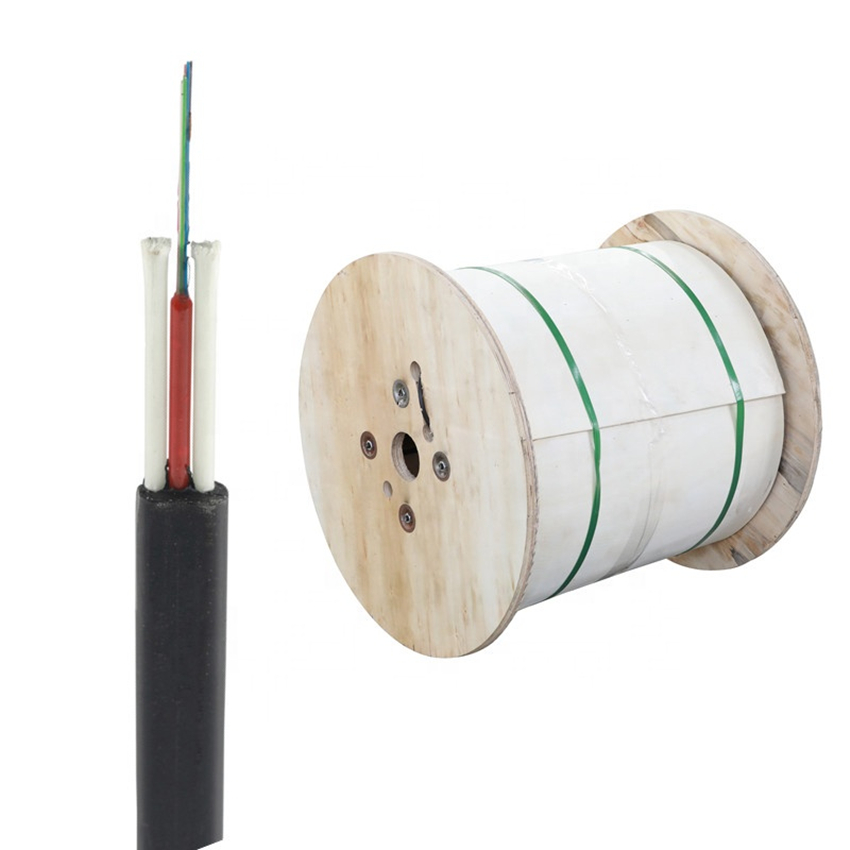

Product Export Containers:

Daily export containers
fiber cable packing
Supply Ability & Additional Information

Packagingwooden spool

Productivity15000 Kilometer per Month

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability15000 Kilometer per Month

CertificateCE/ROHS/ISO9001 /ANATEL

HS Code8544700000

PortShenzhen,Guangzhou

Payment TypeL/C,T/T,Paypal,Cash

IncotermFOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DDP,DDU,Express Delivery
