Model No.: GYFXTY
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Application: Communication
Fiber Type: G652D/G657A1/G657A2,OM3,OM4
No. Of Fiber: 1-24
Out Sheath: HDPE/LSZH Sheath/flame Retardant Sheath/anti-roden
Loose Tube Material: PBT
Keyword: fiber optic cable
Laying Method: Aerial
Drop Cable Structure: central tube
Certification: CE/ROHS/ISO9001 /ANATEL
Strength Member: FRP
| Selling Units: | Kilometer |
| Package Type: | wooden spool |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
GYFXTY outdoor 8 core fibre optic cable price per metre

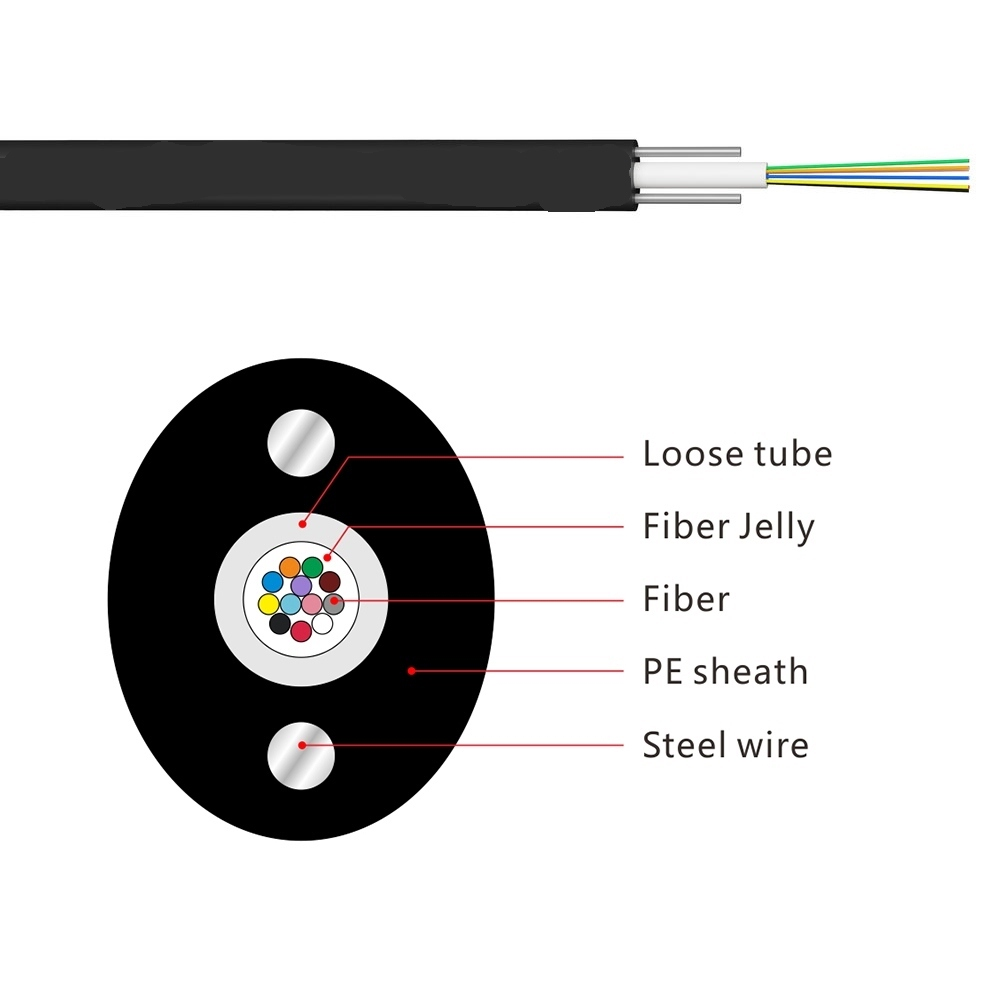

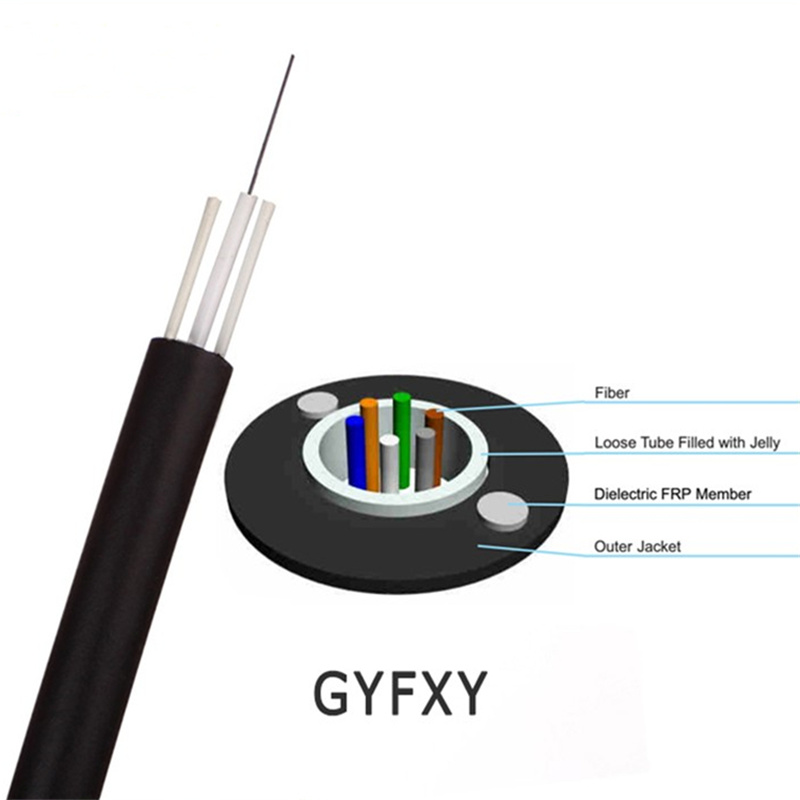

The fibers,200/250μm, either of single-mode or multimode type, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A layer of aramid yarn or high strength glass is applied around the cable core as additional strength member. Then, the cable is completed with a black or color HDPE sheath.24 fiber color code.Please inquiry us for fiber optic cost per meter.
Product Name:8 core fiber optic cable price per meter,fibre optic cable price per metre,fiber manufacturers,Outdoor Fiber Optic Cable types,gyfxty,300 meter fiber optic cable price,4 pair fiber optic cable
·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Crush resistance and flexibility
·Inexpensive and can reduce operating costs
·Two parallel steel wires ensure tensile strength
·Small diameter, light weight and friendly installation
·Long delivery length
·Complies with National Standard
|
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
| Attenuation | @850nm |
|
| ≤3.5B/km | ≤3.5B/km |
| @1300nm |
|
| ≤1.5B/km | ≤1.5B/km | |
| @1310nm | ≤0.45/km | ≤0.45/km |
|
| |
| @1550nm | ≤0.30/km | ≤0.30/km |
|
| |
| Bandwidth | @850 |
|
| ≥500MHZ·km | ≥20MHZ·km |
| @1300 |
|
| ≥1000MHZ·km | ≥600MHZ·km | |
| Numerical Aperture |
|
|
| 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc |
| ≤1260nm | ≤1480nm |
|
|
| | | |
| | |
|
| GYFXTY | 1～2 | 4×5 | 34 | 250/500 | 300/1000 | 15D/30D |
| GYFXTY | 3～6 | 4.2×5.2 | 38 | 250/500 | 300/1000 | 15D/30D |
| GYFXTY | 7～12 | 4.5×5.5 | 43 | 250/500 | 300/1000 | 15D/30D |
Storage/Operating Temperature : -20℃ to + 60℃

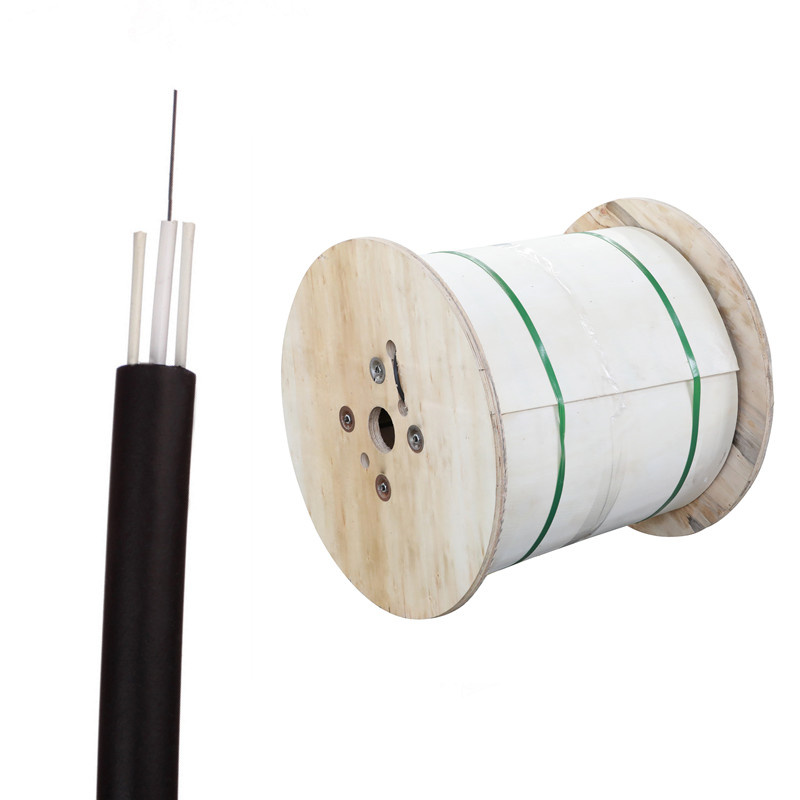

Packaging: wooden spool
Productivity: 15000 Kilometer per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 15000 Kilometer per Month
Certificate: CE/ROHS/ISO9001 /ANATEL
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DDP,DDU,Express Delivery
