Model No.: GYFXTY
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Application: Communication
Fiber Type: G652D/G657A1/G657A2,OM3,OM4
No. Of Fiber: 1-24
Out Sheath: HDPE/LSZH Sheath/flame Retardant Sheath/anti-roden
Loose Tube Material: PBT
Keyword: fiber optic cable
Laying Method: Aerial
Drop Cable Structure: central tube
Certification: CE/ROHS/ISO9001 /ANATEL
Strength Member: FRP
| Selling Units: | Kilometer |
| Package Type: | wooden spool |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it

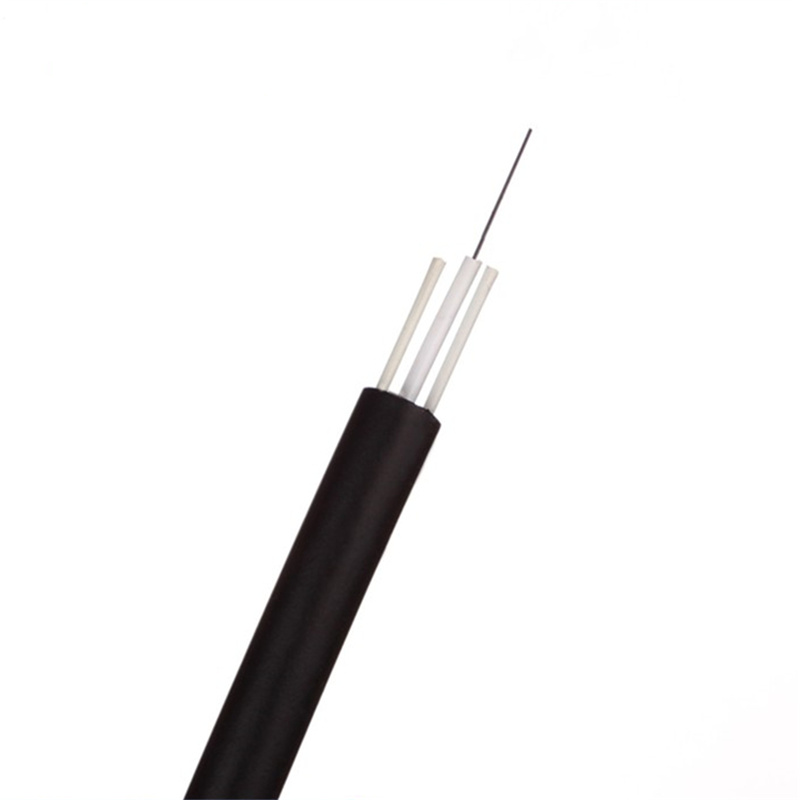

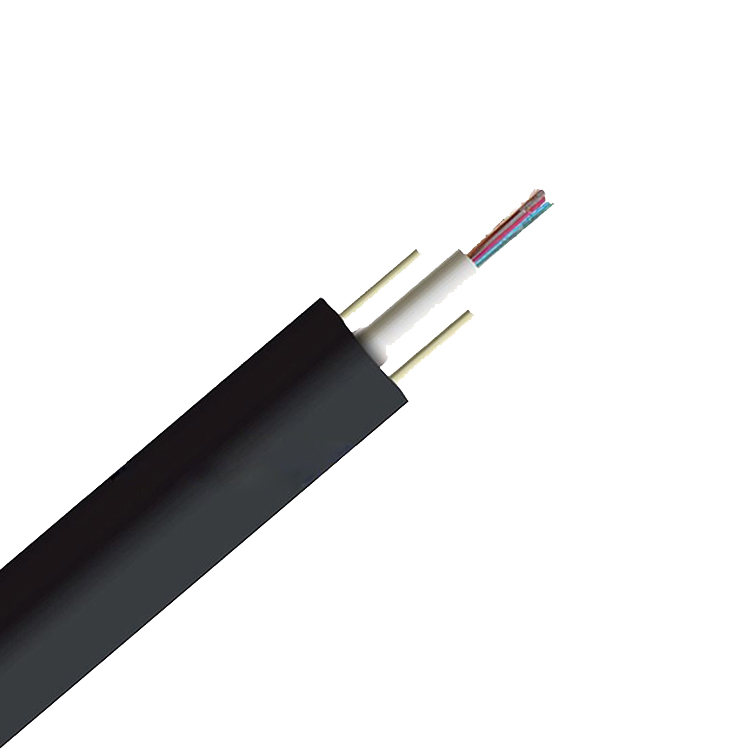

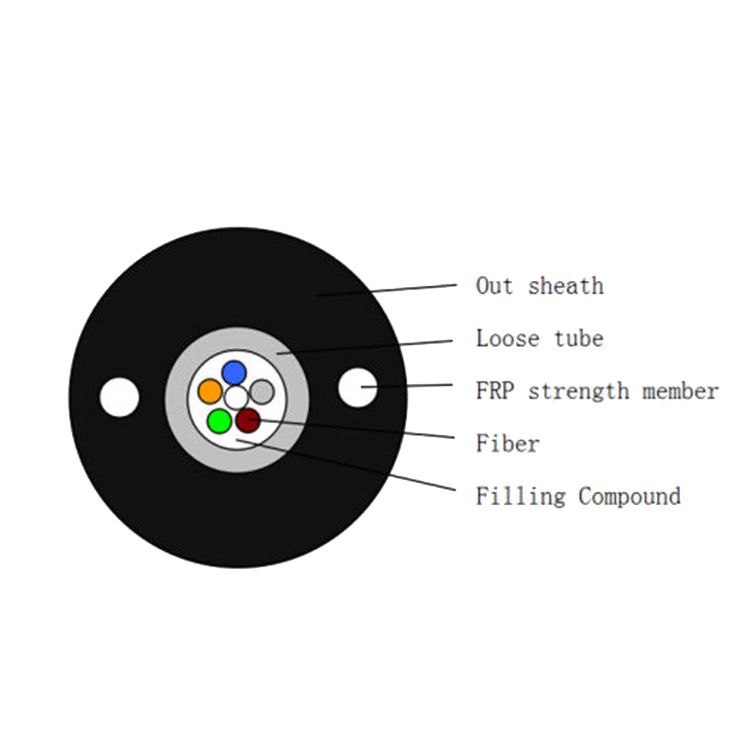

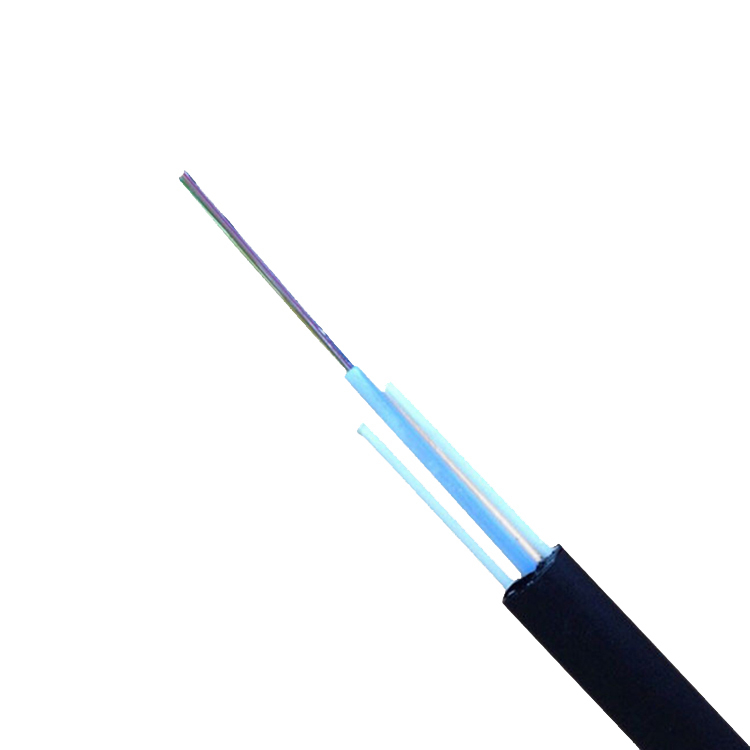

The fibers,200/250μm, either of single-mode or multimode type, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A layer of aramid yarn or high strength glass is applied around the cable core as additional strength member. Then, the cable is completed with a black or color HDPE sheath.Please inquiry us for purchase fiber optic cable.
Product Name:fiber optic 6 core，type of fiber optic cables，fibre optic internet cable，fiber drop cable price，8 core fiber optic cable price per meter，300 meter fiber optic cable price，4 pair fiber optic cable
|
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
| Attenuation | @850nm |
|
| ≤3.0dB/km | ≤3.0dB/km |
| @1300nm |
|
| ≤1.0dB/km | ≤1.0dB/km | |
| @1310nm | ≤0.36dB/km |
|
|
| |
| @1550nm | ≤0.22dB/km | ≤0.23dB/km |
|
| |
| Bandwidth (Class A) | @850 |
|
| ≥500MHZ·km | ≥500MHZ·km |
| @1300 |
|
| ≥1000MHZ·km | ≥600MHZ·km | |
| Numerical Aperture |
|
|
| 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc |
| ≤1260nm | ≤1480nm |
|
|
|
Cable Type | |
| | | | |
| GYFXTY | 2-24 | 6.0 | 20 | 1000/2000 | 200/400 | 30D/15D |
| GYFXTY | 2-24 | 6.5 | 25 | 1200/2500 | 250/500 | 30D/15D |
| GYFXTY | 2-24 | 7.0 | 28 | 1500/3000 | 250/500 | 30D/15D |
| GYFXTY | 2-24 | 7.5 | 30 | 1800/3500 | 250/500 | 30D/15D |
·Non-metallic constructure helps to avoid Radio frequency interference and Electromagnetic interference, which is better for distribution in a minefield
·Specially designed compact structure is good at preventing loose tubes from shrinking
·Aramid yarn ensures good performance of tensile strength
·Good fire prevention performance
·The high strength glass fiber can protect the cable from mouse bites
·High dense fiber packed, small diameter and light weight,soft and strong tensile ability;Adopting PVC or LSZH sheath, can be indoor/outdoor distribution flexibly
·The usage of micro cable, it applies for fiber to the home project.
Packaging: wooden spool
Productivity: 15000 Kilometer per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 15000 Kilometer per Month
Certificate: CE/ROHS/ISO9001 /ANATEL
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DDP,DDU,Express Delivery
