GYFXTBY Aerial Flat Drop Cable Outdoor Fiber Cable
GYFXTBY Aerial Flat Drop Cable Outdoor Fiber Cable
GYFXTBY Aerial Flat Drop Cable Outdoor Fiber Cable
GYFXTBY Aerial Flat Drop Cable Outdoor Fiber Cable
GYFXTBY Aerial Flat Drop Cable Outdoor Fiber Cable
GYFXTBY Aerial Flat Drop Cable Outdoor Fiber Cable
GYFXTBY Aerial Flat Drop Cable Outdoor Fiber Cable
GYFXTBY Aerial Flat Drop Cable Outdoor Fiber Cable
GYFXTBY Aerial Flat Drop Cable Outdoor Fiber Cable

GYFXTBY Aerial Flat Drop Cable Outdoor Fiber Cable

Payment Type:L/C,T/T,Paypal,Cash
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DDP,DDU,Express Delivery
Min. Order:1 Kilometer
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.GYFXTBY

BrandOEM

Place Of OriginChina

Number Of Cores≥ 10

ApplicationCommunication

Fiber TypeG652D/G657A1/G657A2,OM3,OM4

No. Of Fiber1-24

Out SheathHDPE/LSZH Sheath/flame Retardant Sheath/anti-roden

Loose Tube MaterialPBT

Keywordfiber optic cable

Laying MethodAerial

Drop Cable Structurecentral tube

CertificationCE/ROHS/ISO9001 /ANATEL

Strength MemberFRP

Packaging & Delivery
Selling Units: Kilometer
Package Type: wooden spool
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description
GYFXTBY Aerial Flat Drop Cable Outdoor Fiber Cable

The fibers,250um, are positioned in a central tube made of a high modules plastic. The tubes are filled with a water-resistant filling compound. Two paralled FRP and outer sheath as a non-metallic strength member.

Mini ADSS cable is Non-Armored Uni-Tube optical cable with fibers placed in loose buffer tube.The cable core is protected with jelly to prevent water intrusion and migration, and coverwith a black polyethylene out jacket. Two embedded FRP or metallic wire provide desire tension.

Product Name:fiber optics,optical wire cable,drop cable fiber optic,flat fiber optic cable,Flat Aerial Drop Fiber Cable

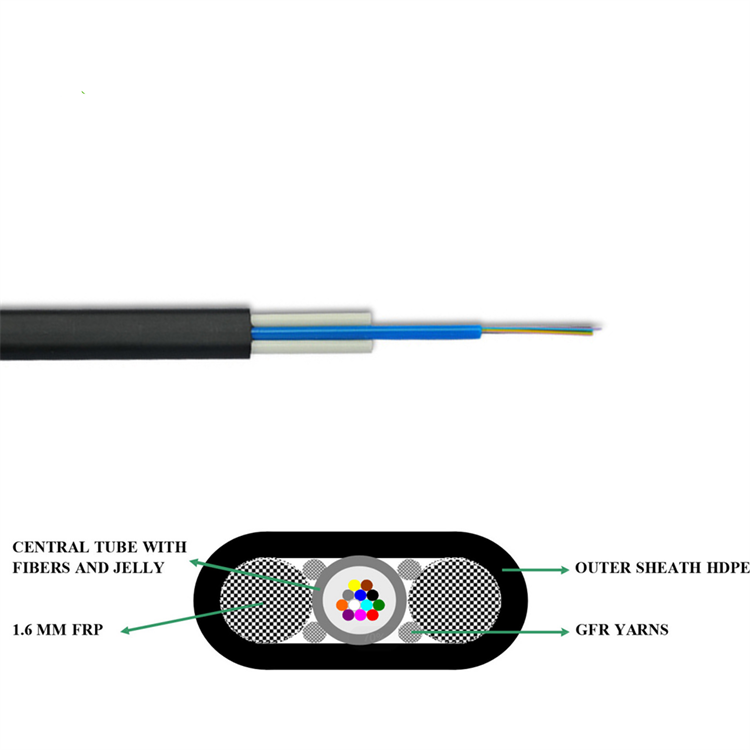

fiber optic cable cross section:
fiber optics

optical wires Technical Parameter:

Fiber counts Cable Outer diameter Weight Minimum allowable Tensile Strength
(N)
minimum allowable Crush Load
(N/100mm)
Minimum Bending Radius
(MM)
Storage
temperature
Core (MM) (KG) short term long term short term long term short term long term (°C)
2-24 7.7*3.8 36.00 1500 600 1000 300 20D 10D -20+70

Note:
1. Only a part of Flat fiber optic cables are listed in the table. More can be produce as required .
2. Cables can be supplied with a range of single mode or multi mode fibers.
3. Specially designed Cable structure is available on request.

fiber optic material
flat fiber optic cable

outdoor rated fiber optic cable application:
· Suitable for aerial drop installation
· Long distance and local area network Fiber to the home(FTTH)

optical fiber cable Features:
* Non-metal design can prevent the cable from radio interference and magnetic wave interference
* Central tube filling compound ensure good moisture resistance performance.

Packing:1-5KM per roll. Packed by steel drum . Other packing available according to client`s Request.

Note:The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.



Flat Fiber Cable
Outdoor Fiber Optic Cable Sheath Mark:

The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required; b. Standard Code(Product Type, Fiber Type,Fiber Count); c. Year of manufacture: 7 years; d. Length marking in meters.

Port:

Shanghai/Guangzhou/Shenzhen

Lead Time:
Quantity(KM) 1-300 ≥300
Est.Time(Days) 15 To be begotiated!



Supply Ability & Additional Information

Packagingwooden spool

Productivity15000 Kilometer per Month

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability15000 Kilometer per Month

CertificateCE/ROHS/ISO9001 /ANATEL

HS Code8544700000

PortShenzhen,Guangzhou

Payment TypeL/C,T/T,Paypal,Cash

IncotermFOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DDP,DDU,Express Delivery
