Home> Products> Outdoor Fiber Optic Cable> Aerial Fiber Optic Cable> Aramid Yarns Tight Access Building Fiber Optic Cable
Aramid Yarns Tight Access Building Fiber Optic Cable
Aramid Yarns Tight Access Building Fiber Optic Cable
Aramid Yarns Tight Access Building Fiber Optic Cable
Aramid Yarns Tight Access Building Fiber Optic Cable
Aramid Yarns Tight Access Building Fiber Optic Cable
Aramid Yarns Tight Access Building Fiber Optic Cable
Aramid Yarns Tight Access Building Fiber Optic Cable
Aramid Yarns Tight Access Building Fiber Optic Cable
Aramid Yarns Tight Access Building Fiber Optic Cable

Aramid Yarns Tight Access Building Fiber Optic Cable

Payment Type:L/C,T/T,Paypal,others
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,DDU,Express Delivery
Min. Order:1 Kilometer
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.GJYFJU/GJYFJH

BrandOEM

Place Of OriginChina

Number Of Cores≥ 10

Cable StructureMicro ADSS Tight buffer

ApplicationIndoor/Outdoor access building

Fiber OptionsG657A1, G657A2

Fiber Count1-24 cores

Installation Tensile1000N

Bend Radius (Under Installation)20 x External Diameter of cable

Strength MemberKevlar Aramid Yarn

Material Of JacketTPU or LSZH

CertificationISO9001/CE/RoHS

Warranty (Year)2

Packaging & Delivery
Selling Units: Kilometer
Package Type: wooden reel ,iron-wooden reel
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description
12 Core Aramid Yarns Tight Access Building fiber optic cable

Product Introduction:
Tight buffered Fibers, Dielectric Strength Member and Flame retardant TPU (Thermoplastic Polyurethane).This specification covers the general requirements for fiber optic telecommunication cables.The optical cable laid in the buildings is used in horizontal area and main trunk and is used to connect pigtail or connector, and it’s used for gigabit or ten-gigabit optical fiber communication.
Product Name:optical fiber 2 core,4f fiber optic cable price,6 fiber cable,ofc cable 6 core price,2 core single mode fiber optic cable,home fiber optic network

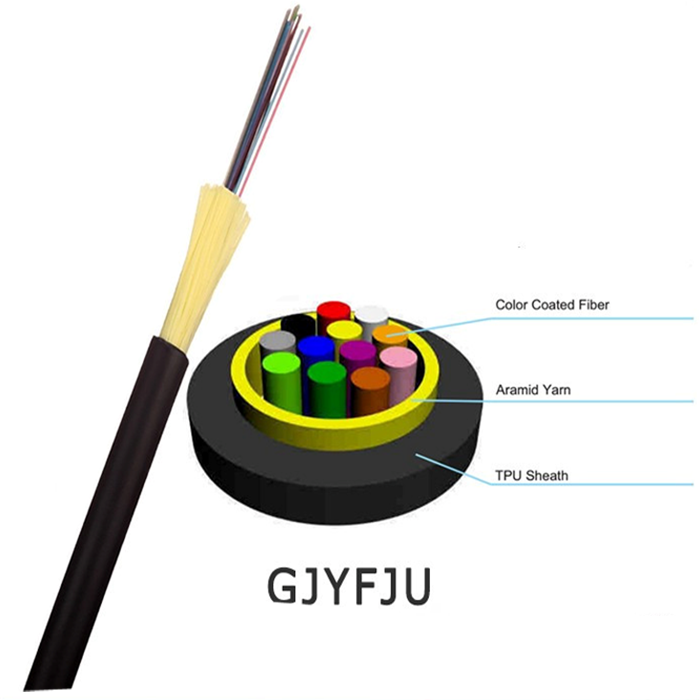

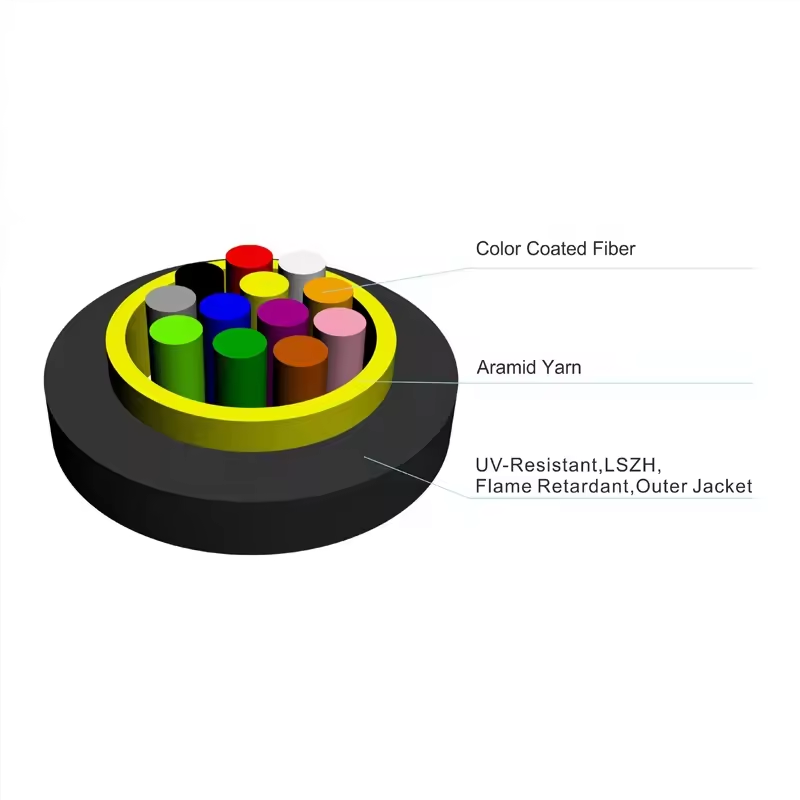

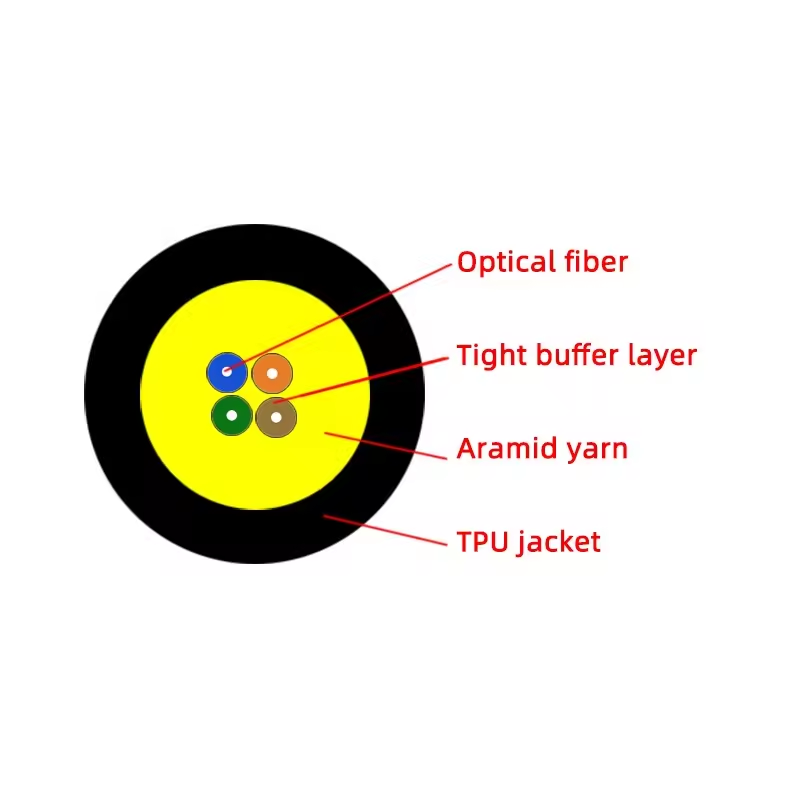

Cable Cross Section:
home fiber optic network
tight buffered outdoor fiber
Parameter:
item
value
Cable Structure
Tight buffer/loose tube cable
Application
Indoor/Outdoor access building
Fiber options
G657A1, G657A2
Fiber count
1-12cores
Installation tensile
1000N
Bend radius (Under installation)
20 x External Diameter of cable
Strength member
Kevlar Aramid Yarn
Material of jacket
TPU

Standard:
ISO/IEC11801 : 2008,YD/T1258-2005
Application:
Indoor cabling
Suitable for aerial dropping

Product Features:
1. Peripheral strengthening of high modulus aramid yarn
2. Use single core cable as basic unit
3. Small out diameter, terminal direct physical protection is provided
4. Soft, small bending radius and good stress and strain performance
5. Flame retardant or non combustible outside protection can be chosen and LSZH sheath can be provided

fiber optic network solutionsofc cable 6 core price12 f fiber cable price
Supply Ability & Additional Information

Packagingwooden reel ,iron-wooden reel

Productivity1000 Kilometer/Kilometers per

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability1000 Kilometer/Kilometers per Month

CertificateISO9001/CE/RoHS

HS Code8544700000

PortShenzhen,Guangzhou

Payment TypeL/C,T/T,Paypal,others

IncotermFOB,CFR,CIF,EXW,FAS,FCA,DDU,Express Delivery
