GYFXTBY Outdoor fiber optic Aerial Fiber Optical Cable

The cable consists of a central loose tube, filled with a synthetic oil based jelly, non-nutritive to fungus, electrically non-conductive, homogeneous and free from dirt and foreign matter, containing up to 24 optical fibers.Two Fiber Reinforced Plastics (FRP) elements are longitudinally applied parallel with the tube, and an outer black PE sheath, UV resistant.

Product Name:Aerial Optical Cable,fiber fiber optic cable,fiber optic cable,fiber fiber optic cable,fiber optics,Flat Aerial Drop Fiber Cable,flat drop cable,Flat Drop Fiber Cable,flat drop fiber optical cable

Features for fiber optic cable core:

* Compact design for self-supporting use

* 2 FRP supports long span

* Light weight and small diameter, easy for installation

* Loose tube with gel filled give good protection for the fiber

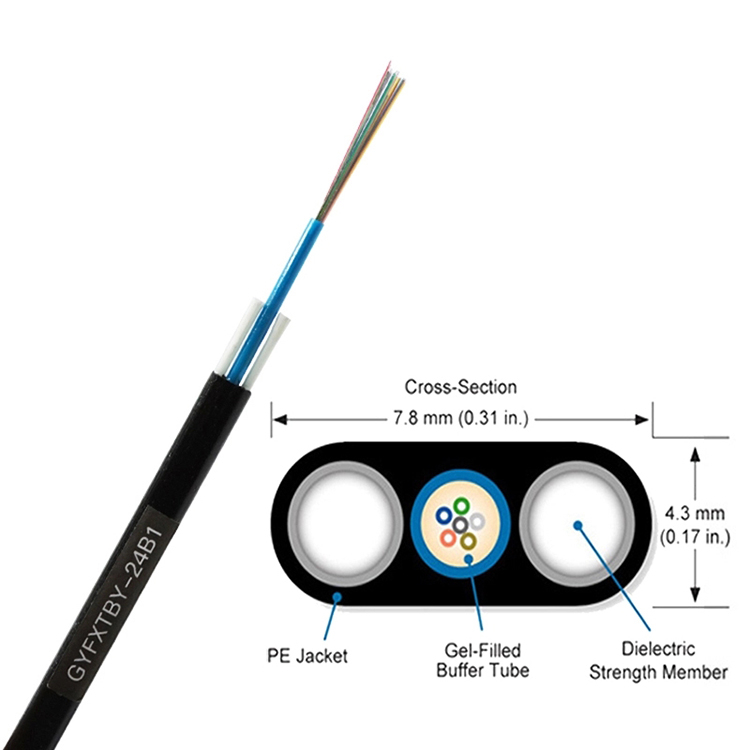

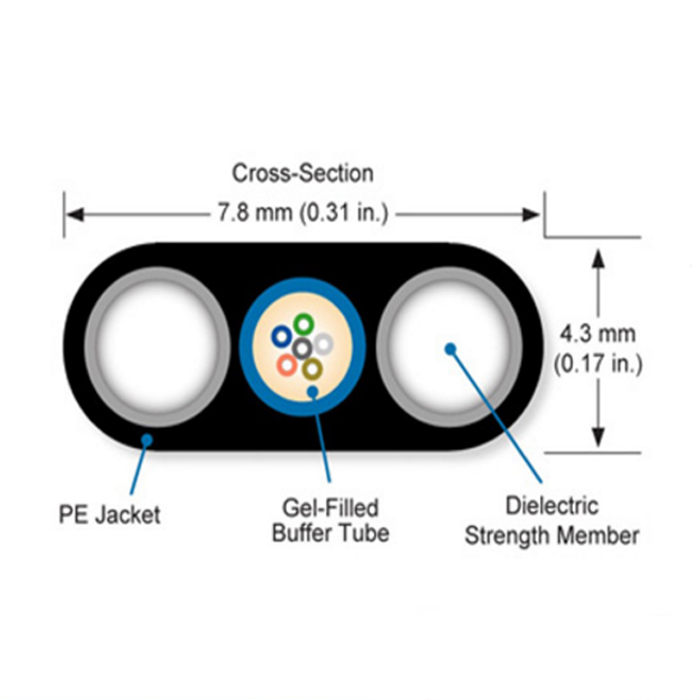

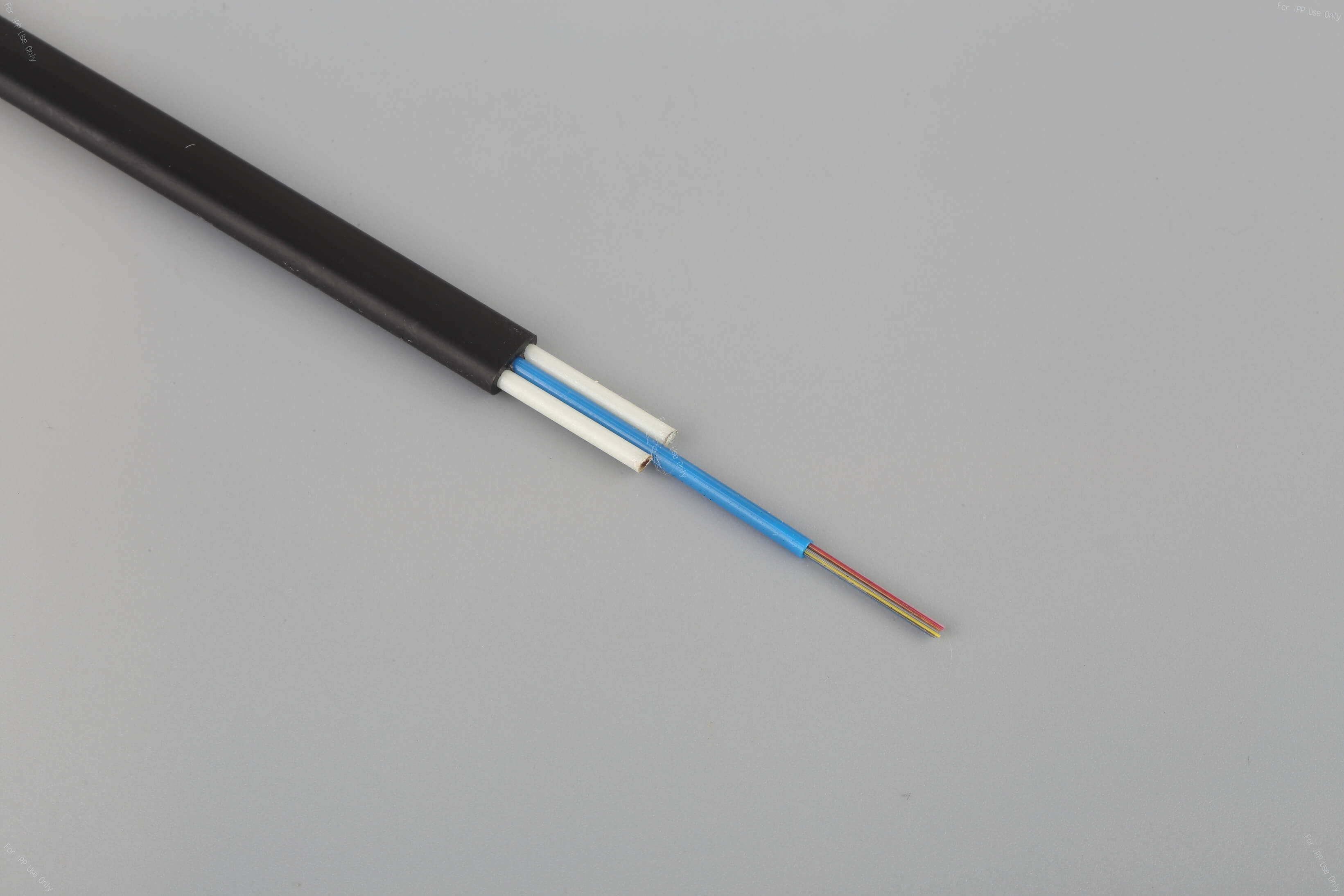

1.Structure Diagram of os2 fiber optic cable

A. Colored fiber 1-24 cores with jelly filled in center loose tube
B. PBT loose tube for protection
C. Water blocking tape applied (Optional)
D. 1.0-2.3mm FRP at the two sides for tension purpose and bring solution for aerial application
E. The cable is finished with black PE jacket

2.The properties of single mode fiber（ITU-TG .652D）

Items	Description
	Before cable	After cable
atten.1310	≤0.35dB/km	≤0.36dB/km
atten.1383	≤0.35dB/km	≤0.36dB/km
atten.1550	≤0.21dB/km	≤0.22dB/km
atten.1625	≤0.23dB/km	≤0.24dB/km
Cable cut-off wavelength	≤1260 nm
Zero-dispersion wavelength	1300 ~ 1324 nm
Zero-dispersion slope	≤0.091 ps/(nm2.km)
Mode field diameter	@ 1310 nm 8.8~9.6μm
Core/Clad concentricity error	≤0.6μm
Cladding diameter	125±1.0μm
Cladding non-circularity	≤1.0%
Primary Coating diameter	245±7μm
Macro-bend induced attenuation 16 mm radius, 1 turn 25mm radius, 100 turns 30mm radius , 100 turns	Δ≤0.05dB @1550nm Δ≤0.05dB @1550nm Δ≤0.05 dB @1625nm

3.Cable Dimensions and Constructions

Items		Descriptions
Fiber	Fiber type	G.652D
	Fiber count	1~24
	Color	Blue/Orange/Green/Brown/Grey/White/Red/Black/Yellow/Violet/Pink/Aqua
Loose tube	Material	PBT
	Diameter	1-12 cores:1.8 ±0.1mm 24 cores: 2.4 ±0.1mm
	Water-blocking material	Gel-filled
Strength member	Material	FRP
Strength member	Diameter	1-12 cores:1.0 ±0.1mm 24 cores: 1.5 ±0.1mm
Outer jacket	Material	MDPE
	Color	Black
	Thickness	1-12 cores: 3.5 ±0.1mm 24 cores: 4.2 ±0.1mm
	Diameter	1-12 cores: 6.5 ±0.2 mm 24 cores: 　 8.5 ±0.2 mm

4.Mechanical and Environmental Characteristics

Items	Descriptions
Tensile Strength (IEC 60794-1-2 E1)	short-term	1000N
Tensile Strength (IEC 60794-1-2 E1)	long-term	600N
Crush (IEC 60794-1-2 E3)	short-term	1000N/100mm
Crush (IEC 60794-1-2 E3)	long-term	300N/100mm
Temperature Range (IEC 60794-1-2 F1)	Storage/Operation	-40℃-+70℃
Temperature Range (IEC 60794-1-2 F1)	Installation	-10℃-+50℃
Bending Radius	Static	10D
Bending Radius	Dynamic	20D
RoHS (2011/65/EU)	Compliant
