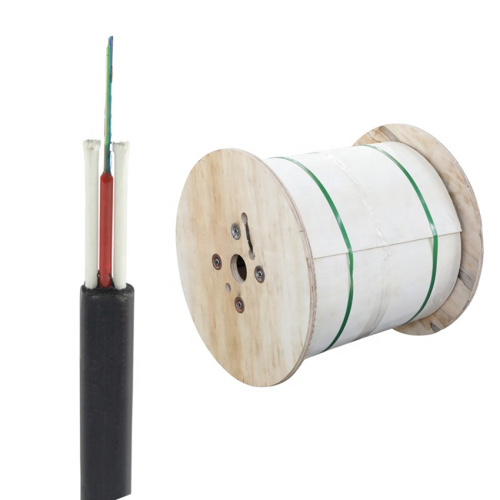

Outdoor Non Armored Aerial Flat optical fiber cable

GYFXTBY fiber cable is an arc runway fiber cable, which is made of multiple ( 1 – 12 cores ) 250μm colored fibers embedded in the internally filled waterproof compound loose tube made of high-modulus plastic, a non-metallic tensile element ( FRP ) is placed on both sides of the loose tube, and a rip cord is placed on its outer layer, and then the high-density polyethylene is extruded to form an HDPE sheath.

Product Name:fiber optic cable,Optical fiber cable,FTTH Drop Cable,Flat Optical Fiber Cable,Aerial Optical Fiber Cable,Aerial Flat Fiber Cable,GYFXTBY

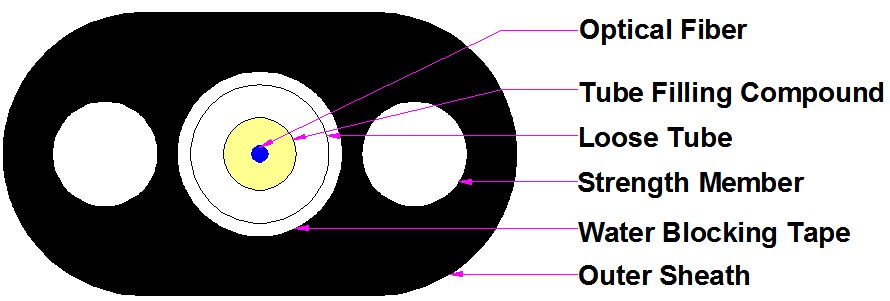

1.Structure Diagram

A. Colored fiber 1-24 cores with jelly filled in center loose tube
B. PBT loose tube for protection
C. Water blocking tape applied (Optional)
D. 1.0-2.3mm FRP at the two sides for tension purpose and bring solution for aerial application
E. The cable is finished with black PE jacket

2.The properties of single mode fiber（ITU-TG .652D）

Items	Description
	Before cable	After cable
atten.1310	≤0.35dB/km	≤0.36dB/km
atten.1383	≤0.35dB/km	≤0.36dB/km
atten.1550	≤0.21dB/km	≤0.22dB/km
atten.1625	≤0.23dB/km	≤0.24dB/km
Cable cut-off wavelength	≤1260 nm
Zero-dispersion wavelength	1300 ~ 1324 nm
Zero-dispersion slope	≤0.091 ps/(nm².km)
Mode field diameter	@ 1310 nm 8.8~9.6μm
Core/Clad concentricity error	≤0.6μm
Cladding diameter	125±1.0μm
Cladding non-circularity	≤1.0%
Primary Coating diameter	245±7μm
Macro-bend induced attenuation 16 mm radius, 1 turn 25mm radius, 100 turns 30mm radius , 100 turns	Δ≤0.05dB @1550nm Δ≤0.05dB @1550nm Δ≤0.05 dB @1625nm

3.Cable Dimensions and Constructions

Items		Descriptions
Fiber	Fiber type	G.652D
	Fiber count	1~24
	Color	Blue/Orange/Green/Brown/Grey/White/Red/Black/Yellow/Violet/Pink/Aqua
Loose tube	Material	PBT
	Diameter	1-12 cores:1.8 ±0.1mm 24 cores: 2.4 ±0.1mm
	Water-blocking material	Gel-filled
Strength member	Material	FRP
Strength member	Diameter	1-12 cores:1.0 ±0.1mm 24 cores: 1.5 ±0.1mm
Outer jacket	Material	MDPE
	Color	Black
	Thickness	1-12 cores: 3.5 ±0.1mm 24 cores: 4.2 ±0.1mm
	Diameter	1-12 cores: 6.5 ±0.2 mm 24 cores: 　 8.5 ±0.2 mm

4.Mechanical and Environmental Characteristics

Items	Descriptions
Tensile Strength (IEC 60794-1-2 E1)	short-term	1000N
Tensile Strength (IEC 60794-1-2 E1)	long-term	600N
Crush (IEC 60794-1-2 E3)	short-term	1000N/100mm
Crush (IEC 60794-1-2 E3)	long-term	300N/100mm
Temperature Range (IEC 60794-1-2 F1)	Storage/Operation	-40℃-+70℃
Temperature Range (IEC 60794-1-2 F1)	Installation	-10℃-+50℃
Bending Radius	Static	10D
Bending Radius	Dynamic	20D
RoHS (2011/65/EU)	Compliant
