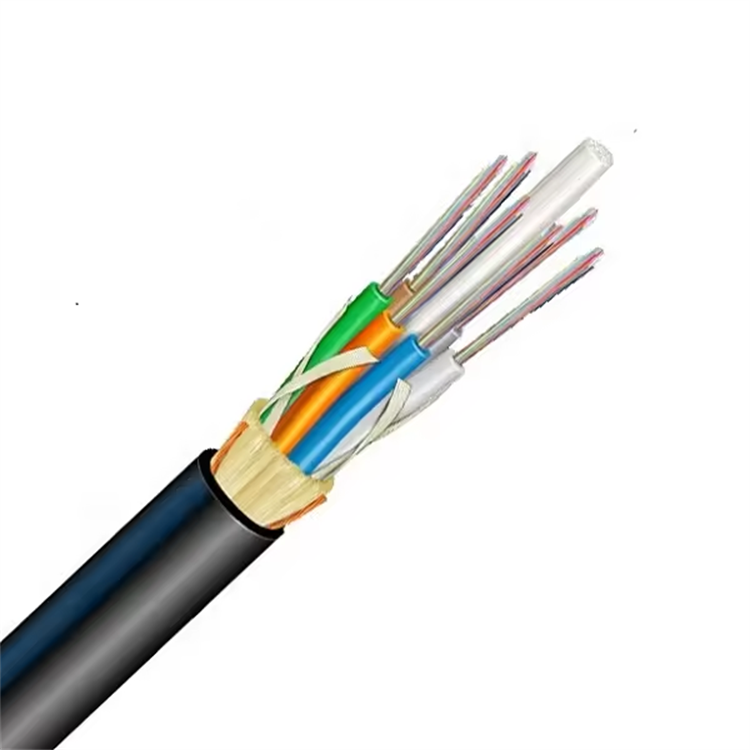

ADSS 100m 12 24 core fiber optic cable

Payment Type:	L/C,T/T,Paypal,Cash
Incoterm:	FOB,CFR,CIF,EXW,FAS,DDP
Min. Order:	1 Kilometer
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: ADSS

Brand: OEM

Place Of Origin: China

Number Of Cores: ≥ 10

Application: Outdoor Aerial

Fiber Type: G652/G655

No. Of Fiber: 2~144 cores

Outer Sheath: HDPE or Anti tracking jacket

Keyword: 24 core fiber optic cable

Strength Member: Kevlar aramia yarn

Span: 100~1000 M

Waterproof: water blocking type

Standard: IEC 6079-1;IEEE 1222-2004

Product Name: Aerial ADSS FIBER CABLE

Packaging & Delivery

Selling Units:	Kilometer
Package Type:	wooden spool
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Description for adss fiber optic cable:

ADSS 100m 12 core fiber optic cable price per meter

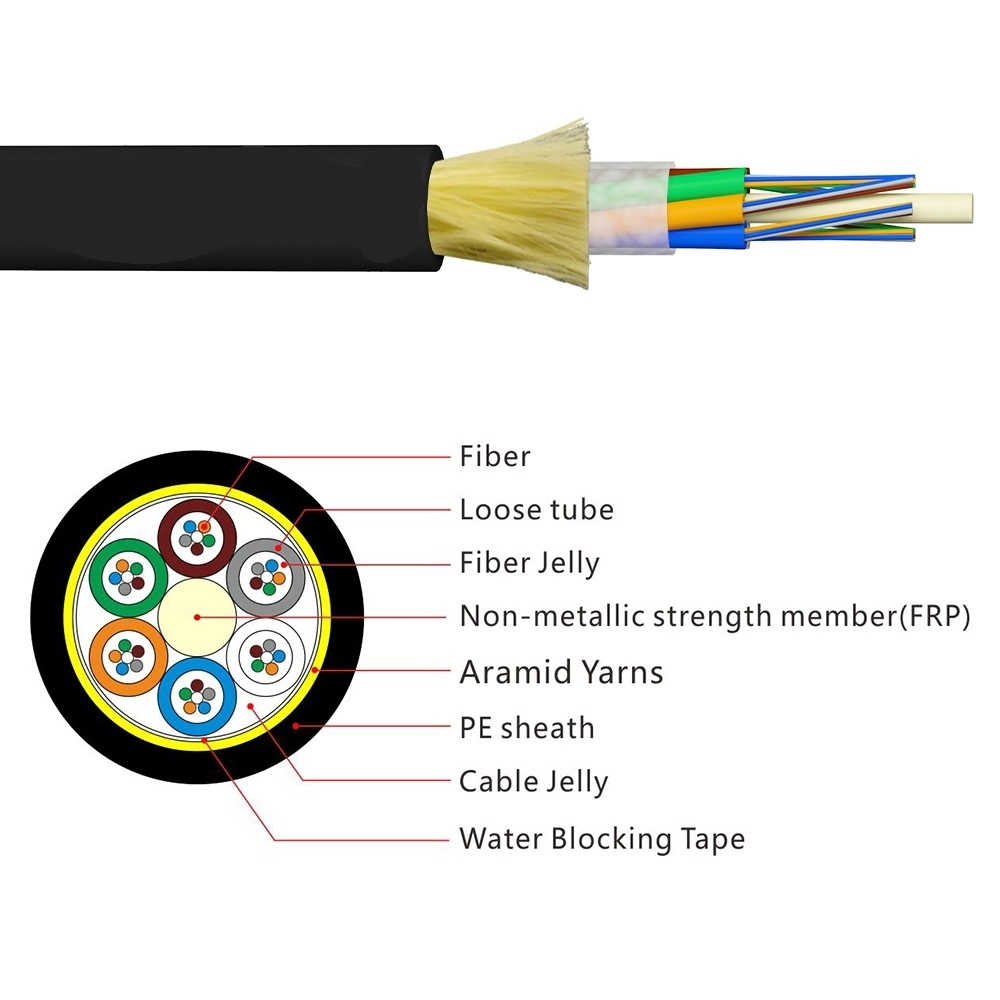

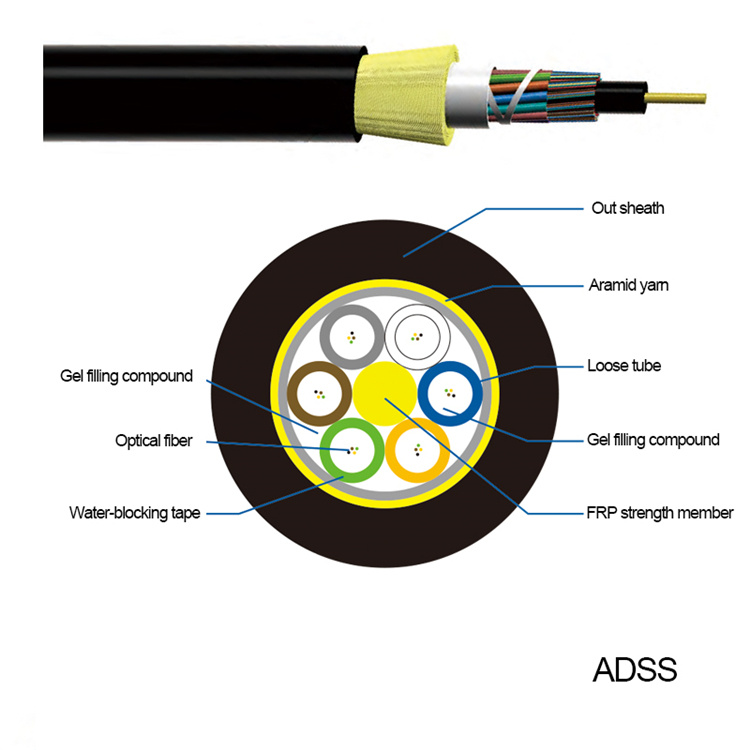

ADSS cable adopts the twisted structure. 250μm fiber is inserted into the loose tube made of high modulus materials. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.The gap of the cable core is filled with a water-blocking yarn and a water-blocking tape longitudinally wrapped by the cable core. After stranded layer of aramid yarn are applied as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Product Name:fiber cable 100m,fiber cable price,fiber optic description,12 core fiber optic cable price per meter,fiber optic line,ADSS cable,adss fiber

Picture of 48 core adss optical cable:

Product Features / PRODUCT

·Can be installed without shutting off the power
·Adopt AT performance, excellent dielectric performance
·Light weight and small diameter reducing the load caused by ice and wind and the load on towers
·Good performance of tensile strength and temperature
·The design life span is 30 years

Application for ADSS cable

·The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines 10kv and 35kv, PE outer sheath is applied.
·FOR power lines 110kV and 220KV, AT outer sheath is applied.
·The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

Standards of Outdoor Fiber Optic Cable

The ADSS cable follows the IEEE P 1222 technical standard, and meets the IEC 60794-1 standard and DLT 788-2016 standard.

Optical characteristics of fiber cable optic

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm	-	-	≤3.5dB/km	≤3.5dB/km
	@1300nm	-	-	≤1.5dB/km	≤1.5dB/km
	@1310nm	≤0.45dB/km	≤0.45dB/km	-	-
	@1550nm	≤0.30dB/km	≤0.30dB/km	-	-
	@850	-	-	≥500MHZ·km	≥200MHZ·km
Bandwidth （Class A）	@1300	-	-	≥1000MHZ·km	≥600MHZ·km
Numerical aperture	-	-	-	0.200±0.015NA	0.275±0.015NA
Cable Cutoff Wavelength	-	≤1260nm	≤1480nm	-	-

Technical Parameters for mini adss

Cable Diameter mm	Cable Weight kg/km		Recommend maximum working tension kN	Maximum allowable working tension kN	breaking tenacity kN	Section area of tensile components mm2	modulus of elasticity kN/ mm2	thermal expansion coefficient ×10-6 /k
Cable Diameter mm	PE sheath	AT sheath	Recommend maximum working tension kN	Maximum allowable working tension kN	breaking tenacity kN	Section area of tensile components mm2	modulus of elasticity kN/ mm2	thermal expansion coefficient ×10-6 /k
9.8	121	130	1.5	4	10	4.6	7.6	1.8
10.2	129	138	2.1	5	14	6.9	8.1	1.4
13.1	132	143	2.8	7	19	9.97	9.13	1.2
15.6	189	207	3.8	9	26	14.2	11.2	1.0

Storage/Operating Temperature : -40℃ to + 70℃

Packing and Marking:

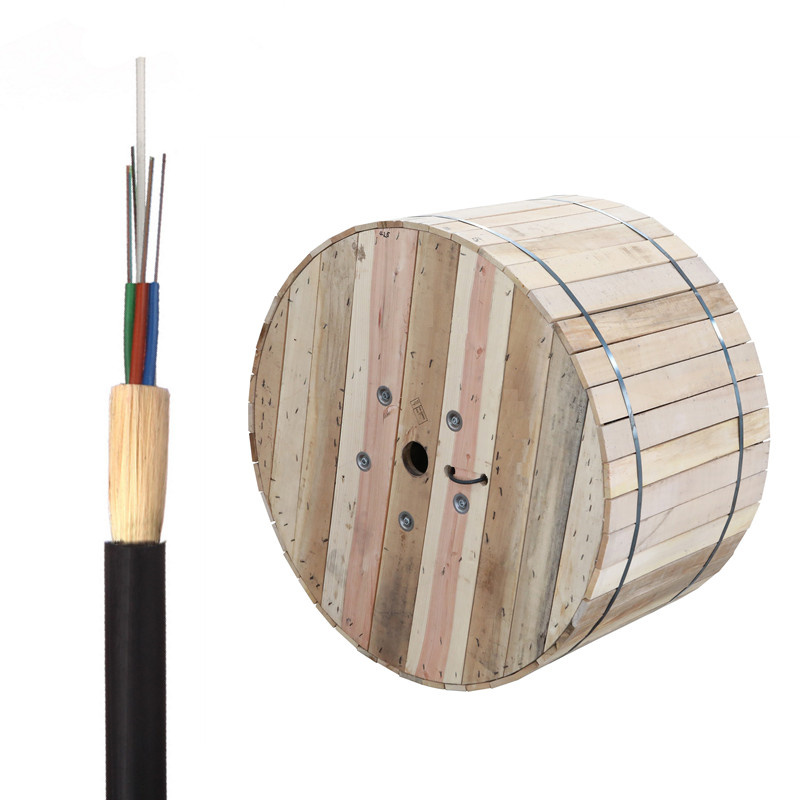

Each single length of cable shall be reeled on Fumigated Wooden Drum
Covered by plastic buffer sheet
Sealed by strong wooden battens
At least 1 m of inside end of cable will be reserved for testing.
Drum length: Standard drum length is 3，000m±2%; as required
5.2 Drum Marking(can according to the requirement in the technical specification) Manufacturer name;
Manufacturing year and month Roll—direction arrow;
Drum length; Gross/net weight;
