Model No.: ADSS
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Application: Outdoor Aerial
Fiber Type: G652/G655
No. Of Fiber: 2~144 cores
Outer Sheath: HDPE or Anti tracking jacket
Keyword: 24 core fiber optic cable
Strength Member: Kevlar aramia yarn
Span: 100~1000 M
Waterproof: water blocking type
Standard: IEC 6079-1;IEEE 1222-2004
Product Name: Aerial ADSS FIBER CABLE
| Selling Units: | Kilometer |
| Package Type: | wooden spool |

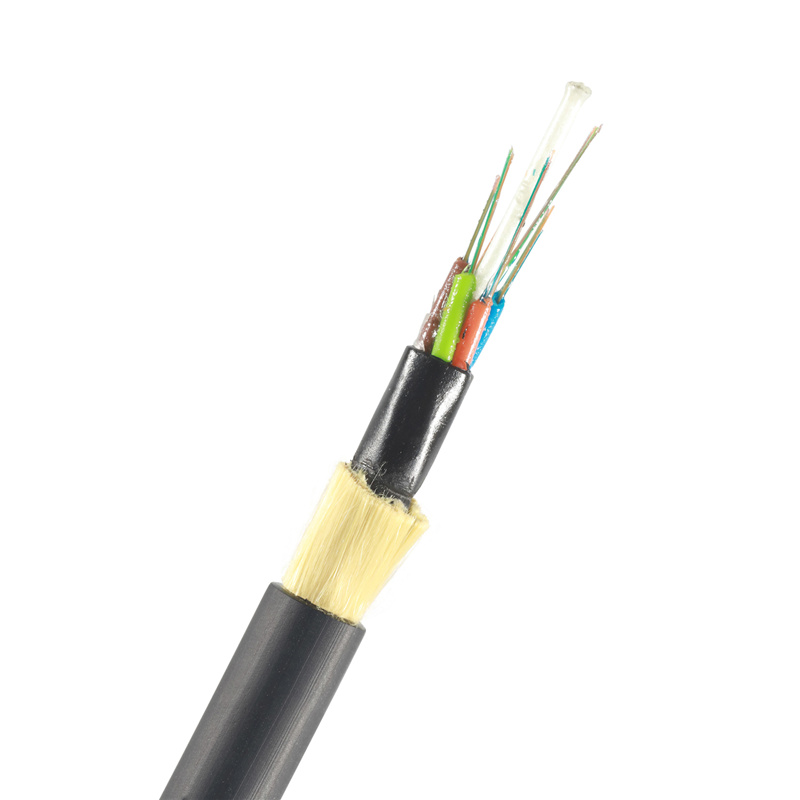

| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
48cores kabel adss overhead fiber internet wire cable

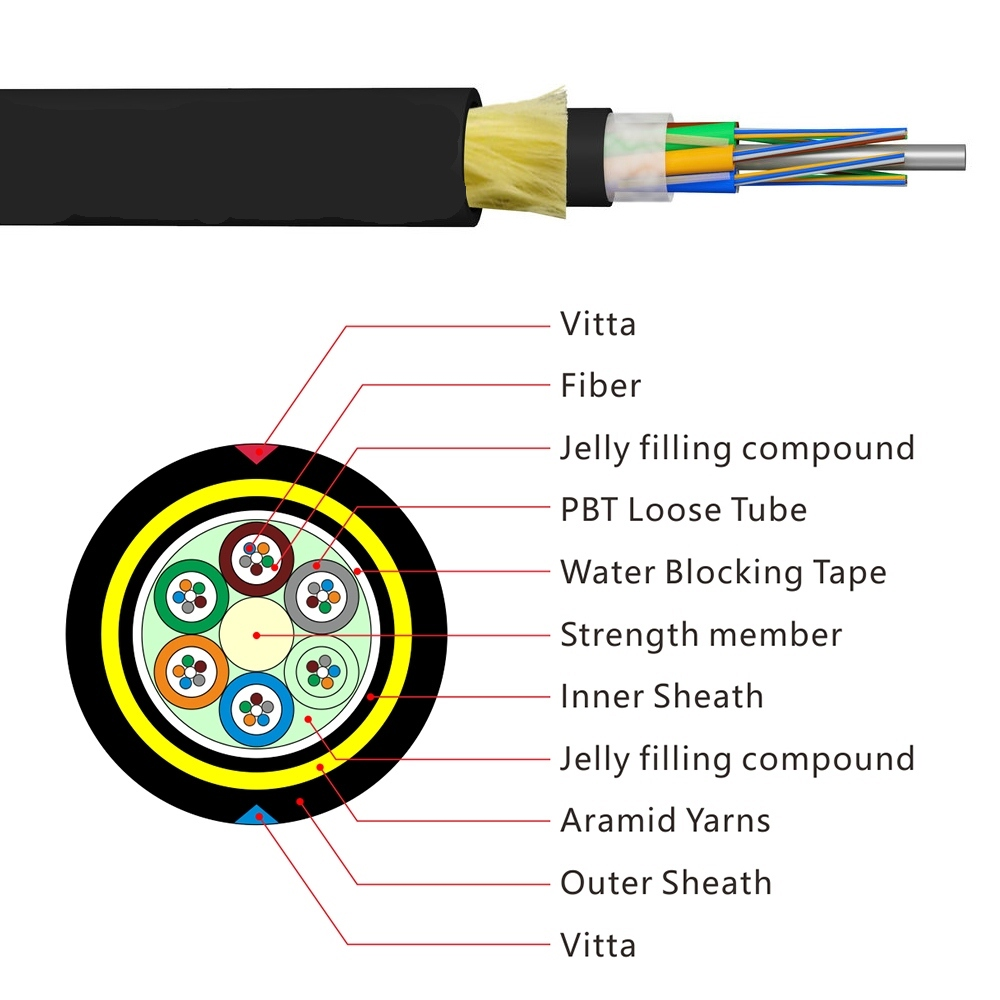

ADSS cable is loose tube stranded. 200um or 250um fiber , is positioned into a loose tube which made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Product Name:fiber internet wire,overhead fiber cable,kabel adss,Aerial Fiber Optic Cable,ofc fiber cable,adss 12 core
·Can be installed without shutting off the power
·Adopt AT performance, excellent dielectric performance
·Light weight and small diameter reducing the load caused by ice and wind and the load on towers
·Large span lengths and the largest span is over 1000m
·Good performance of tensile strength and temperature
·The design life span is 30 years
·The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines 10kv and 35kv, PE outer sheath is applied.
·FOR power lines 110kV and 220KV, AT outer sheath is applied.
·The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
ADSS cable complies with Standard IEEE P 1222 as well as IEC 60794-1.
|
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
| Attenuation | @850nm |
|
| ≤3.0dB/km | ≤3.0dB/km |
| @1300nm |
|
| ≤1.0dB/km | ≤1.0dB/km | |
| @1310nm | ≤0.36dB/km | ≤0.36dB/km |
|
| |
| @1550nm | ≤0.22dB/km | ≤0.23dB/km |
|
| |
| Bandwidth （Class A） | @850 |
|
| ≥500MHZ·km | ≥500MHZ·km |
| @1300 |
|
| ≥1000MHZ·km | ≥600MHZ·km | |
| Numerical Aperture |
|
|
| 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelengthλcc |
| ≤1260nm | ≤1480nm |
|
|
| reference of outer diameter mm | Reference of weight kg/km | Ref.daily max.working | Max allowable working tension KN | Break strength KN | Strength member CSA mm²
| Modulus of elasticty KN/mm² | Heat expansion coefficient×10-6/k | Suitable span (m)
| ||||
| PE | AT | A | B | C | D | |||||||
| 12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
| 13.0 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
| 13.3 | 137 | 148 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 |
| 13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | 370 | 250 | 350 | 250 |
| 13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1.0 | 420 | 280 | 400 | 280 |
| 14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | 480 | 320 | 460 | 320 |
| 14.9 | 171 | 185 | 6.75 | 18 | 45 | 22.0 | 16.4 | 0.6 | 570 | 380 | 550 | 380 |
| 15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18.0 | 0.3 | 670 | 460 | 650 | 460 |
| 15.5 | 190 | 204 | 9.0 | 26 | 60 | 32.2 | 19.1 | 0.1 | 750 | 530 | 750 | 510 |
| 15.6 | 194 | 208 | 10.5 | 28 | 70 | 33.0 | 19.6 | 0.1 | 800 | 560 | 800 | 560 |
| 16.3 | 211 | 226 | 12.75 | 34 | 85 | 40.0 | 20.1 | 0.1 | 880 | 650 | 880 | 650 |
| 16.8 | 226 | 242 | 15.45 | 41 | 103 | 48.0 | 24.0 | -0.4 | 1000 | 750 | 1000 | 760 |
| 17.2 | 236 | 253 | 16.2 | 45 | 108 | 51.0 | 25.1 | -0.5 | 1100 | 800 | 1100 | 830 |
| 17.9 | 249 | 266 | 18 | 50 | 120 | 58.8 | 26.1 | -0.6 | 1180 | 880 | 1180 | 900 |
Storage/Operating Temperature : -40℃ to + 70℃
Packing and Marking:
Packaging: wooden spool
Productivity: 15000 Kilometer per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 15000 Kilometer per Month
Certificate: CE/ROHS/ISO9001 /ANATEL
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,DDP
