Product Attributes

Model No.: ADSS

Brand: OEM

Place Of Origin: China

Number Of Cores: ≥ 10

Application: Outdoor Aerial

Fiber Type: G652/G655

No. Of Fiber: 2~144 cores

Outer Sheath: HDPE or Anti tracking jacket

Keyword: 24 core fiber optic cable

Strength Member: Kevlar aramia yarn

Span: 100~1000 M

Waterproof: water blocking type

Standard: IEC 6079-1;IEEE 1222-2004

Product Name: Aerial ADSS FIBER CABLE

Packaging & Delivery

Selling Units:	Kilometer
Package Type:	wooden spool

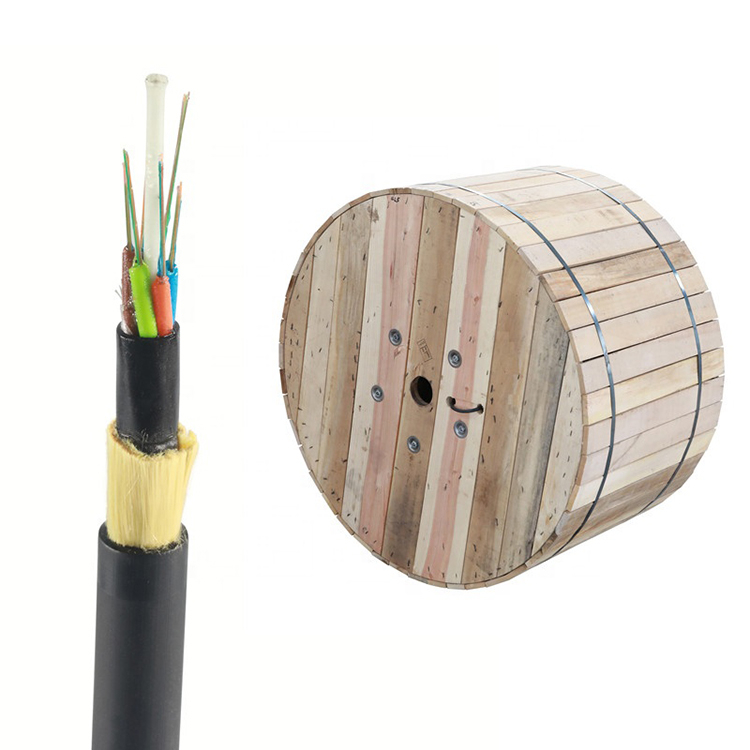

Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

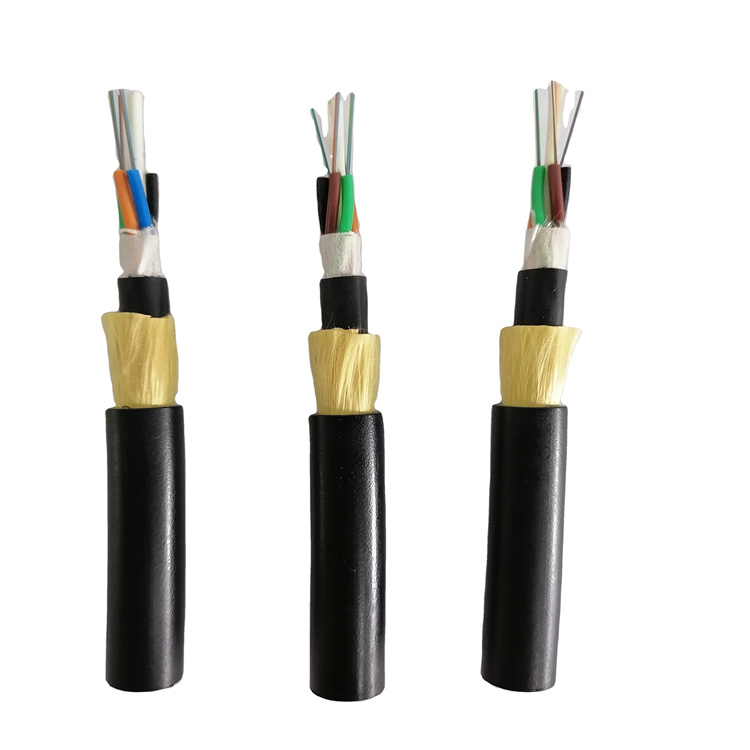

Span 200m Double Sheath adss fiber optic cable 24 48 96 Core

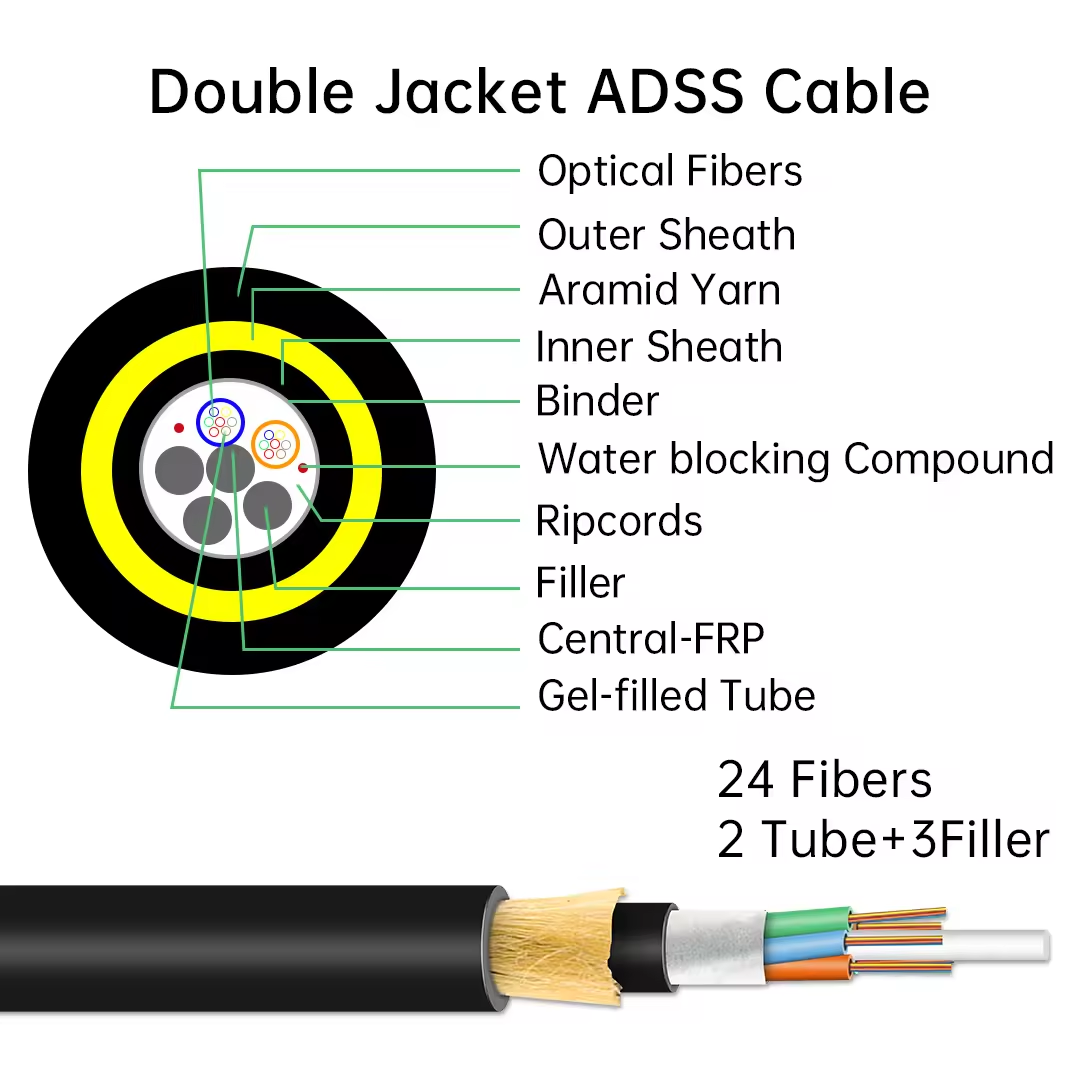

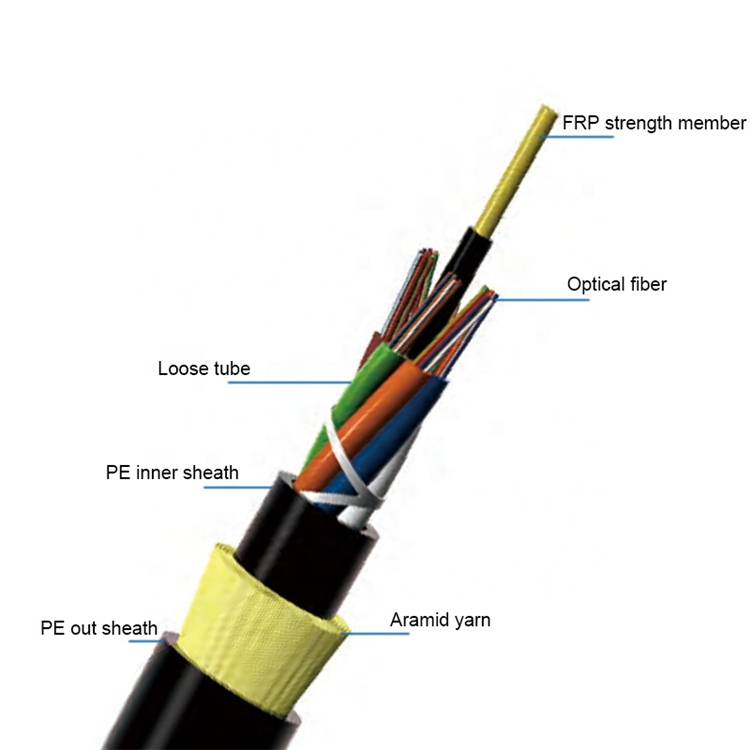

Double Layer Aerial ADSS cable is up to 288 optical fibres in jelly-filled loose tubes, laid up around a central non-metallic strength member. The cable is water blocked, aramid yarn reinforced and polyethylene sheathed. Surface printing for the cable includes sequential length marking at one-metre intervals. Mainly installed at existing 220kV or lower voltage power lines . Two Jacket and stranded loose tube design.

Optic Fiber: G652D or as request
Fiber core: 4 core, 12 core, 24 core, 48 core, 96 core, 144 core or as request.
Compound: Jelly

Loose material: MDPE or as request
Central strengthen member: FRP, non-metal
Inner Sheath material: MDPE or as request

Additional strengthen menber: aramid
Outer Sheath material: MDPE or as request

Product Name:24 core optical fiber cable,fiber optic single mode,fiber optik cable,Fiber Optical Cable,ofs adss fiber optic cable,fiberglass optic cable,fiber optic

Span: 500-1500m

Double Layer Aerial ADSS CableTechnical Parameter:

Parameters		Specification
Optical Characteristics
Fiber Type		G652.D
Mode Field Diameter (um)	1310nm	9.1 ± 0.5
	1550nm	10.3 ± 0.7
Attenuation Coefficient (dB/km)	1310nm	≤ 0.35
	1550nm	≤ 0.21
Attenuation Non-uniformity (dB)		≤ 0.05
Zero Dispersion Wavelength ( λ0) (nm)		1300 ～ 1324
Max Zero Dispersion Slope (S0max) (ps/(nm2·km))		≤ 0.093
Polarization Mode Dispersion Coefficient (PMDQ) (ps/km1/2)		≤ 0.2
Cut-off Wavelength (λcc) (nm)		≤ 1260
Dispersion Coefficient (ps/ (nm·km))	1288~1339nm	≤ 3.5
	1550nm	≤ 18
Effective Group Index of Refraction (Neff)	1310nm	1.466
	1550nm	1.467
Geometric characteristic
Cladding Diameter (um)		125.0 ± 1.0
Cladding Non-circularity (%)		≤ 1.0
Coating Diameter (um)		245.0 ± 10.0
Coating-cladding Concentricity Error (um)		≤ 12.0
Coating Non-circularity (%)		≤ 6.0
Core-cladding Concentricity Error (um)		≤ 0.8
Mechanical characteristic
Curling (m)		≥ 4
Proof Stress (GPa)		≥ 0.69
Coating Strip Force (N)	Average Value	1.0 5.0
	Peak Value	1.3 ~ 8.9
Macro Bending Loss (dB)	Ф60mm, 100 Circles, @ 1550nm	≤ 0.05
	Ф32mm, 1 Circle, @ 1550nm	≤ 0.05

Specifications:

Parameters		Specification
Fiber Count		2	6	12	24	60	144
Loose Tube	Material	PBT
	Fibers per Tube	2	4	4	4	12	12
	Numbers	1	2	3	6	5	12
Filler Rod	Numbers	5	4	3	0	1	0
Central Strength Member	Material	FRP				FRP coated PE
Water Blocking Material		Water blocking yarn
Additional Strength Member		Aramid yarns
Inner Jacket	Material	Black PE (Polythene)
	Thickness	Nominal: 0.8 mm
Outer Jacket	Material	Black PE (Polythene) or AT
	Thickness	Nominal: 1.7 mm
Cable Diameter (mm)		11.4	11.4	11.4	11.4	12.3	17.8
Cable Weight (kg/km)		94 ~ 101	94 ~ 101	94 ~ 101	94 ~ 101	119 ~ 127	241 ~ 252
Rated Tension Stress (RTS) (KN)		5.25	5.25	5.25	5.25	7.25	14.5
Maximum Working Tension (40%RTS) (KN)		2.1	2.1	2.1	2.1	2.9	5.8
Everyday Stress (15-25%RTS) (KN)		0.78 ~ 1.31	0.78 ~ 1.31	0.78 ~ 1.31	0.78 ~ 1.31	1.08 ~ 1.81	2.17 ~ 3.62
Allowable Maximum Span (m)		100
Crush Resistance (N/100mm)	Short time	2200
Suiting Meteorological Condition		Max wind speed: 25m/s Max icing: 0mm
Bending Radius (mm)	Installation	20D
	Operation	10D
Attenuation (After Cable) (dB/km)	SM Fiber @1310nm	≤ 0.36
	SM Fiber @1550nm	≤ 0.22
Temperature Range	Operation (℃)	-40 ~ +70
	Installation (℃)	-10 ~ +50
	Storage & Shipping (℃)	-40 ~ +60

Note:
1. Only a part of Double Layer Aerial ADSS Cable are listed in the table. More can be produce as required .
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Cables can be supplied with dry core or semi dry core
4. Specially designed Cable structure is available on request.

Application: Self-support Aerial installation

Main Features：

Long Span Installation & Use
Tailored designs span distances up to 2,500’ (760 m) without interrupting power
Higher count designs utilize 24 fiber per tube to reduce environmental load
Matching pole attachment hardware (dead-ends, suspension clamps)

Standards: IEEE 1222, IEC 60794-4-20, ANSI/ICEA S-87-640, TELCORDIA GR-20, IEC 60793-1-22, IEC 60794-1-2, IEC 60794

Packing and Marking:

Each single length of cable shall be reeled on Fumigated Wooden Drum
Covered by plastic buffer sheet
Sealed by strong wooden battens
At least 1 m of inside end of cable will be reserved for testing.
Drum length: Standard drum length is 3，000m±2%; as required
5.2 Drum Marking(can according to the requirement in the technical specification) Manufacturer name;
Manufacturing year and month Roll—direction arrow;
Drum length; Gross/net weight;
