All Dielectric 48 Core ADSS Optical Fiber Cable

All Dielectric 48 Core ADSS Optical Fiber Cable

Payment Type:	L/C,T/T,Paypal,Cash
Incoterm:	FOB,CFR,CIF,EXW,FAS,DDP
Min. Order:	1 Kilometer
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: ADSS

Brand: OEM

Place Of Origin: China

Number Of Cores: ≥ 10

Application: Outdoor Aerial

Fiber Type: G652/G655

No. Of Fiber: 2~144 cores

Outer Sheath: HDPE or Anti tracking jacket

Keyword: 24 core fiber optic cable

Strength Member: Kevlar aramia yarn

Span: 100~1000 M

Waterproof: water blocking type

Standard: IEC 6079-1;IEEE 1222-2004

Product Name: Aerial ADSS FIBER CABLE

Packaging & Delivery

Selling Units:	Kilometer
Package Type:	wooden spool
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

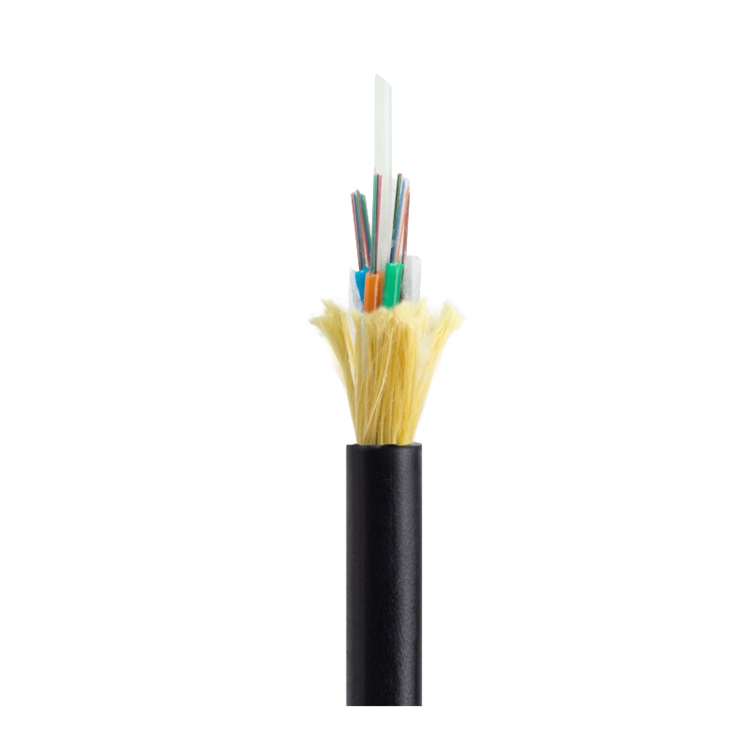

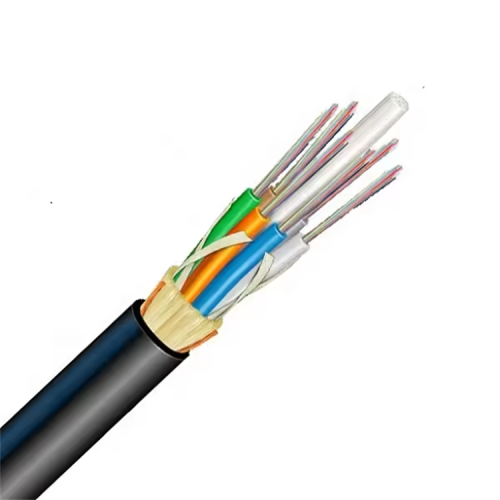

All Dielectric Optical Cable Self-Supporting Optic Cable Fiber 48 Core ADSS

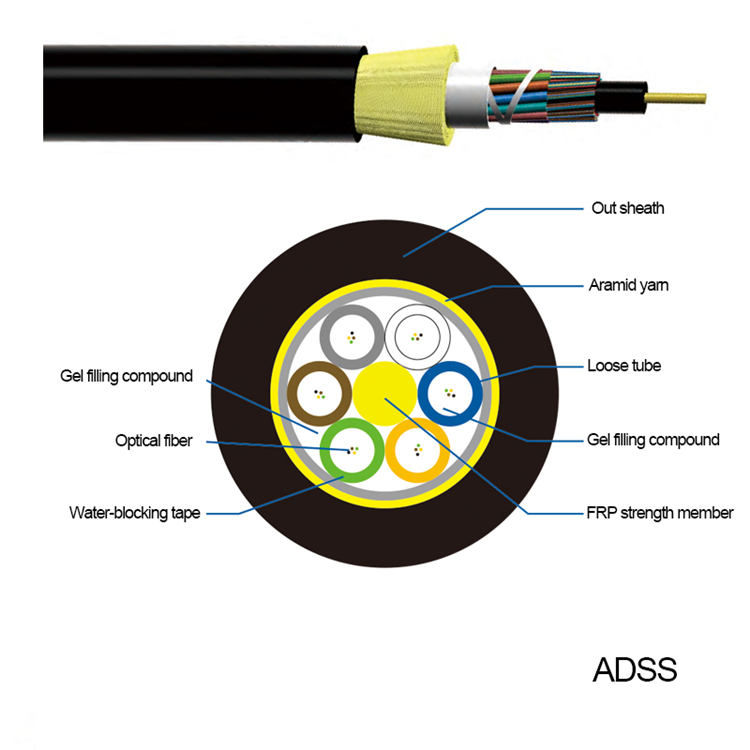

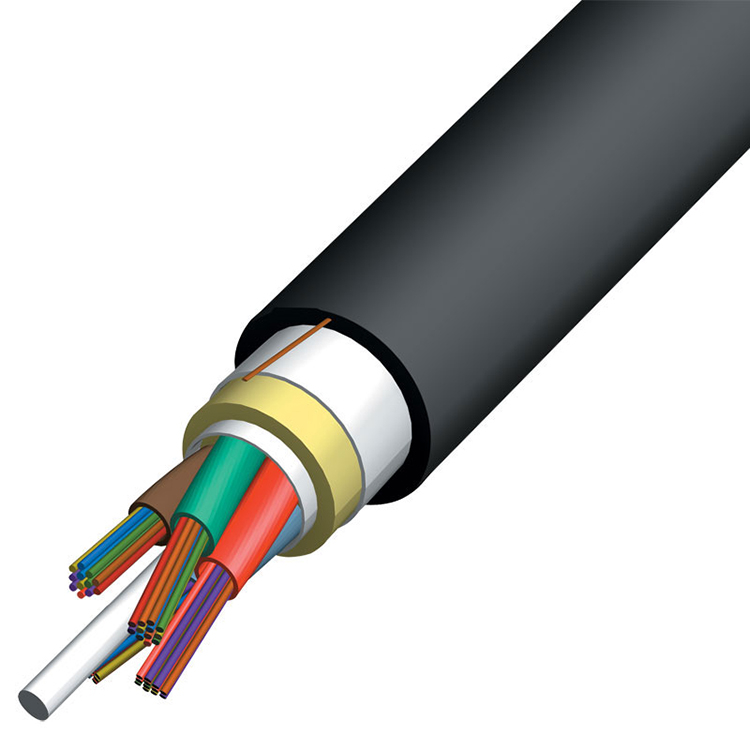

Single Jacket Aerial ADSS cable is idea for installation in distribution as well as transmission envirline installations are required as its name indicates, there is no support or messenger wire required, so installation is achieved in a single pass.Structural features:Single layer ,Loose tube stranding, Non-metal strength member, Half dry water-blocking, Aramid yarn strength member, PE outer jacket. Includes 2 core, 4 core, 6 core, 8 core, 12 core, 16 core, 24 core, 36 core, 48 core, 96 core, 144 core, up to 288 core.

ADSS (All-Dielectric Self-Supporting) cable is ideal for installation in distribution as well as transmission environments, even when live-line installations are required.As its name indicates, there is no support or messenger wire required, so installation is achieved in a single pass, making ADSS an economical and simple means of achieving a fiber optic network. Headway manufactures its own line of attachment hardware as well as supplies formed wire fittings when preferred.

Product Name:cable adss,ofc optical fibre cable,100 meter fiber optic cable price,fiber optic cable description,fiber optic cable,fiber optic cable cable

Fiber Type: G652D; G655C; 657A1; 50/125; 62.5/125; OM3; OM4 As Options

Technical Parameter:

Span (meter)	Weight(kg/km)	Diameter(mm)	Initial Tension (N)Unload/Load
12 Fibers
50	110	9.0~10.5	892	1479
100	110	9.0~10.5	1338	2043
150	110	9.0~10.5	2232	3286
200	110	12.2	3280	4800
24 Fibers
50	115	9.0~10.5	904	1486
150	115	9.0~10.5	2261	3304
200	115	12.2	3322	4826

Note:

1. Only a part of Self-Supporting ADSS Cables are listed in the table. More can be produce as required .
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.

Applications:

● Aerial Installation; Lightning Protection; Junction Communication System,

● Subscriber Network System.

Core Account: 2-288 Cores

Feature Characteristics:
Excellent waterproof performance;
Excellent side-press resistance, tensile performance and temperature properties.
Excellent electromagnetic interference performance
Operating temperature: -40℃～﹢70℃

Standard:

Comply with standard IEEE 1222-2004 as well as IEC 6079-1.

Packing and Marking:

Each single length of cable shall be reeled on Fumigated Wooden Drum
Covered by plastic buffer sheet
Sealed by strong wooden battens
At least 1 m of inside end of cable will be reserved for testing.
Drum length: Standard drum length is 3，000m±2%; as required
5.2 Drum Marking(can according to the requirement in the technical specification) Manufacturer name;
Manufacturing year and month Roll—direction arrow;
Drum length; Gross/net weight;
