24 48 96 core OPGW fiber optic wire cable
24 48 96 core OPGW fiber optic wire cable
24 48 96 core OPGW fiber optic wire cable
24 48 96 core OPGW fiber optic wire cable
24 48 96 core OPGW fiber optic wire cable
24 48 96 core OPGW fiber optic wire cable
24 48 96 core OPGW fiber optic wire cable
24 48 96 core OPGW fiber optic wire cable
24 48 96 core OPGW fiber optic wire cable

24 48 96 core OPGW fiber optic wire cable

Payment Type:L/C,T/T,Paypal,others
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery
Min. Order:1 Kilometer
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.OPGW

BrandOEM

Place Of OriginChina

Number Of Cores≥ 10

MaterialAA/ACS wire

StandardIEC、IEEE、DL/T 832-2003、GB/T 7424.4-2003

Crush Resistance220N/cm(125lb/in)

Maximum Comprehensive Load4 KN for unarmored cables; 6 KN for armored cables

Number /diameter Of AC Wire2.4-3.5 mm

Diameter Of Cable10.5-15 mm

Cable Weight320-527 kg/km

RTS45-80 KN

Modulus Of Elast95.6-162.0 Gpa

Voltage110KV,220KV,500KV

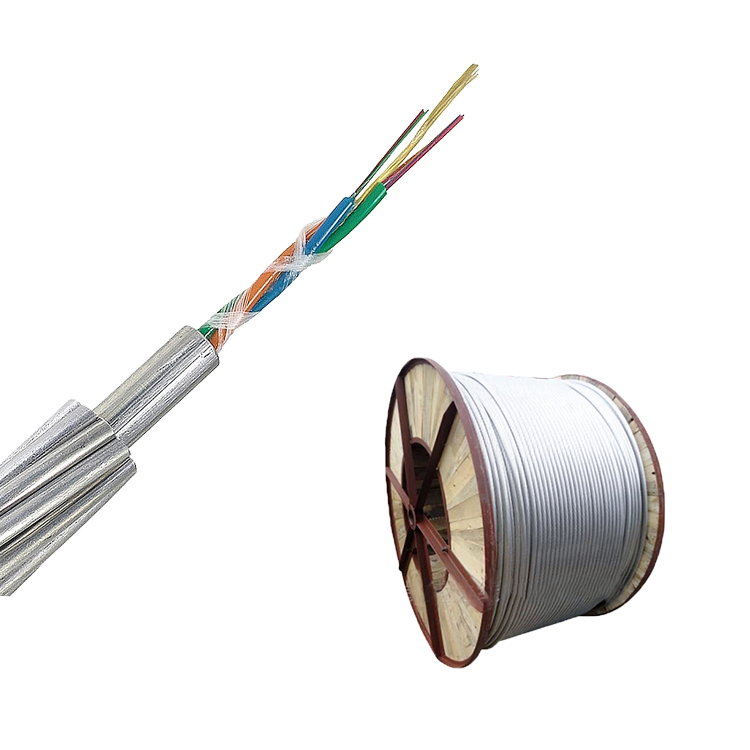

Packaging & Delivery
Selling Units: Kilometer
Package Type: iron-wooden reel
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

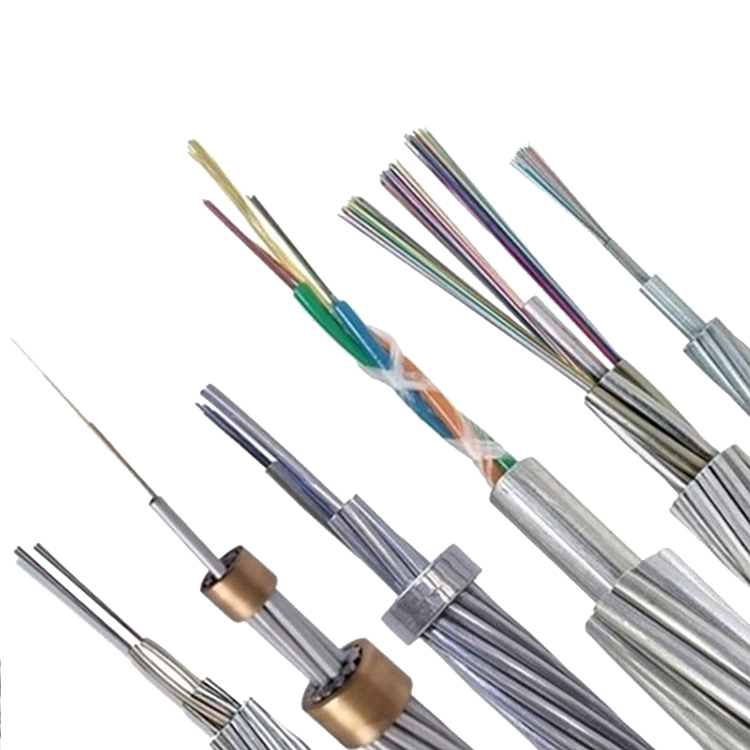

Aluminium steel wire 12 24 48 96 core opgw fiber optic cable



OPGW Mainly used for power communication with accessories,relay protection,automatic transmission,installation together with high-voltage lines.



The Stranded Optical Ground Wire (OPGW) is stranded by double or three layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires, Its design is fully adapted to the most common electric line needs.



Product Name:opgw fiber optic cable,opgw cable price,fiber optic wire cable,optical cable types,optic cable internet,opgw manufacturers,opgw fiber,opgw 48,opgw wire,opgw optical ground wire,opgw fiber optic cable specifications



Central loose tube type:

The fibers is placed loosely in a sealed and water resistant stainless steel tube filled with water blocking gel. This tube provides protection to the fiber during installation and operation under severe environmental conditions. Aluminium layer over the tube is optional. The stainless optical tube is located at the center of the cable protected by single or multiple layers of aluminium clad steel and aluminium annoy wires. The aluminium clad steel wires are shaped trapezoidally around the optical unit to provide compact construction. The metallic wires provide mechanical strength to withstand severe installation and operating conditions, while achieving conductivity to controltemperature rise during short circuit conditions.

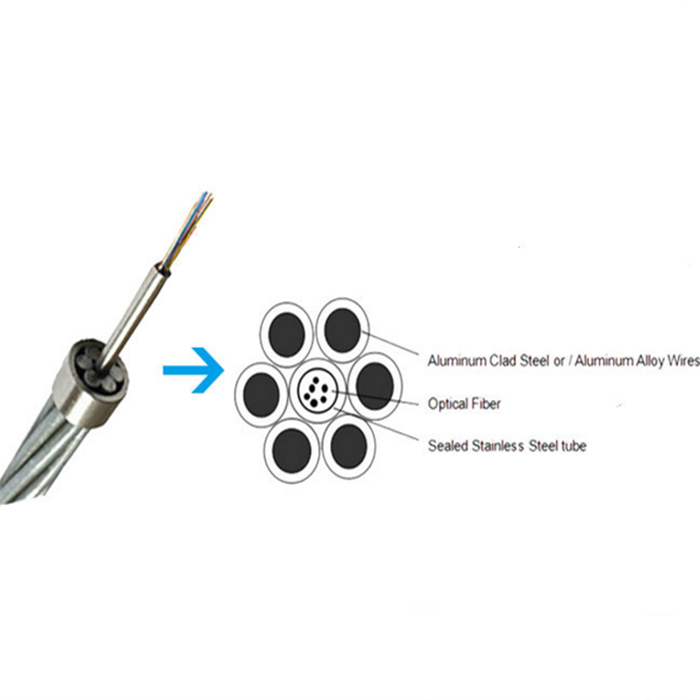

Cable Cross -Section:

optical cable types

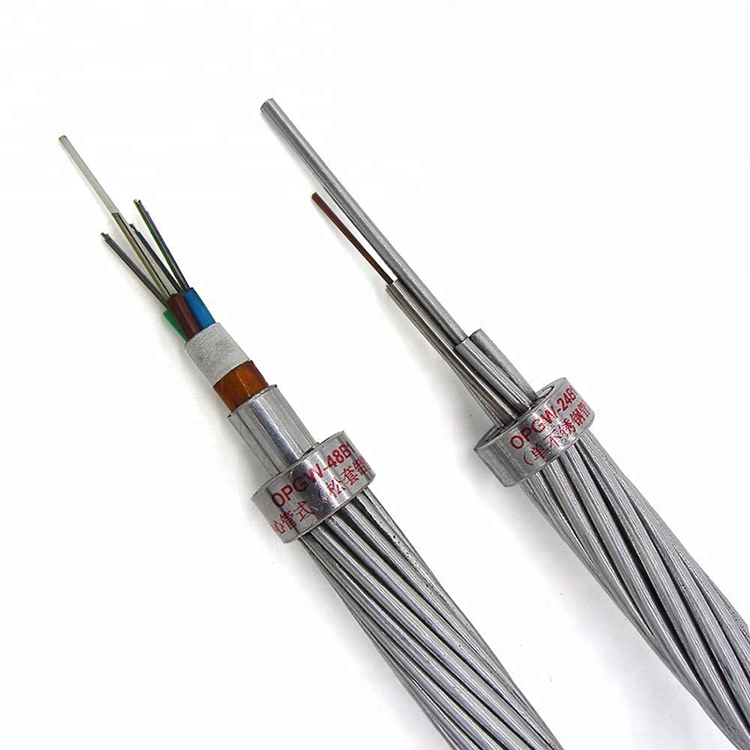

Multiple loose tube type:

The fibers is placed loosely in a sealed and water resistant stainless steel tube filled with water blocking gel. Two or three stainless steel optical tubes are helically stranded in the inner layer of a multiple-layer strandard cable. The multiple loose tube type is designed mostly for very high fiber count requirement over 48 with the maximum fiber count reaching 144. The multiple loose tube type can meet the requirement of huge cross and large current capacity.

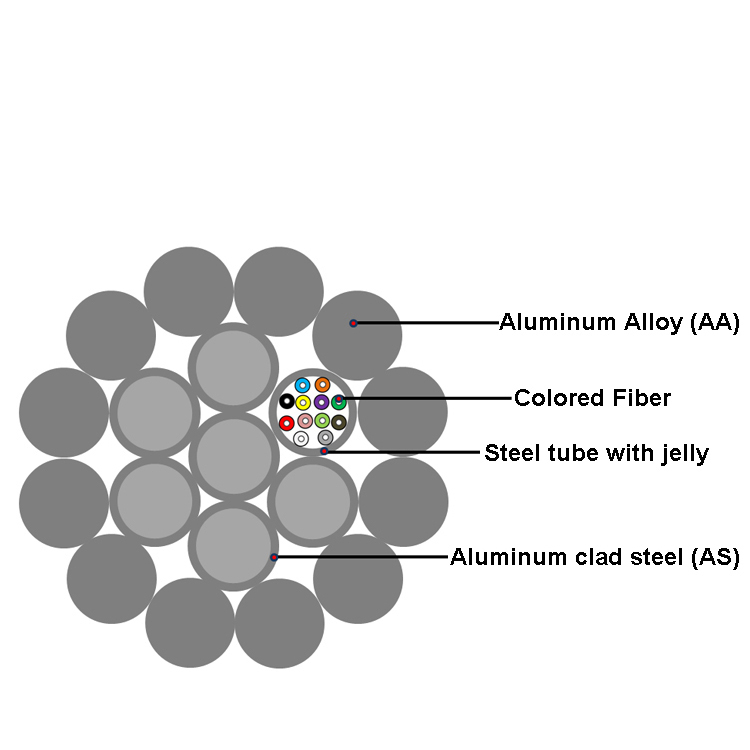

Cable Cross -Section:

opgw manufacturers
opgw optical ground wire

Standard:

ITU-TG.652 Characteristics of a single mode optical fiber.
ITU-TG.655 Characteristics of a non-zero dispersion -shifted single mode fibers optical.
EIA/TIA598 B Col code of fiber optic cables.
IEC 60794-4-10 Aerial optical cables along electrical power lines-family specification for OPGW.
IEC 60794-1-2 Optical fiber cables -part test procedures.
IEEE1138-2009 IEEE Standard for testing and performance for optical ground wire for use on electric utility power lines.
IEC 61232 Aluminum -Clad steel wire for electrical purposes.
IEC60104 Aluminum magnesium silicon alloy wire for overhead line conductors.
IEC 6108 Round wire concentric lay overhead electrical stranded conductors.

Technical Parameter:

Typical design for Single Layer:

Steel tube Specification
Applicable Standards
Item
Unit
Description
Optical Fiber
Material

Stainless steel tape
- ITU-T G.650 / ITU-T G.652
Inner Diameter
mm
(2.6,3.1,3.6)±0.05
- ITU-T G.653 / ITU-T G.655
Outer Diameter
mm
(3,3.5,4.1)±0.05
- IEC 60793
Filling component

Water Repellent, Thixotropic
Aluminum-Clad Steel Wire
Fiber Number

24core G655
- IEC 61232 / ASTM B 415
Elongation
%
Min. 2.0
Aluminum Alloy Wire
Fiber Excess Length
%
0.5-0.7
- IEC 60104 / ASTM B 398

Typical design for Double Layer:

Specification Fiber Count Diameter(mm) Weight (kg/km) RTS(KN) Short Circuit (KA2s)
OPGW-89[55.4;62.9] 24 12.6 381 55.4 62.9
OPGW-110[90.0;86.9] 24 14 600 90 86.9
OPGW-104[64.6;85.6] 28 13.6 441 64.6 85.6
OPGW-127[79.0;129.5] 36 15 537 79 129.5
OPGW-137[85.0;148.5] 36 15.6 575 85 148.5
OPGW-145[98.6;162.3] 48 16 719 98.6 162.3

Typical design for Three Layer:

Specification Fiber Count Diameter(mm) Weight (kg/km) RTS(KN) Short Circuit (KA2s)
OPGW-232[343.0;191.4] 28 20.15 1696 343 191.4
OPGW-254[116.5;554.6] 36 21 889 116.5 554.6
OPGW-347[366.9;687.7] 48 24.7 2157 366.9 687.7
OPGW-282[358.7;372.1] 96 22.5 1938 358.7 372.1

Note:
1.Only a part of Overhead Optical Ground Wire are listed in the table. Cables with other specifications can be inquired.
2.Cables can be supplied with a range of single mode or multimode fibers.
3.Specially designed Cable structure is available on request.
4.Cables can be supplied with dry core or semi dry core

optic cable internet

Applications:

●  Commonly used in newly built overhead power lines.
●  Can meet the requirements of big number of fibers and ultra high voltage(UHV) transmission lines.
● Can provide protection against lightning by transmitting large fault short-circuit current.

Main Features:

1. Stable structure, high reliability.
2. Able to obtain the second optical fiber excess-length.
3. Excellent resistance to distortion and side pressure.
4. Can withstand high mechanical stress, and excellent lighting protection performance.

opgw wire
Supply Ability & Additional Information

Packagingiron-wooden reel

Productivity500000 Meter/Meters per Month

TransportationOcean,Land,Air,Express

Place of OriginChina

Supply Ability500000 Meter/Meters per Month

CertificateISO9001

HS Code8544700000

PortShenzhen,Guangzhou

Payment TypeL/C,T/T,Paypal,others
