Aerial Double Jacket G652d ADSS Fiber Optic Cable
Aerial Double Jacket G652d ADSS Fiber Optic Cable
Aerial Double Jacket G652d ADSS Fiber Optic Cable
Aerial Double Jacket G652d ADSS Fiber Optic Cable
Aerial Double Jacket G652d ADSS Fiber Optic Cable
Aerial Double Jacket G652d ADSS Fiber Optic Cable
Aerial Double Jacket G652d ADSS Fiber Optic Cable
Aerial Double Jacket G652d ADSS Fiber Optic Cable
Aerial Double Jacket G652d ADSS Fiber Optic Cable

Aerial Double Jacket G652d ADSS Fiber Optic Cable

Payment Type:L/C,T/T,Paypal,Cash
Incoterm:FOB,CFR,CIF,EXW,FAS,DDP
Min. Order:1 Kilometer
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
Product Attributes

Model No.ADSS

BrandOEM

Place Of OriginChina

Number Of Cores≥ 10

ApplicationOutdoor Aerial

Fiber TypeG652/G655

No. Of Fiber2~144 cores

Outer SheathHDPE or Anti tracking jacket

Keyword24 core fiber optic cable

Strength MemberKevlar aramia yarn

Span100~1000 M

Waterproofwater blocking type

StandardIEC 6079-1;IEEE 1222-2004

Product NameAerial ADSS FIBER CABLE

Packaging & Delivery
Selling Units: Kilometer
Package Type: wooden spool
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description
Aerial Non-metal Double Jacket G652d adss fiber optic cable

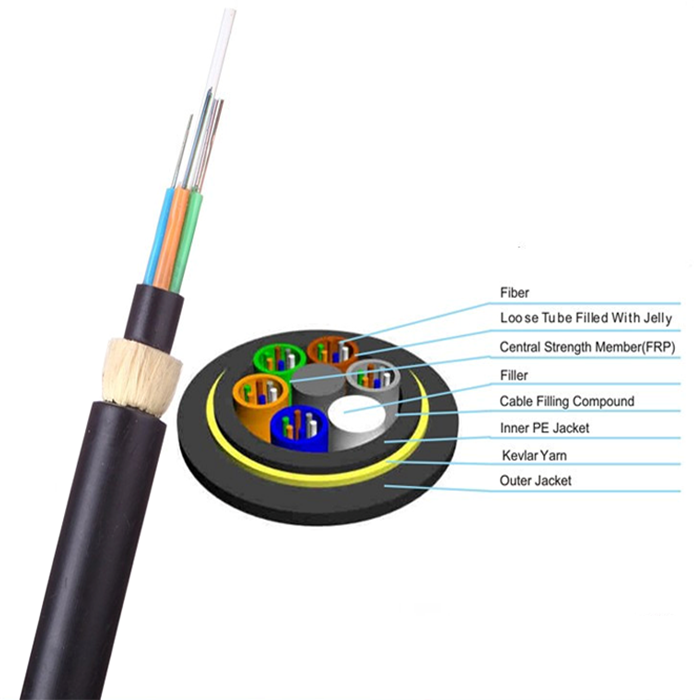

The ADSS optical cable adopts a loose-skinned twisted structure. 250µm optical fiber is sheathed in a loose tube made of a high modulus material, and the loose tube is filled with a waterproof compound. The loose tube (and filler rope) is twisted around a non-metallic central reinforcement core (FRP) to form a compact cable core, and the gaps in the cable core are filled with water blocking grease. The outer core of the cable is extruded with a polyethylene (PE) inner sheath, then stranded with aramid for reinforcement, and finally the extruded polyethylene (PE) outer sheath or tracking resistant (AT) outer sheath.

Product Name:fiberglass optic cable,ofs adss fiber optic cable,test fiber optic cable,fiber optic cable core,adss fiber optic,adss 12 core,ADSS cable price,adss wire,Fiber Optical Cable,fiber fiber optic cable

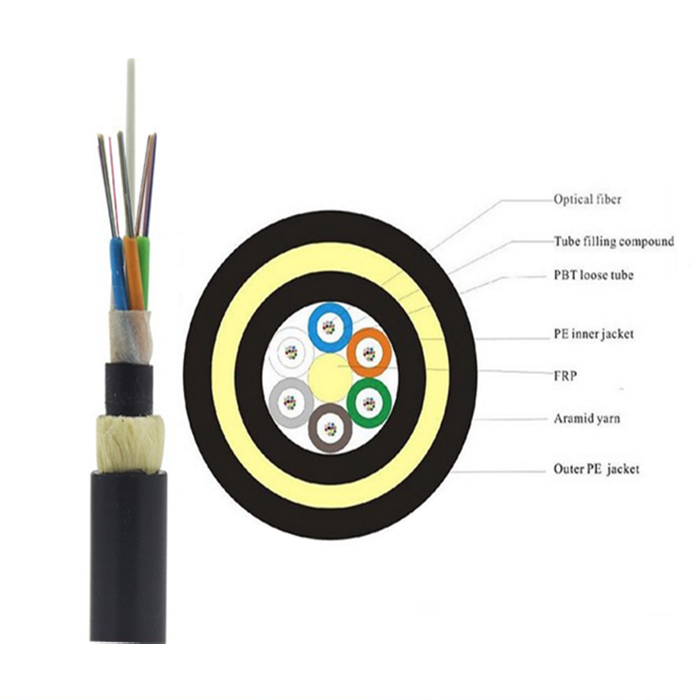

Cable Cross -Section:
fiber optic cable core

Technical Parameters:

Reference outer diameter

(Mm)

reference weight

(Kg / km)

Recommended daily maximum working tension

(KN)

Maximum allowable working tension

(KN)

Breaking strength

(KN)

Tensile element cross-sectional area

(mm2)

Elastic Modulus

(kN / mm2)

Thermal expansion coefficient

× 10-6 / K

Suitable range (m)

Corresponding weather conditions (m)

PE outer sheath

AT outer guard

A

B

C

D

11.8

117

124

1.5

4

10

4.6

7.6

1.8

160

100

140

100

12.0

121

129

2.25

6

15

7.6

8.3

1.5

230

150

200

150

12.3

126

134

3.0

8

20

10.35

9.45

1.3

300

200

290

200

12.6

133

141

3.6

10

24

13.8

10.8

1.2

370

250

350

250

12.8

138

145

4.5

12

30

14.3

11.8

1.0

420

280

400

280

13.1

145

153

5.4

15

36

18.4

13.6

0.9

480

320

460

320

13.5

155

163

6.75

18

45

22.0

16.4

0.6

570

380

550

380

13.8

163

171

7.95

22

53

26.4

18.0

0.3

670

460

650

460

14.4

177

186

9.0

26

60

32.2

19.1

0.1

750

530

750

510

14.6

182

191

10.5

28

70

33.0

19.6

0.1

800

560

800

560

14.8

195

204

12.75

34

85

40.0

20.1

0.1

880

650

880

650

Storage and use temperature: -40 ℃ to + 70 ℃. A

Optical characteristics:

Fiber type

attenuation

(+ 20 ℃)

bandwidth

Numerical aperture

Optical fiber cut-off wavelength

@850nm

@1300nm

@1310nm

@1550nm

@850nm

@1300nm

G.652

≤0.36dB/km

≤0.22dB/km

≤1260nm

G.655

≤0.40dB/km

≤0.23dB/km

≤1450nm

50/125µm

≤3.3dB/km

≤1.2dB/km

≥500MHz·km

≥500MHz·km

0.200±0.015 NA

62.5/125µm

≤3.5dB/km

≤1.2dB/km

≥200MHz·km

≥500MHz·km

0.275±0.015

NA

fiber fiber optic cable
test fiber optic cable
fiber optic

Product Standards:

The ADSS optical cable complies with the IEEE 1222 technical standard and complies with the IEC 60794-1 standard.

Applications:

The design of the ADSS optical cable fully considers the actual situation of the power line, and is suitable for different levels of high-voltage transmission lines. For 10 kV and 35 kV power lines, polyethylene (PE) sheaths can be used; for 110 kV and 220 kV power lines, the distribution point of the optical cable must be determined by calculating the electric field strength distribution and an outer track (AT) outer sheath. At the same time, the amount of aramid fiber and the perfect twisting process are carefully designed to meet the application requirements of different spans.

Features:

• Uninterruptible power erection
• Adopt AT sheath, excellent resistance to tracking
• Light weight and small cable diameter reduce the impact of ice, wind and load on towers and supports
• Large span, maximum span exceeds 1000 meters
• Has excellent tensile properties and temperature characteristics
• Life expectancy is greater than 30 years



Packing: Wooden Spool Protection,Standard delivery length is1~6km/drum or per customer’s requirements.
