Self-Supporting Corning Aerial ADSS Fiber Optic Cable
Self-Supporting Corning Aerial ADSS Fiber Optic Cable
Self-Supporting Corning Aerial ADSS Fiber Optic Cable
Self-Supporting Corning Aerial ADSS Fiber Optic Cable
Self-Supporting Corning Aerial ADSS Fiber Optic Cable
Self-Supporting Corning Aerial ADSS Fiber Optic Cable
Self-Supporting Corning Aerial ADSS Fiber Optic Cable
Self-Supporting Corning Aerial ADSS Fiber Optic Cable
Self-Supporting Corning Aerial ADSS Fiber Optic Cable

Self-Supporting Corning Aerial ADSS Fiber Optic Cable

Payment Type:L/C,T/T,Paypal,Cash
Incoterm:FOB,CFR,CIF,EXW,FAS,DDP
Min. Order:1 Kilometer
Transportation:Ocean,Land,Air,Express
Port:Shenzhen,Guangzhou

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
  • Other information
Product Attributes

Model No.ADSS

BrandOEM

Place Of OriginChina

Number Of Cores≥ 10

ApplicationOutdoor Aerial

Fiber TypeG652/G655

No. Of Fiber2~144 cores

Outer SheathHDPE or Anti tracking jacket

Keyword24 core fiber optic cable

Strength MemberKevlar aramia yarn

Span100~1000 M

Waterproofwater blocking type

StandardIEC 6079-1;IEEE 1222-2004

Product NameAerial ADSS FIBER CABLE

Packaging & Delivery
Selling Units: Kilometer

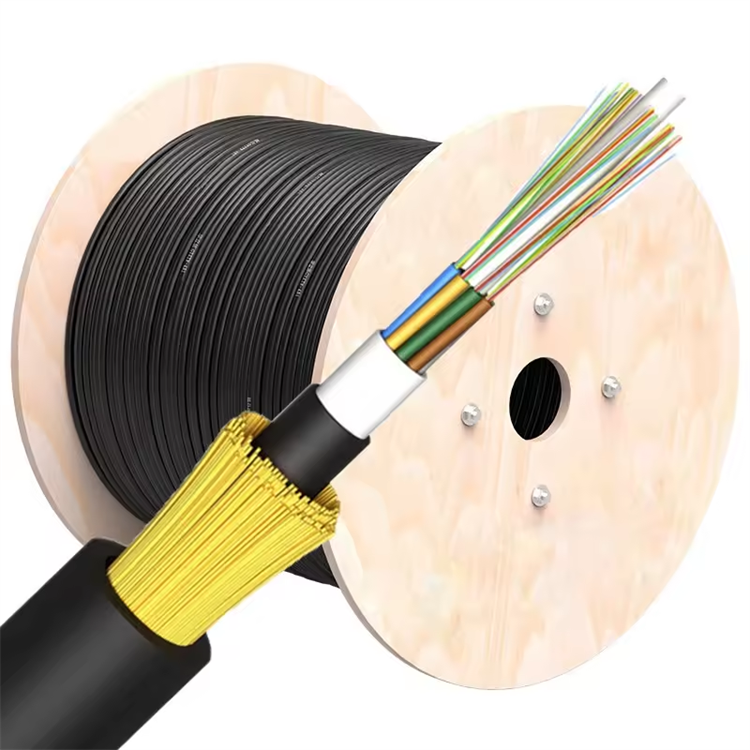

Package Type: wooden spool
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description
Self-Supporting Corning Aerial adss fiber optic cable

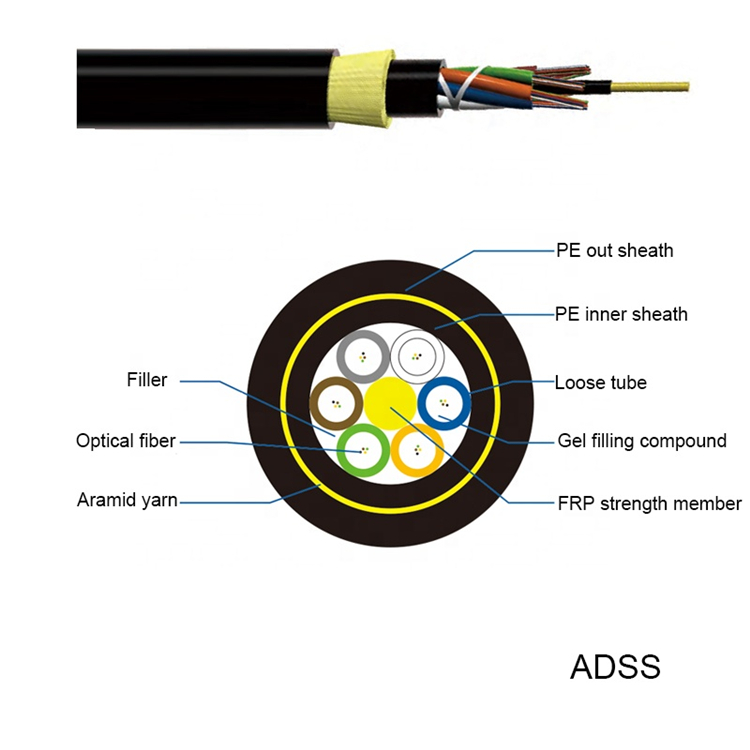

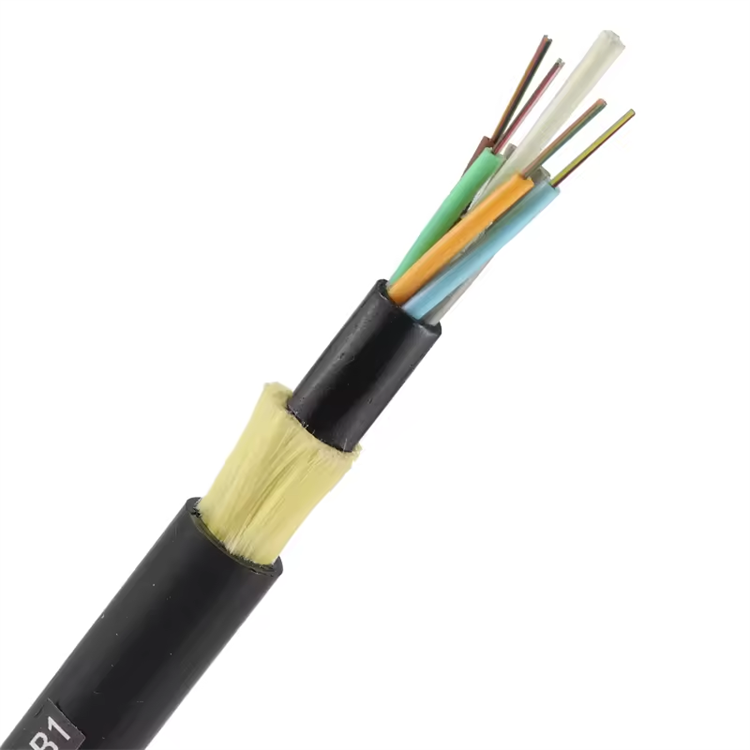

Singlemode adss optic fiber cable is loose tube stranded. Fibers,  250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Product Name:corning adss fiber,fiber optic cable description,adss fiber,test fiber optic cable,ofs adss fiber optic cable,fiberglass optic cable,fiber optic cable cable,fiber cable optic,dielectric fiber cable,afl adss

ofc fiber cable

Fiber Type: G652D; G655C; 657A1; 50/125; 62.5/125; OM3; OM4 As Options

Span: 500-1500M

Main Features:

  1. Long Span Installation & Use
  2. Tailored designs span distances up to 2,500’ (760 m) without interrupting power
  3. Higher count designs utilize 24 fiber per tube to reduce environmental load
  4. Matching pole attachment hardware (dead-ends, suspension clamps)
Fiber Optical Cablefiber optic

Characteristics:

Parameters Specification
Optical Characteristics
Fiber Type G652.D
Mode Field Diameter (um) 1310nm 9.1 ± 0.5
1550nm 10.3 ± 0.7
Attenuation Coefficient (dB/km) 1310nm ≤ 0.35
1550nm ≤ 0.21
Attenuation Non-uniformity (dB) ≤ 0.05
Zero Dispersion Wavelength ( λ0) (nm) 1300 ~ 1324
Max Zero Dispersion Slope (S0max) (ps/(nm2·km)) ≤ 0.093
Polarization Mode Dispersion Coefficient (PMDQ) (ps/km1/2) ≤ 0.2
Cut-off Wavelength (λcc) (nm) ≤ 1260
Dispersion Coefficient (ps/ (nm·km)) 1288~1339nm ≤ 3.5
1550nm ≤ 18
Effective Group Index of Refraction (Neff) 1310nm 1.466
1550nm 1.467
Geometric characteristic
Cladding Diameter (um) 125.0 ± 1.0
Cladding Non-circularity (%) ≤ 1.0
Coating Diameter (um) 245.0 ± 10.0
Coating-cladding Concentricity Error (um) ≤ 12.0
Coating Non-circularity (%) ≤ 6.0
Core-cladding Concentricity Error (um) ≤ 0.8
Mechanical characteristic
Curling (m) ≥ 4
Proof Stress (GPa) ≥ 0.69
Coating Strip Force (N)  Average Value 1.0    5.0
Peak Value 1.3 ~ 8.9
Macro Bending Loss (dB) Ф60mm, 100 Circles, @ 1550nm ≤ 0.05
Ф32mm, 1 Circle, @ 1550nm ≤ 0.05

Specifications:

Parameters Specification
Fiber Count 2 6 12 24 60 144
Loose Tube Material PBT
Fibers per Tube 2 4 4 4 12 12
Numbers 1 2 3 6 5 12
Filler Rod Numbers 5 4 3 0 1 0
Central Strength Member Material FRP FRP coated PE
Water Blocking Material Water blocking yarn
Additional Strength Member Aramid yarns
Inner Jacket Material Black PE (Polythene)
Thickness Nominal: 0.8 mm
Outer Jacket Material Black PE (Polythene) or AT
Thickness Nominal: 1.7 mm
Cable Diameter (mm) 11.4 11.4 11.4 11.4 12.3 17.8
Cable Weight (kg/km) 94 ~ 101 94 ~ 101 94 ~ 101 94 ~ 101 119 ~ 127 241 ~ 252
Rated Tension Stress (RTS) (KN) 5.25 5.25 5.25 5.25 7.25 14.5
Maximum Working Tension (40%RTS) (KN) 2.1 2.1 2.1 2.1 2.9 5.8
Everyday Stress (15-25%RTS) (KN) 0.78 ~ 1.31 0.78 ~ 1.31 0.78 ~ 1.31 0.78 ~ 1.31 1.08 ~ 1.81 2.17 ~ 3.62
Allowable Maximum Span (m) 100
Crush Resistance (N/100mm) Short time 2200
Suiting Meteorological Condition Max wind speed: 25m/s
Max icing: 0mm
Bending Radius (mm) Installation 20D
Operation 10D
Attenuation (After Cable) (dB/km) SM Fiber @1310nm ≤ 0.36
SM Fiber @1550nm ≤ 0.22
Temperature Range Operation (℃) -40 ~ +70
Installation (℃) -10 ~ +50
Storage & Shipping (℃) -40 ~ +60
Application: Self-support Aerial installation

Standards:  Complies with IEEE 1222, IEC 60794-4-20, ANSI/ICEA S-87-640, TELCORDIA GR-20, IEC 60793-1-22, IEC 60794-1-2, IEC 60794
