Model No.: ADSS
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Application: Outdoor Aerial
Fiber Type: G652/G655
No. Of Fiber: 2~144 cores
Outer Sheath: HDPE or Anti tracking jacket
Keyword: 24 core fiber optic cable
Strength Member: Kevlar aramia yarn
Span: 100~1000 M
Waterproof: water blocking type
Standard: IEC 6079-1;IEEE 1222-2004
Product Name: Aerial ADSS FIBER CABLE
| Selling Units: | Kilometer |
| Package Type: | wooden spool |

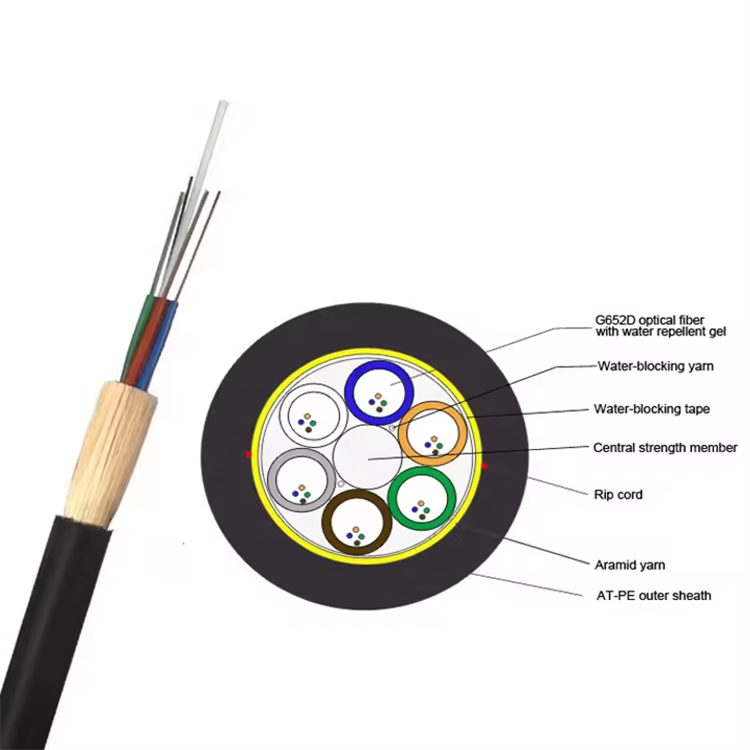

| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
Main Feature:
1．Suitable for use on distribution and high voltage transmission lines with mini spans or self-supporting installation for telecommunication ;
2．Track -Resistant outer jacket available for the high voltage;
3．Line where space potentials up to 35kv;
4．Gel-Filled buffer tubes are S-Z stranded;
5．Instead of Aramid yarn or glass yarn, there is no support or messenger wire required. Aramid yarn is used as the strength member to assure the tensile and strain performance for mini span (usually below 100 meters) ;
6．The fiber counts from 4-288 fibers.
Standards: complies with IEEE 1222, IEC 60794-4-20, ANSI/ICEA S-87-640, TELCORDIA GR-20, IEC 60793-1-22, IEC 60794-1-2, IEC 60794 standards
Mini Span ADSS Cable Technical Parameter:
| Ref. Outer Diameter (mm) | Ref. Weight (kg/km) | Rec. Daily Max. Working Tension (kN) | Max Allowable Working Tension (kN) | Break Strength (kN) | Strength Member CSA (mm2) | Modulus of Elasticity CSA (kN/mm2) | Heat Expansion Coefficient (x10- 6/K) | Suitable Span (NESC Standard,m) | ||||
| PE Jacket | AT Jacket | A | B | C | D | |||||||
| 11 | 110 | 120 | 1.0 | 2.5 | 8 | 3.0 | 6.6 | 2.1 | 120 | 80 | 100 | 80 |
| 11.5 | 115 | 125 | 1.5 | 4 | 10 | 4.5 | 7.3 | 1.8 | 180 | 120 | 150 | 120 |
| 12 | 120 | 130 | 2.5 | 6 | 15 | 7.5 | 8.3 | 1.5 | 250 | 150 | 290 | 150 |
Note:
1. Only a part of Mini Span ADSS Fiber Cable are listed in the table. More can be produce as required .
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Cables can be supplied with dry core or semi dry core
4. Specially designed Cable structure is available on request.
Applications:
Self-support Aerial installation
Packing: Wooden Spool Protection,Standard delivery length is1~6km/drum or per customer’s requirements.
Packaging: wooden spool
Productivity: 15000 Kilometer per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 15000 Kilometer per Month
Certificate: CE/ROHS/ISO9001 /ANATEL
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal,Cash
Incoterm: FOB,CFR,CIF,EXW,FAS,DDP
