Aerial ADSS 48 Core ADSS Fiber Optical Cable

Aerial ADSS 48 Core ADSS Fiber Optical Cable

Payment Type:	L/C,T/T,Paypal,Cash
Incoterm:	FOB,CFR,CIF,EXW,FAS,DDP
Min. Order:	1 Kilometer
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: ADSS

Brand: OEM

Place Of Origin: China

Number Of Cores: ≥ 10

Application: Outdoor Aerial

Fiber Type: G652/G655

No. Of Fiber: 2~144 cores

Outer Sheath: HDPE or Anti tracking jacket

Keyword: 24 core fiber optic cable

Strength Member: Kevlar aramia yarn

Span: 100~1000 M

Waterproof: water blocking type

Standard: IEC 6079-1;IEEE 1222-2004

Product Name: Aerial ADSS FIBER CABLE

Packaging & Delivery

Selling Units:	Kilometer
Package Type:	wooden spool
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

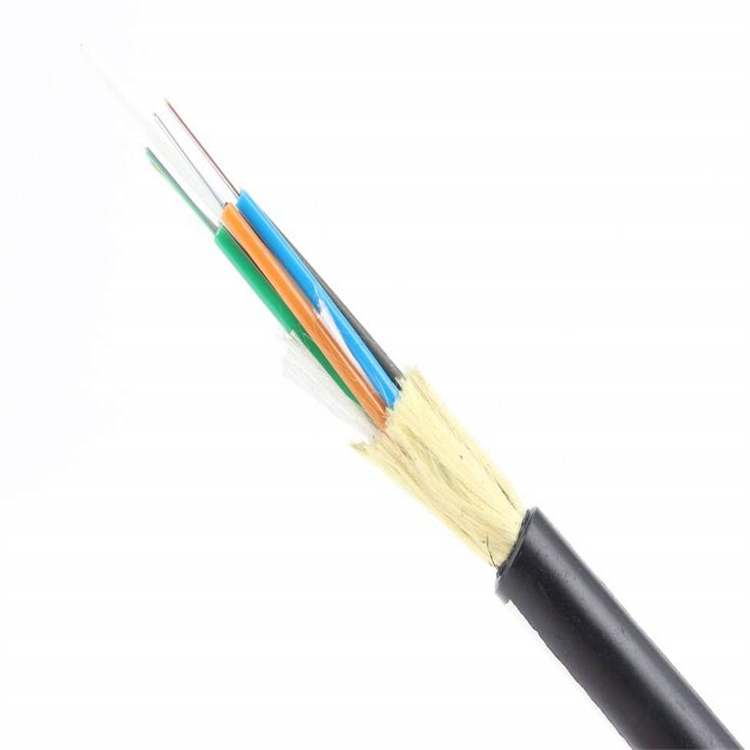

Outdoor Aerial ADSS 48 Core G652D Fiber Optical Cable

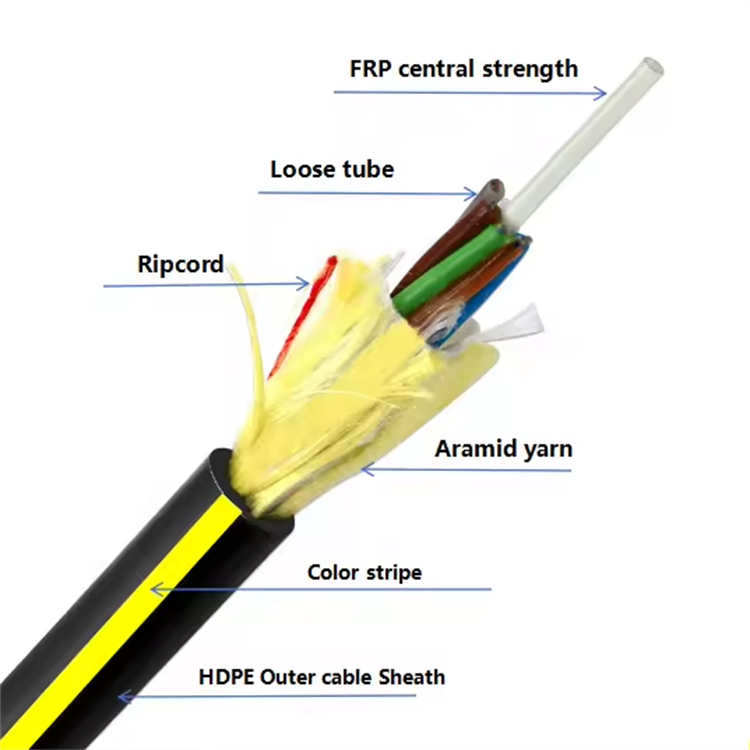

Singlemode adss optic fiber cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Product Name:ADSS cable specification,48 core adss optical cable,fiber cable optic,adss fiber optic cable,adss fiber,corning adss fiber,Aerial Fiber Optic Cable,self supporting aerial fiber cable,optical wire,corning adss,adss cable specification

ADSS Cable Specification

Optic Fiber: G652D or as request
Fiber core: 4 core, 12 core, 24 core, 48 core, 96 core, 144 core or as request.
Compound: Jelly

Loose material: MDPE or as request
Central strengthen member: FRP, non-metal
Inner Sheath material: MDPE or as request

Additional strengthen menber: aramid
Outer Sheath material: MDPE or as request

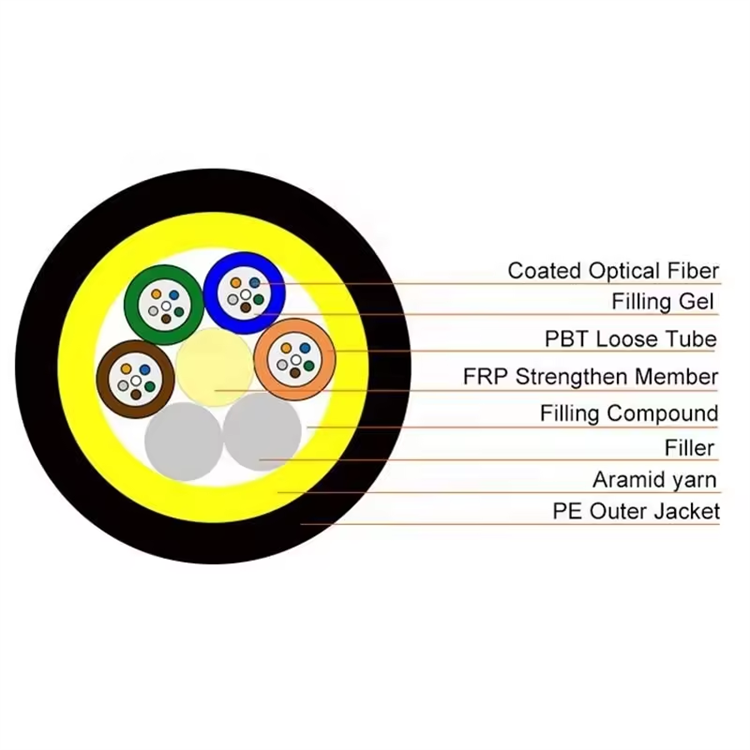

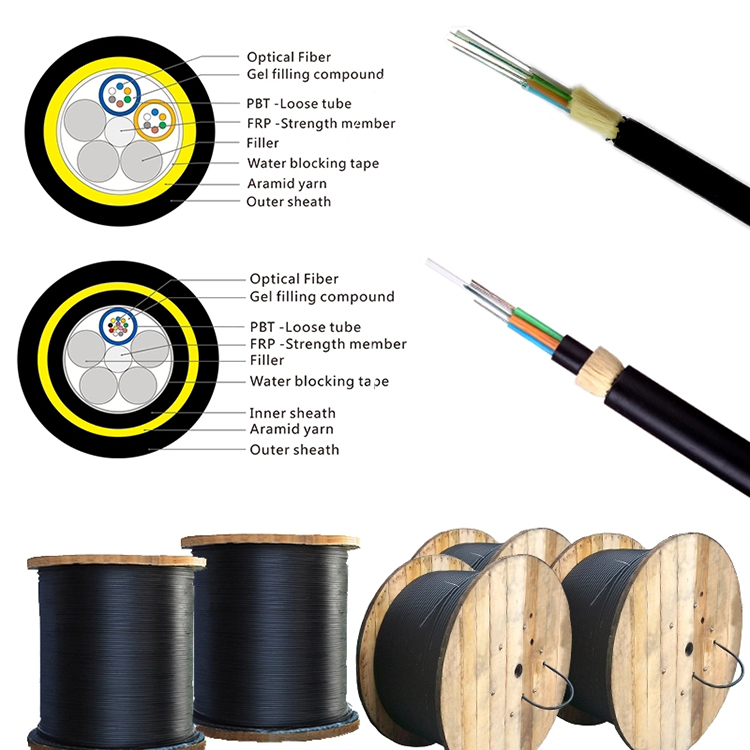

ADSS Fiber Cable Structure

Fillers and loose tubes

optical fiber ribbons

filled with jelly

SZ stranded concentrically around the non-metallic strength member form a cable core, on which is wrapped outside by water blocking tape, then applied a layer of aramid yarn and PE outer sheath.

Technical Parameter:

Span (meter)	Weight(kg/km)	Diameter(mm)	Initial Tension (N)Unload/Load
12 Fibers
50	110	9.0~10.5	892	1479
100	110	9.0~10.5	1338	2043
150	110	9.0~10.5	2232	3286
200	110	12.2	3280	4800
24 Fibers
50	115	9.0~10.5	904	1486
150	115	9.0~10.5	2261	3304
200	115	12.2	3322	4826

Application:

Self-Support Aerial installation,Outdoor;

Feature Characteristics:

Excellent waterproof performance;
Excellent side-press resistance, tensile performance and temperature properties.
Excellent electromagnetic interference performance
Operating temperature: -40℃～﹢70℃

Standard:

Comply with standard IEEE 1222-2004 as well as IEC 6079-1.

Packing: Wooden Spool Protection,Standard delivery length is1~6km/drum or per customer’s requirements.
