Model No.: ABC
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Product Name: indoor outdoor access fiber optic cable
Application: Indoor/Outdoor access building
Use: Telecommunication/FTTH Networks
Fiber Options: G657A1, G657A2
Strength Member: Aramid Yarn
Fiber Count: 1-12 cores
Material Of Jacket: UV and flame resistant LSZH
Non Armored: YES
Certification: ISO9001/CE/RoHS
Keyword: access building fiber cable
| Selling Units: | Kilometer |
| Package Type: | wooden spool |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
singlemode optical fibre optic cable product price list
Product Name:indoor outdoor fiber cable,fiber optic cable wire,cost of ofc cable per meter,2 core optical fiber cable price,armoured fibre cable,fiber 4 core cable price,1000m fiber optic cable price,12f fiber optic cable,corning fiber optic cable,optical fiber price per meter,fibre optic cable underground,288 fiber cable,single mode fiber types,optical fibre cable price list,optical fiber product,200m fibre optic cable,6 fiber cable,singlemode fiber optic cable,indoor Outdoor Fiber Optic Cable,16 core fiber optic cable,2 core single mode fiber optic cable
Cable Cross Section:
Product description（Fiber Optic Cable GYXTY）
GYXTY
structure with central tube
non-metal strength member
PE jacket
Application
duct, non self-supporting aerial installation, groove, tunnel, leading in , cable trench
Characteristics
excellent water-blocking performance
nice tensile and temperature performance
note: other types of fiber can be provided according to the customer's demands
Technical parameter
| fiber | structure | nominal diameter (mm) | nominal weight (kg/km) | long-term/short-term permitted tensile (N) | long-term/short-term permitted crush(N) | static /dynamic bend radius(mm) |
| 2-12 | central tube | 6.9 | 36.5 | 600/1500 | 300/1000 | 10D/20D |
| 20-24 | central tube | 7.2 | 40.1 | 600/1500 | 300/1000 | 10D/20D |
| item | 62.5µm(OM1) 850nm/1300nm | 50µm(OM2) 850nm/1300nm | G.652 1310nm/1550nm | G.655 1550nm/1625nm |
| attenuation of max value (dB/km) | 3.5/1.5 | 3.5/1.5 | 0.36/0.22 | 0.22/0.26 |
| attenuation of typical value (dB/km) | 3.5/1.5 | 3.0/1.0 | 0.35/0.21 | 0.21/0.24 |
Packing and shipping
1 The cables are packed in wooden drums.
2 Standard delivery length is 2km/drum or per customer’s requirements.
3 Sheath Marking
The sheath marking are hot stamped on the sheath at one meter interval with white color. The accuracy of the length marking shall be 0 ~ +1%.Re-marking is yellow color, if necessary.
GT *** xx FIBRE Month/Year XXXXM
GT: Manufacturer’s Name
***: Customer’s name
XX FIBRE: Fiber count
Month/Year: Manufacture date
XXXXM: meter.length

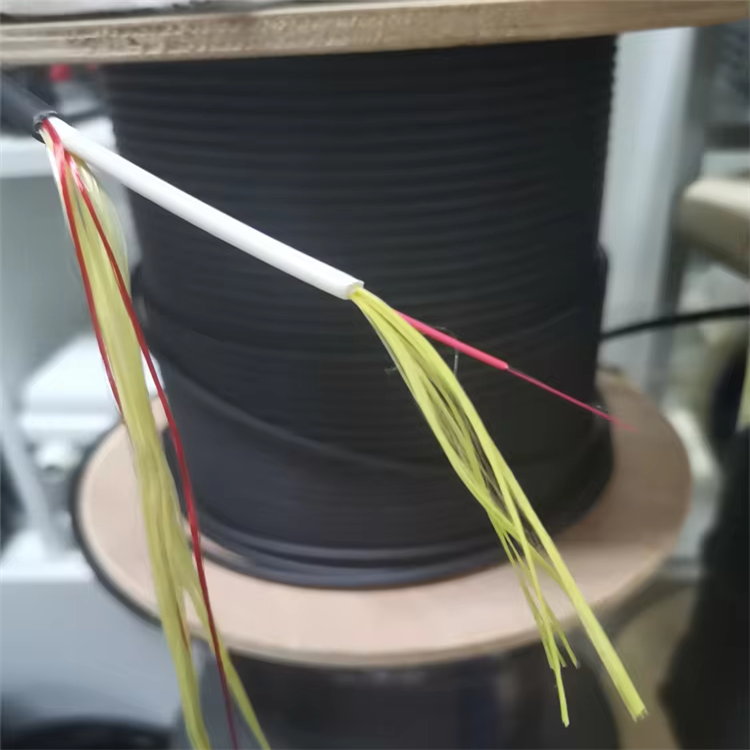

Packaging: wooden spool
Productivity: 15000 Kilometer per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 15000 Kilometer per Month
Certificate: CE/ROHS/ISO9001 /ANATEL
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW,DDU,Express Delivery
