FTTH solution OS2 fiber optic cable core types

FTTH solution OS2 fiber optic cable core types

Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW,DDU,Express Delivery
Min. Order:	1 Kilometer
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: ABC

Brand: OEM

Place Of Origin: China

Number Of Cores: ≥ 10

Product Name: indoor outdoor access fiber optic cable

Application: Indoor/Outdoor access building

Use: Telecommunication/FTTH Networks

Fiber Options: G657A1, G657A2

Strength Member: Aramid Yarn

Fiber Count: 1-12 cores

Material Of Jacket: UV and flame resistant LSZH

Non Armored: YES

Certification: ISO9001/CE/RoHS

Keyword: access building fiber cable

Packaging & Delivery

Selling Units:	Kilometer

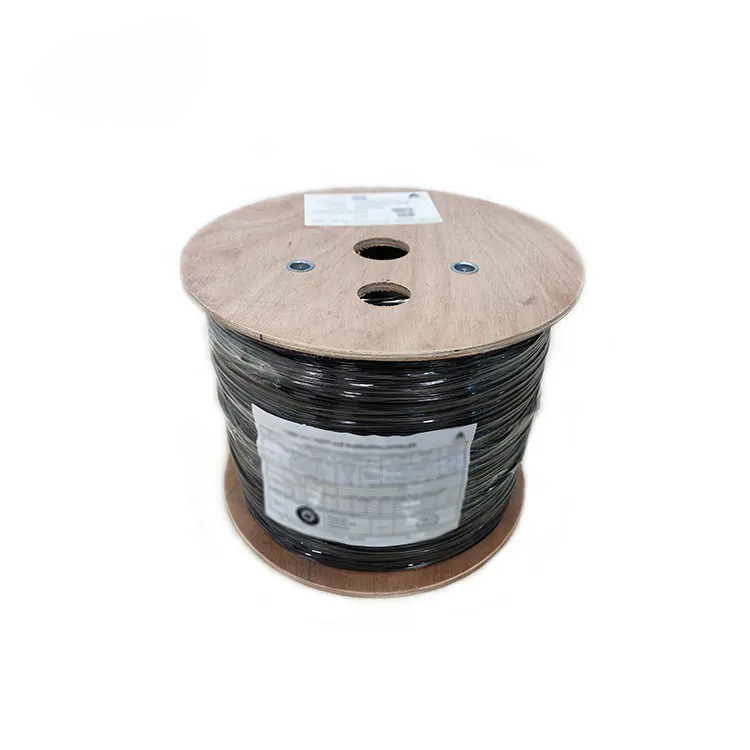

Package Type:	wooden spool

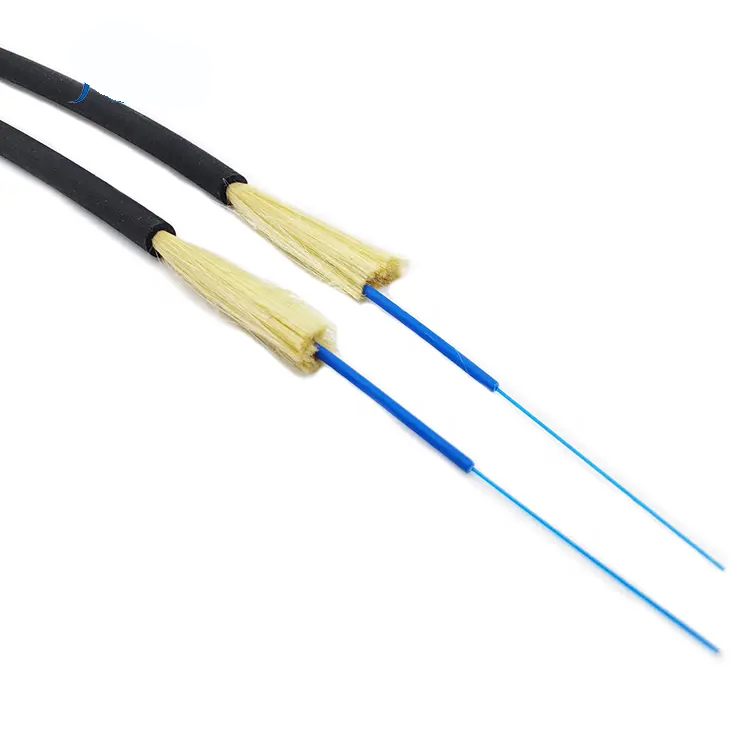

Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

FTTH solution OS2 fiber optic cable core types

Multi-purpose distribution cable use 900μm flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units, and the cable is completed with a PVC or LSZH (low smoke, zero halogen, flame-retardant) jacket.

Product Name:fiber optic cable core types,ftth solution,os2 fiber optic cable,optic types,home fiber optic network,optical fiber 2 core

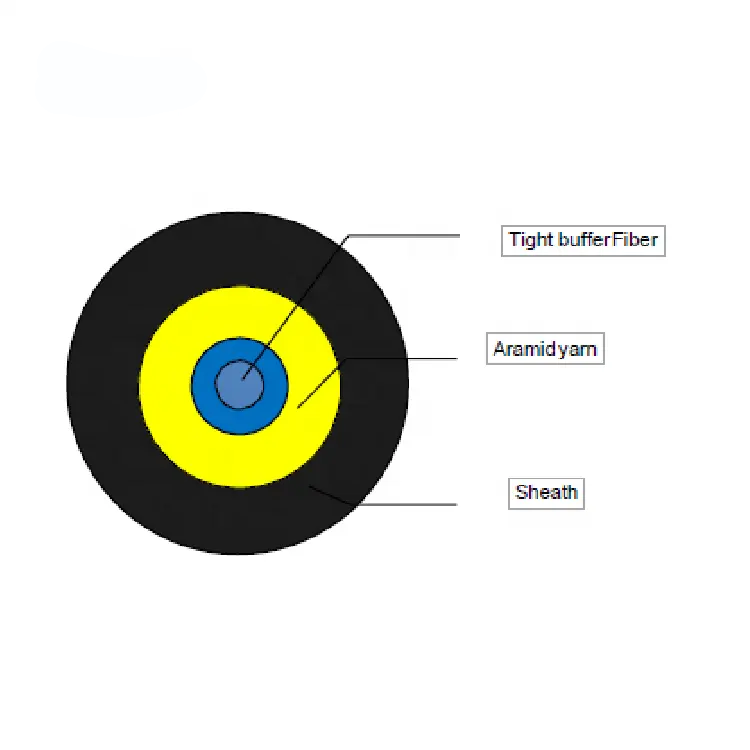

Cable Cross Section:

Technical Data

ITEM	Technical Parameters
Tight buffer fiber Diameter	0.9±0.05mm
Tight buffer fiber Number of cores	1
Strength member	Aramid Yarn
Outer Sheath	PVC/LSZH
Installation Temperature range（℃）	-20~+60
Transport&Storage Temperature range（℃）	-20~+60
Operation Temperature range（℃）	-20~+60

Item	Description
Tight Buffer Fiber	Fiber Count	1FO
	Fiber Type	G.657B3
	Fiber Color	Natural
	Diameter	0.9mm
	Tight Buffer Color	Blue or Customized color
	Material	LSZH
Strength Member	Material	Aramid yarn
Outer Sheath	Material	TPU
	Color	Black
	Thickness	0.7~0.8mm
	Diameter	3.0±0.1mm
Span	50~100m
Installation Sag	1%
Max. Wind Speed	50km/ hour
Tensile	800N
Strain	0.6%
Cable Weight	9.8kg/ km

Products Features:

* Tight buffer fiber easystrip
* Tight buffer fiber has excellent flame-retardant performance

* Aramid yarn for excellent tensile strngth

* Low friction jacket to be chosen

Application:

* Optical fiber jumper or pigtail

* Indoor riser level andplenum level cable distribution

* Interconnect between instruments, communication equipment.

Packing:

1 .The cables are packed in wooden drums andthen in carton box

2 .Standard delivery length is 1km/roll or percustomer’s requirements.

3 .Sheath Marking: The sheath marking are hotstamped on the sheath at one meter interval with white color. The accuracy ofthe length marking shall be 0 ~ +1%.
