Model No.: ABC
Brand: OEM
Place Of Origin: China
Number Of Cores: ≥ 10
Product Name: indoor outdoor access fiber optic cable
Application: Indoor/Outdoor access building
Use: Telecommunication/FTTH Networks
Fiber Options: G657A1, G657A2
Strength Member: Aramid Yarn
Fiber Count: 1-12 cores
Material Of Jacket: UV and flame resistant LSZH
Non Armored: YES
Certification: ISO9001/CE/RoHS
Keyword: access building fiber cable
| Selling Units: | Kilometer |
| Package Type: | wooden spool |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it

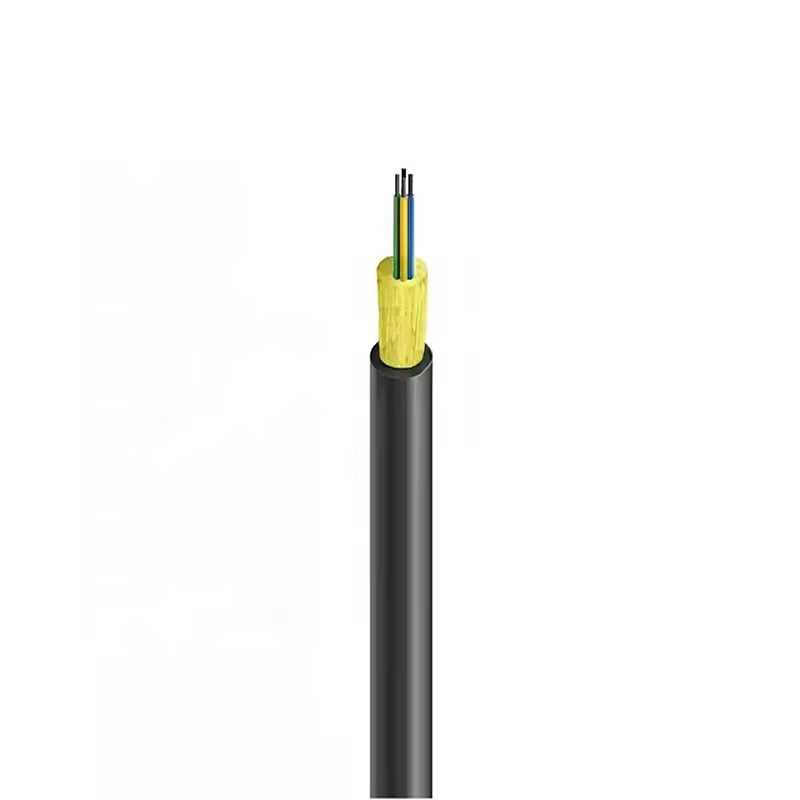

Tight buffer indoor outdoor 200m 4 fiber optic cable

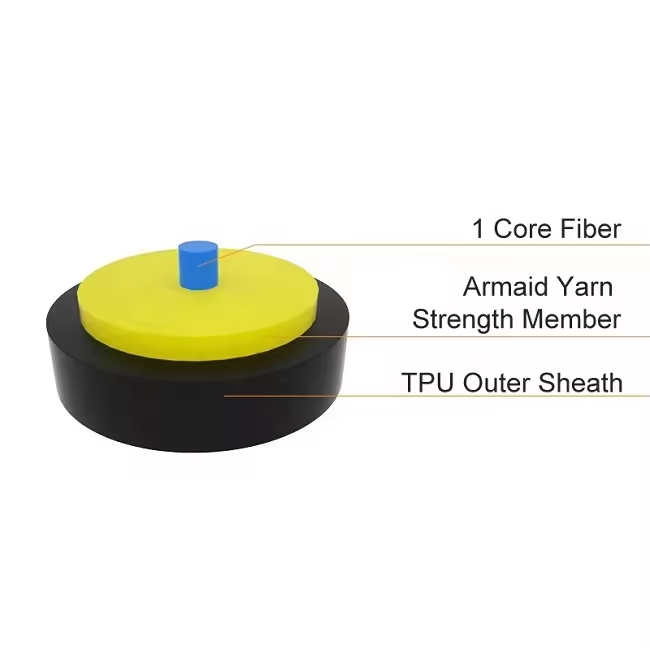

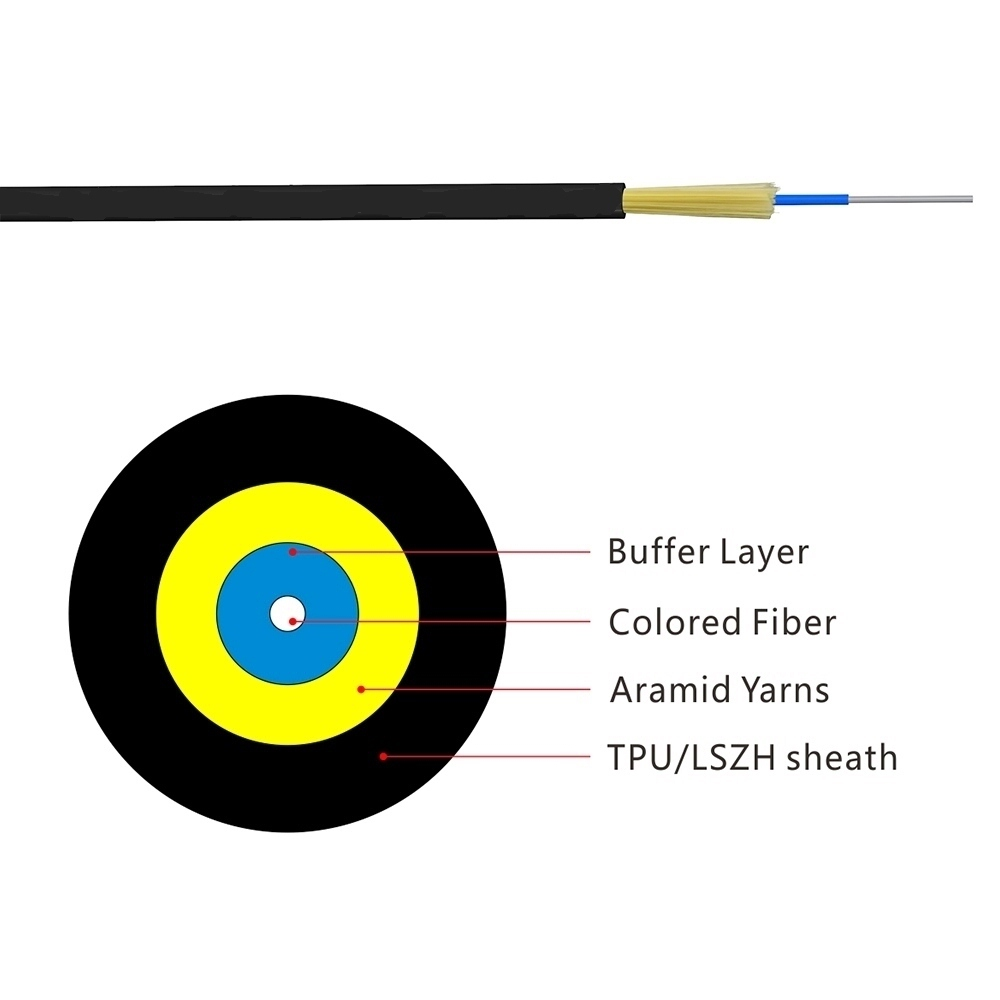

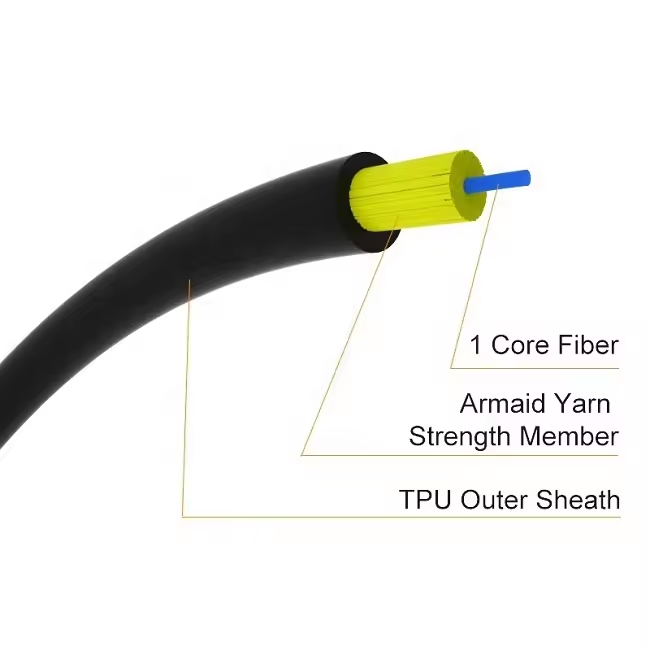

This cable is made by evenly applying strands of Aramid yarns as the strength member over ф900μmtight buffer fibers and then is completed with sheath.Tight buffered Fibers, Dielectric Strength Member and Flame retardant TPU (Thermoplastic Polyurethane).This specification covers the general requirements for fiber optic telecommunication cables.The optical cable laid in the buildings is used in horizontal area and main trunk and is used to connect pigtail or connector, and it’s used for gigabit or ten-gigabit optical fiber communication.
Product Name:4 fiber optic cable,200m fibre optic cable,indoor Outdoor Fiber Optic Cable,ftth solution,home fiber optic network,12 f fiber cable price,2 core single mode fiber optic cable
♦Optical cable with Aramid yarns reinforcement
♦For customer connection
♦Fully dielectric cable
♦Last mile connection
♦LAN and FTTX networks
♦Distribution network
♦ODF connections
♦Inside house OLT connection
♦G.657B3optical fiber
♦ Flame retardant TPU sheathing
| Fiber type | Maximum attenuation for uncabled fibers | |||||
| 1310 nm | 1383 nm | 1490 nm | 1550 nm | 1625 nm | ||
| G.657A1 | Bend insensitive fiber fully compatible with G.652D standard, bend radius 10-15 mm | ≤0.35 | ≤0.35 | ≤0.24 | ≤0.20 | ≤0.23 |
| G.657A2 | Bend insensitive fiber fully compatible with G.652D standard, bend radius 7.5 mm | ≤0.35 | ≤0.35 | ≤0.24 | ≤0.20 | ≤0.23 |
| G.657B3 | Bend insensitive fiber fully compatible with G.652D standard, bend radius 5 mm | ≤0.35 | ≤0.35 | ≤0.24 | ≤0.20 | ≤0.23 |
| Item | Description | |
| Tight Buffer Fiber | Fiber Count | 1FO |
|
| Fiber Type | G.657B3 |
|
| Fiber Color | Natural |
|
| Diameter | 0.9mm |
|
| Tight Buffer Color | Blue or Customized color |
|
| Material | LSZH |
| Strength Member | Material | Aramid yarn |
| Outer Sheath | Material | TPU |
|
| Color | Black |
|
| Thickness | 0.7~0.8mm |
|
| Diameter | 3.0±0.1mm |
| Span | 50~100m | |
| Installation Sag | 1% | |
| Max. Wind Speed | 50km/ hour | |
| Tensile | 800N | |
| Strain | 0.6% | |
| Cable Weight | 9.8kg/ km | |
Packaging: wooden spool
Productivity: 15000 Kilometer per Month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 15000 Kilometer per Month
Certificate: CE/ROHS/ISO9001 /ANATEL
HS Code: 8544700000
Port: Shenzhen,Guangzhou
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW,DDU,Express Delivery
